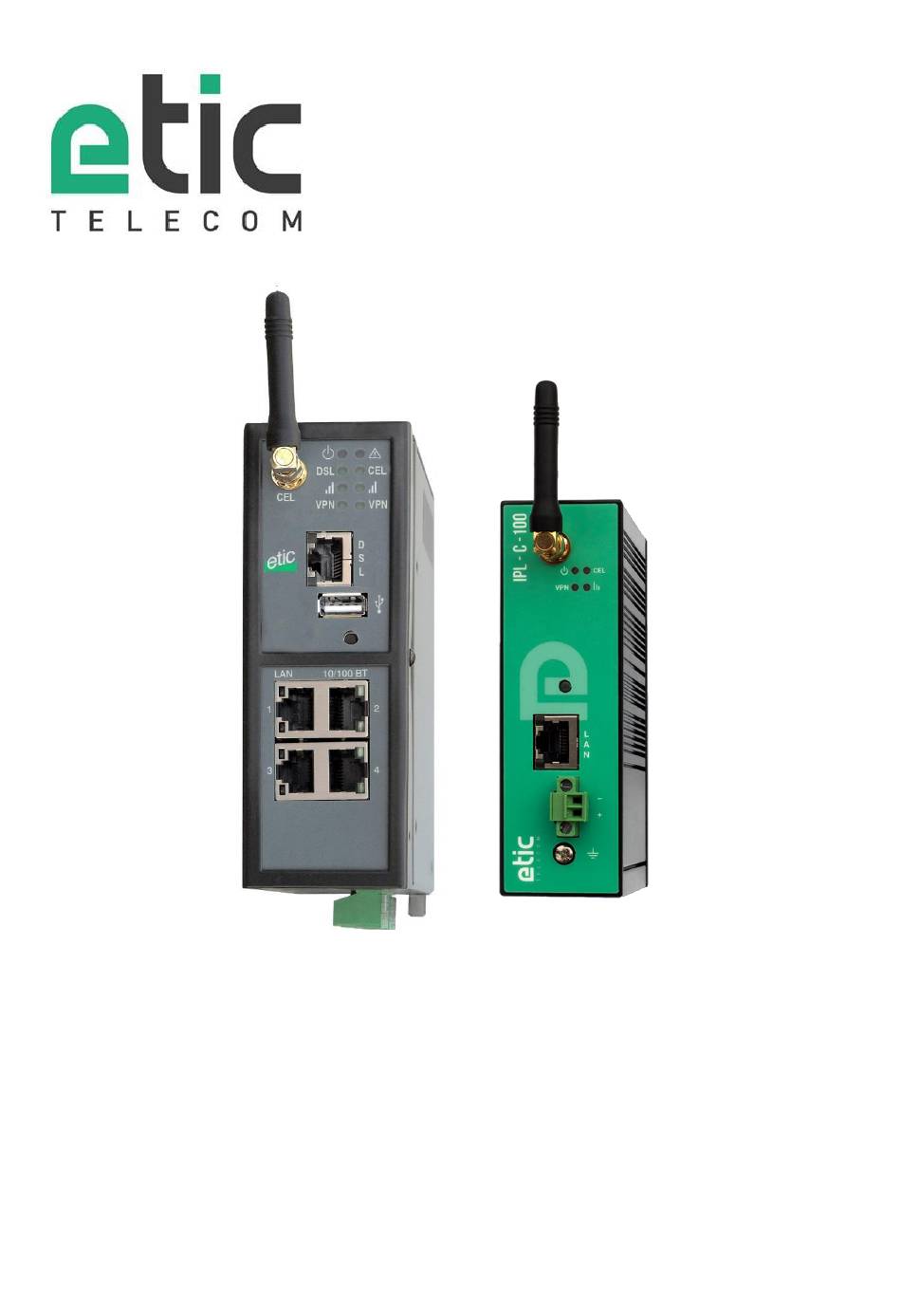

  • Page 1 Router - Firewall _________________ USER GUIDE _________________ DOC_DEV_IPL_User guide_G...
  • Page 2 The IPL Industrial Router family is manufactured by ETIC TELECOM 405 rue Lavoisier 38330 MONTBONNOT SAINT MARTIN FRANCE TEL : + (33) (0)4-76-04-20-05 E-mail : hotline@etictelecom.com web : www.etictelecom.com Page 2 DOC_DEV_IPL_User guide_G...
  • Page 3 UE DECLARATION OF CONFORMITY The manufacturer, ETIC Telecom – 13 chemin du vieux chêne – 38240 Meylan – France, Hereby declares under sole responsibility that the listed devices conform to the Radio Equipment Directive (RED) 2014/53/UE, the Restriction of the use of certain Hazardous Substances (RoHS) Directive 2011/65/UE.
  • Page 4 3.12 0.91 0.95 2.23 1.87 0.91 3.12 Caution: ETIC Telecom has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user's authority to operate the equipment. Page 4 DOC_DEV_IPL_User guide_G...

  • Page 5: Table Of Contents

    DIN rail mounting ............................28 Cooling ................................28 Power supply ..............................29 Earthing ................................29 RS232 serial connexion (IPL-X-220, IPL-X-230) .................... 29 RS485 serial connexion (IPL-X-220) ......................29 RS422 isolated serial connection (IPL-X-260) ....................30 RS485 isolated serial connection (IPL-X-261) ................... 31 Digital input and output..........................

  • Page 6: Overview

    OVERVIEW OVERVIEW Purpose of this manual The present user guide describes the features and the installation of the IPL Industrial Router family. In the rest of the document the term "IPL" is used to designate the product. Products Identification This family of Industrial Router consists of these models:...
  • Page 7 OVERVIEW Models with serial interface code: RS232 RS485 RS422 RS485 isolated isolated In the remainder of this document the term IPL-X is used indifferently for IPL-C, IPL-E, IPL-EW, IPL-A, IPL-AW and IPL-CW. Page 7 DOC_DEV_IPL_User guide_G...

  • Page 8: Specifications

    5 to 95 % relative (non-condensing) Protected against reverse polarity Power supply IPL-X-100: Nominal: 12-24 VDC (min 10 VDC - max 30 VDC) Other IPL: Nominal: 12-48 VDC (min 10 VDC - max 60 VDC) 2 points Phoenix type connector Consumption IPL-E : 2W...
  • Page 9 OVERVIEW WAN network Ethernet RJ45 Auto : 10/100 full & half duplex MDI/MDI-X ADSL2+ and RE-ADSL ADSL ITU G992.5 (ADSL2+ and Reach Extended ADSL) Max data rate : UL : 1 Mbps, DL : 24 Mbps PPPoE : PPP over Ethernet PPPoA : PPP over ATM EoA : Ethernet over ATM RFC2684 Bridged IPoA : Routed IP over ATM, RFC2684 Routed...
  • Page 10 WAN interface: compatible with DYNDNS, No-IP or ETIC DNS LAN interface: DNS relay & server VRRP RFC 3768 protocol Redundancy Multi WAN for backup on some IPL models Security OpenVPN (TLS), IPSEC, L2TP/IPSEC, PPTP VPN tunnel Shared key or X509 certificate...
  • Page 11 OVERVIEW Misc. SNMP SNMP V2 and V3 Supported MIBs: RFC1213-MIB (MIB-2) ADSL-LINE-MIB ETIC-TELECOM-MIB-1 SNMP traps HTTP and HTTPS server Configuration SSH console Import and export configurations Management Reset product to return to factory configuration For option « Collect&Alert » Internal memory : 50 MB Data logger MicroSD card USB port...

  • Page 12: Product Overview

    OVERVIEW Product overview The IPL is both a router, a firewall and a remote access server. It is designed to connect industrial machines on an intranet or the Internet with a high level of security. It provides depending on model :...
  • Page 13 OVERVIEW High availability SCADA system with an IPL-DAC. Remote access server for remote operation A remote user can connect to any device in the system using a PC, tablet or a smartphone. His access rights may be limited according to his identity.

  • Page 14: Ipl Functions

    Confidentiality: Data traffic via the VPN is encrypted. IPSec will be chosen when the IPL needs to establish a VPN with an already installed IPSec VPN server. OpenVPN will be preferred when VPN traffic is routed through intermediate routers to take advantage of the flexibility of this technique.
  • Page 15 In case of a failure the data are transmitted via the backup interface (usually the cellular one). Wi-Fi interface (optional) The IPL can be equipped with a Wi-Fi 2.4 and 5GHz interface able to behave like a client or an access point. SNMP The IPL is an SNMP agent;...

  • Page 16: Installation

    INSTALLATION INSTALLATION Description Dimensions All models except IPL-X-100 IPL-X-100 88 mm 35 mm Din rail axis Page 16 DOC_DEV_IPL_User guide_G...

  • Page 17: Connectors

    INSTALLATION Connectors IPL-E-400 IPL-EW-400 IPL-A-400 IPL-AW-400 Page 17 DOC_DEV_IPL_User guide_G...
  • Page 18 INSTALLATION IPL-C-400 IPL-CW-400 Page 18 DOC_DEV_IPL_User guide_G...
  • Page 19 INSTALLATION IPL-DEC-400 IPL-DAC-400 Cellulaire ant. Ethernet WAN Push button B1 Auxiliary ant. Ethernet Reset push button on the rear pannel 4 pos. screw block 1 digital input 1 digital output Ground terminal Double 2 pos. Screw block Sup. voltage IPL-DAE-400...
  • Page 20 INSTALLATION Serial interfaces IPL-X-220 IPL-X-230 Ethernet Ethernet RS485 (2 wires) RS232 RS232 RS232 IPL-X-260 IPL-X-261 Ethernet Ethernet RS485 isolated RS422 isolated (3 wires) (4 wires) DIP switches DIP switches Page 20 DOC_DEV_IPL_User guide_G...
  • Page 21 INSTALLATION IPL-E-100 IPL-EW-100 Wi-Fi Ethernet WAN Ethernet WAN Push button B1 Push button B1 Ethernet LAN Ethernet LAN 2 pos. screw block 2 pos. screw block Power supply Power supply Reset push button Reset push button on the rear pannel...
  • Page 22 INSTALLATION All models except IPL-X-100 Ground terminal Description Symbol FASTON male lug 6.35 mm Ground terminal Description Symbol M4 screw terminal All models except IPL-X-100 2 positions screw terminal: Supply voltage 1 Position 1 at back – Protected against reverse polarity...
  • Page 23 SMA female 3G et 4G Cellular SMA female To improve the 4G transmission data rate, 2 antennas can be connected (except IPL with Wi-Fi). Wi-Fi Wi-Fi RP-SMA female Reverse polarity connector compliant with Wi-Fi antennas. IPL-A, IPL-DAC, IPL-DAE ADSL RJ45 connector...
  • Page 24 5 positions screw terminal : RS422 isolated Position Signal Function Emission polarity + Emission polarity - Common isolated Reception polarity + Reception polarity - IPL-X-220 et IPL-X-230 RJ45 connector : RS232 To connect a DCE Position Signal Direction Function RJ45 DTR - 108...

  • Page 25: Push-Buttons

    The current configuration is deleted except if it has been saved into a file. Front panel push-button Pressing the PB Function 10 seconds 5 flashes The hotline of ETIC TELECOM is authorized to connect remotely to the router administration server within a 1 hour delay. Page 25 DOC_DEV_IPL_User guide_G...

  • Page 26: Led Indicators

    Not connected or interface disable 1 to 4 Green Connected / Brief flashing when traffic on link IPL-X-220, IPL-X-230, IPL-X-260, IPL-X-261 RS232/RS485 Rx Characters received from the RS232 or RS485/RS422 serial interface Characters transmitted to the RS232 or RS485/RS422 serial interface...

  • Page 27: Safety Instructions

    IEC60950-1 : Limited power circuits and SELV type – §2.2 and 2.5 • IEC62368-1 : ES1 & PS2 The IPL-X-100 contain a non-replaceable lithium-metal battery. To avoid any risk of explosion or leakage of flammable liquid or gas, make sure to: •...

  • Page 28: Din Rail Mounting

    INSTALLATION DIN rail mounting Mounting the unit on the 35 mm horizontal DIN rail Removing the unit from the DIN rail Cooling The product is designed to be mounted on a 35mm DIN rail. To avoid obstructing the airflow around the unit, the spacing must be at least 25 mm above and below, and 10 mm left and right.

  • Page 29: Power Supply

    INSTALLATION Power supply All models except IPL-X-100 : These products provide a dual power inputs allowing a redundancy power supply. The supply voltage must be regulated and strictly between 10 and 60 Volt DC (nominal: 12 – 48 VDC). At power up the inrush current can reach 20 A for 100 µs.

  • Page 30: Rs422 Isolated Serial Connection (Ipl-X-260)

    INSTALLATION RS422 isolated serial connection (IPL-X-260) The polarization and termination resistors can be selected with DIP switches. The termination resistor must be enabled when the product is located at the extremity of the RS422 bus. The polarization resistors must be enabled by one device of the bus.

  • Page 31: Rs485 Isolated Serial Connection (Ipl-X-261)

    INSTALLATION RS485 isolated serial connection (IPL-X-261) The polarization and termination resistors can be selected with DIP switches. The termination resistor must be enabled when the product is located at the extremity of the RS485 bus. The polarization resistors must be enabled by one device of the bus.

  • Page 32: Digital Input And Output

    INSTALLATION Digital input and output To check that the input and the output are IPL router correctly wired : Digital output In the menu, select Digital input isolated Diagnostics > Hardware > Input/Output Non isolated polarized The status of the input is displayed and the output can be switched ON or OFF.

  • Page 33: Connecting To The Adsl Line

    Surge arrester IP address : The IP address assigned by the ISP to the ADSL interface of the IPL can be a fixed or a dynamic public IP address. If it is dynamic, it changes frequently; for instance at each ADSL connection.

  • Page 34: Connecting To The Cellular Network

    The signal attenuation in a usual coaxial cable is 0.2 to 0.4 dB / m, that is to say 2 to 4 dB for a 10 meters long cable. If a coaxial cable must be used to connect the antenna to the IPL, the attenuation in the cable has to be taken into account to calculate the effective RF signal received by the IPL.

  • Page 35: Cellular Service Subscription

    INSTALLATION 13.4 Cellular service subscription The IPL is designed to connect to the LTE-UMTS-GPRS data transmission service like the one used by the tablets. The subscription should also provide the SMS service if SMS alarms are required. A telephone service subscription is not needed.

  • Page 36: Installing Or Removing The Sim Card

    INSTALLATION 13.5 Installing or removing the SIM card All cellular IPL models except IPL-C-100, These models provide two mini SIM card holders. If you use only one SIM card, use the SIM card holder Nr 1 (at left on the pictures).

  • Page 37: Controlling The Conformance Of The Connection

    INSTALLATION 13.6 Controlling the conformance of the connection After installing and setting up the IPL, control the conformance of the connection: Reception level The reception level must be better than -90 dBm (two flashes of the reception level led indicator).
  • Page 38 INSTALLATION All IPL models except IPL-X-100 These models provide a microSD card holder on the top of the product. Installing the SD card: • Power off the IPL. • Remove the anti-steal lid at the top of the product •...

  • Page 39: Preparing The Setup

    When the product is delivered, the IP address of the administration web server is 192.168.0.128. First setup: For the first configuration, we advise to connect the PC directly to the LAN interface of the IPL. Subsequent changes can be made remotely.

  • Page 40: First Configuration

    First configuration Step 1: Create or modify the PC TCP/IP connection Assign to the PC an IP address different but consistent with the factory IP address of the IPL. For the first configuration, assign for instance 192.168.0.1 to the PC.
  • Page 41 PREPARING THE SETUP • Set the password for the Super Administrator and wait for the IPL to reconfigure itself. • Then identify again as Super Administrator Page 41 DOC_DEV_IPL_User guide_G...

  • Page 42: Changing The Configuration Later

    The Home page of the administration server is displayed. Changing the configuration later Thereafter, the IPL administration server is accessible from the local Ethernet interface or remotely through a remote connection at the IP address assigned to the product. By default, the access to the administration server is not allowed through the WAN interface.

  • Page 43: Temporary Return To The Factory Settings

    Temporary return to the factory settings If the IP address of the IPL could not be founded, or if it is impossible to access the administration server, for example, following a configuration error, it is possible to restore the factory settings without losing the current configuration.

  • Page 44: Configuration Steps

    PREPARING THE SETUP Configuration steps To configure the product, we advise to proceed as follows: • Set up the LAN interface • Set up the WAN interface • Set up the routing functions • Set up VPNs • Set up the remote access •...
  • Page 45 405 rue Lavoisier 38330 Montbonnot Saint Martin France Tel : +33 (0)4 76 04 20 00 contact@etictelecom.com www.etictelecom.com...
