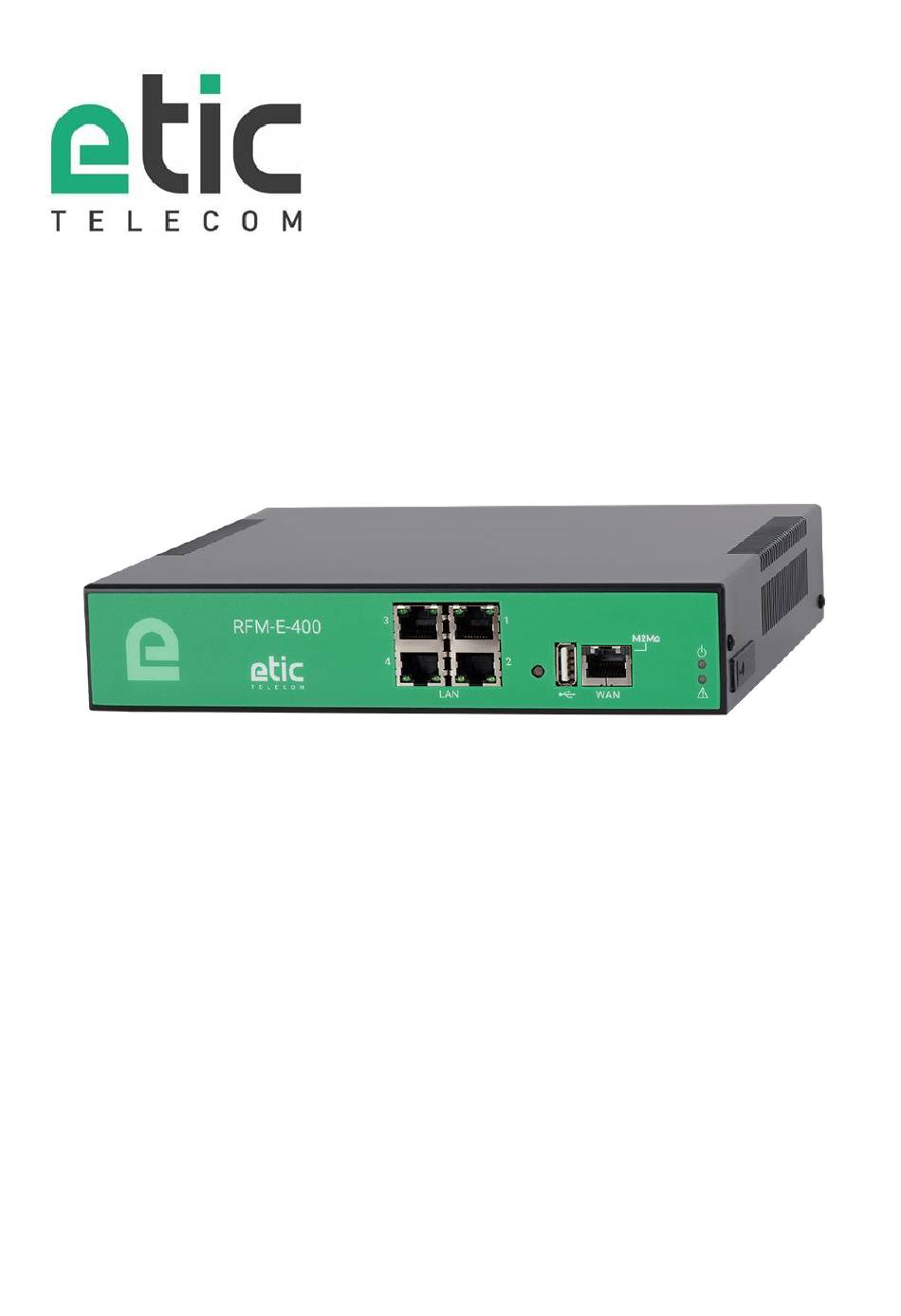

- Page 1 Router Fleet Manager _________________ USER GUIDE _________________ DOC_DEV_RFM_User Guide_A...
- Page 2 The Router Fleet Manager RFM product family is manufactured by ETIC TELECOM 13 Chemin du vieux chêne 38240 MEYLAN FRANCE In case of difficulty in implementing the product, you can contact your reseller, or contact our customer support service: TEL : + (33) (0)4-76-04-20-05 E-mail : hotline@etictelecom.com...
- Page 3 DECLARATION OF CONFORMITY The manufacturer, ETIC Telecom – 13 chemin du vieux chêne – 38240 Meylan – France, Hereby declares under sole responsibility that the listed devices conform to the Radio Equipment Directive (RED) 2014/53/UE, the Restriction of the use of certain Hazardous Substances (RoHS) Directive 2011/65/UE.
-
Page 5: Table Of Contents
TABLE DES MATIERES PRESENTATION ..........................7 Aim of the document ............................7 Product identification ............................7 Specifications..............................8 Product presentation ............................11 Application ............................11 Main features ............................11 General operation principles ....................... 13 INSTALLATION ........................... 15 Description ..............................15 Dimensions ............................ -
Page 7: Presentation
In the remainder of the document, this product is designated simply by the word “RFM”. Product identification The commercial name of the Router Fleet Manager is: RFM-E-400 (Part Number to be mentioned in the orders: 1061000). The main features are summarized below:... -
Page 8: Specifications
PRESENTATION Specifications Main features With feet: 50 X 220 X 220 mm (h, l, p) Dimensions Without feet: 44 X 220 X 220 mm (h, l, p) Max 0.65 kg Weight Metallic Casing IP20 – IEC60529 Storage: -40°/ + 85°C Temperature In operation: -20°/ + 60°C (without the fan) Humidity... - Page 9 PRESENTATION WAN network Ethernet RJ45 Auto : 10/100 full & half duplex MDI/MDI-X LAN network Ethernet RJ45 : 4 ports Auto : 10/100 full & half duplex MDI/MDI-X Routing / @IP / Routing tables IP routing Static rules Address translation (DNAT, SNAT, NAT 1:1) WAN interface: DHCP client or fixed IP LAN interface: DHCP server WAN interface: compatible DYNDNS, No-IP or ETIC DNS...
- Page 10 PRESENTATION Safety OpenVPN (TLS/SSL), IPSEC, L2TP/IPSEC, PPTP VPN tunnel Shared key or X509 certificate Encryption 3DES & AES 128-192-256 Authentication: MD5 & SHA-1 Up to 100 VPN tunnels (mix between & OpenVPN IPSEC possible) Firewall Stateful packet inspection (SPI : 50 rules) Filtering @ IP and ports number Up to 25 users Remote access...
-
Page 11: Product Presentation
RAS is protected, you will also need to enter the administrator's password). NOTE: in this specific case, it is advisable to call the Etic Telecom hotline service for a quicker start. case: This is a new RAS in the fleet (recommended case). - Page 12 PRESENTATION The configuration of the RFM is then done by: Providing the PK (Product key) of the RAS. • Providing the username and password of an administrator (in this case: azer and xxxxxx) • User management: Users (remote sites maintainers) are created in the RFM where their access rights to the various sites are managed.
-
Page 13: General Operation Principles
PRESENTATION RFM allows a user to be attached to an operating group subject to common rules (same remotely managed sites, same rights on remote sites, etc.). Distribution of the site address book to the new M2Me Client (An M2Me Client is provided to each new remote site maintainer): An M2Me Client launching a secure connection to the M2Me server automatically retrieves from the RFM (permanently connected to the M2Me service) its updated list of remote sites as well as the access rights... -
Page 15: Installation
INSTALLATION INSTALLATION Description Dimensions 220 mm 220 mm 44 mm 6 mm Front face LAN Ethernet WAN Ethernet Push button B1 Rear view 110-230 V AC power outlet Push button B2 Page 15 DOC_DEV_RFM_User Guide_A... -
Page 16: Connectors
Push button of the front face B1 Indicator PB push Feature 10 secondes 5 pulses ETIC TELECOM hotline is authorized to establish a remote connection to the RFM within 1 hour. Rear face push Button B2 Indicator PB push Feature... -
Page 17: Safety Instructions
INSTALLATION Safety instructions RFM must be installed by a qualified operator, in a cabinet or computer rack providing an enclosure against fire. RFM must only be connected to equipment that complies with IEC60950-1 or IEC62368-1 standards that meet the following classifications: IEC60950-1 : limited power source and interconnection circuit of following type: TBTS –... -
Page 18: Parametrage
PARAMETRAGE The configuration of the RFM is described in detail in the following document: RFM Setup guide. In case of difficulty, the hotline team (hotline@etictelecom.com // Tel : +33 (0) 4 76 04 20 00) is at your disposal to get started with the RFM 13, Chemin du Vieux Chêne 38240 Meylan - France Tel : +33 (0)4 76 04 20 00...
