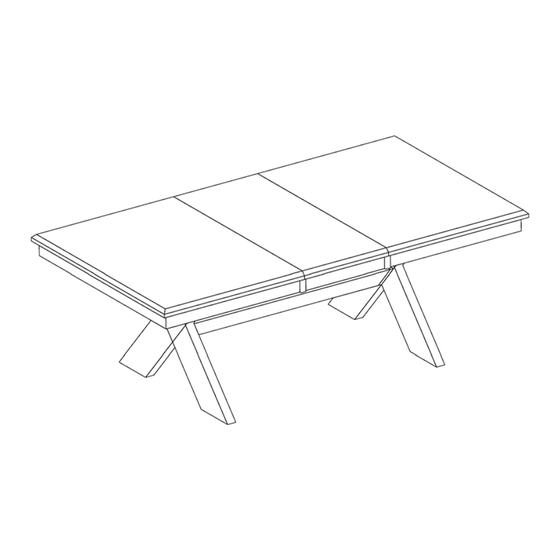

Furniture of America CM3776T Assembly Instructions

Hide thumbs Also See for CM3776T:

Download this manual

Assembly Instructions

CM3776T

ASSEMBLY RATING

Tools Required for Assembly:

The Assembly Rating is a 5-point system that

Allen Wrench

(Included)

shows the degree of effort needed in

assembling a specific product (with 1 being

Wrench

(Included)

easy and 5 being difficult). For some

products, two persons are recommended.

DIFFICULT

EASY

2 PERSONS RECOMMENDED

Page 1 of 5

Rev.14-02-28

Need help?

Do you have a question about the CM3776T and is the answer not in the manual?

Page 1 Assembly Instructions CM3776T ASSEMBLY RATING Tools Required for Assembly: The Assembly Rating is a 5-point system that Allen Wrench (Included) shows the degree of effort needed in assembling a specific product (with 1 being Wrench (Included) easy and 5 being difficult). For some products, two persons are recommended.
Page 2 Page 2 of 5...
Page 3 Before you begin, please read Page 2 of “Assembly and Care Advice”. And remember, do not tighten until each step is completed or instructed. Parts List Hardware List #1 x 1 pc #A x 8 pcs Table Top Flat Washer 5/16” #B x 8 pcs #2 x 2 pcs Lock Washer 5/16”...
Page 4 Align the two pre-drilled holes of the leg support rail (#3) onto the two pre-drilled holes of the leg (#2). Step 1 Prepare two bolt assemblies by inserting FIRST the lock washer (#B) onto the bolt (#D) and then the flat washer (#A) onto the SAME bolt (#D), in that order.
Page 5 To extend the table, unlock the two tension-lever locking Step 3 latches located under the table. Once unlocked, slide outward on both ends of the two- piece table top until there is sufficient opening for the table leaf (#4). III. Carefully place the table leaf (#4) onto the open space of the table top (#1).
