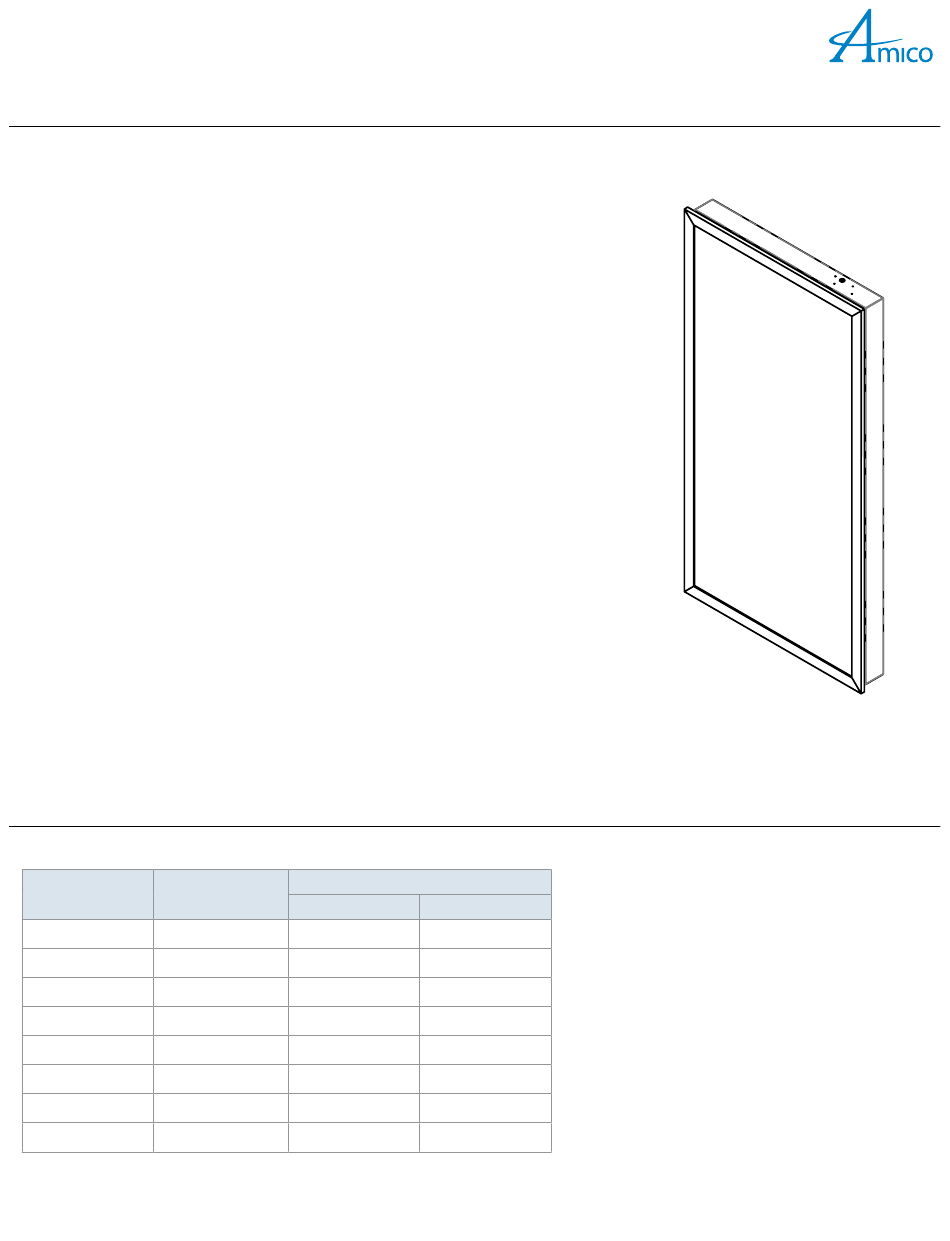

Amico MRI Series Installation Manual

Installation Guide
RGB LED Illuminated Image Wall Fixture
MRI Compatible
Important Safety Instructions
When using electrical equipment, basic safety precautions should always be
followed including the below:
Read And Follow All Safety Instructions
Warning: This luminaire must be installed in accordance with the NEC
1.
or your local electrical code. If you are not familiar with these codes and
requirements, consult a qualified electrician. Attention : Ce luminaire doit être
installé conformément au NEC ou à votre code électrique local. Si vous n'êtes
pas famil- ier avec ces codes et exigences, consultez un électricien qualifié.
Warning: This equipment is not for use in hazardous combustible atmo-
2.
spheres as defined by the National Electrical Code. Avertissement : Cet
équipe- ment ne doit pas être utilisé dans des atmosphères combustibles
dangereuses telles que définies par le National Electrical Code.
3. Danger: Risk of shock - Disconnect power before installation.
Danger : Risque de choc – Couper l'alimentation avant l'installation.
4. Do not install insulation within 76 mm (3 in) of any part of this luminaire.
Ne pas mettre l'isolant a moins de 76 mm (3 po.) De toute partie du luminaire.
5. Dry locations only. Pour emplacements secs seulement.
6. Access behind wall required. Acces requis derriere le mur.
7. Inherently protected. Protection inherente.
8. This luminaire must be mounted or supported independently of an outlet
box. Ce luminaire ne doit pas être monté sur une boîte de sortie ni supportéî par
une telle boîte.
Save These Instructions For Future Reference
Installation
Table 1 - Dimensions
Part Number
Dimensions
1-07-000013 See Diagram 1
1-07-000140 See Diagram 1
1-07-000141 See Diagram 1
1-07-000142 See Diagram 1
1-07-000143 See Diagram 2
1-07-000144 See Diagram 2
1-07-000145 See Diagram 2
1-07-000150 See Diagram 2
Cutout Dimensions
Rough-in
Width (inches)
47"
47"
47"
47"
23"
23"
23"
23"
Step 1:
Turn off the power supply.
Height (inches)
Step 2:
89"
Create a rough opening in the intended mounting
89"
location. The rough opening should be 4 1/2" from
finished floor for standard 4" toe kick. Reference to
89"
table determine the correct rough in Table 1.
89"
Step 3:
89"
Remove the removable frame assembly by lifting it
up and off of the 8 latch clips. Refer to Diagram 3.
89"
Set the assembly aside in a safe and clean place.
89"
Step 4:
89"
Remove the 22 Phillips head screws securing the
mounting frame and secondary lens to the wall box.
Lighting Solutions
RGB LED Illuminated Wall Fixture
*Consult factory for custom sizes
