Install the drywall directly over the rough-in paper.
1
NOTE: It is suggested to use your own method in
locating the center of the aperture hole.
Select your desired method of cutting either
2
using a hand saw or hole saw to cut an opening
in the ceiling by using the provided template.
After selecting the desired method of cutting,
3
cut out a 4.33" diameter hole in the mounting surface.
CAUTION:
Do NOT cut a hole that exceeds or that is larger
than the paper opening.
6
Turn on the power and slide the CCT Selection Switch to test the light.
7
BEFORE INSTALLATION:
On the back of the J-BOX, slide the CCT Selection Switch and choose from five available
color temperatures: 2,700K; 3,000K; 4,000K; 5,000K; and 6,000K.
•Test results from each CCT Selection to determine which brightness level suits your room best.
•The light will use the preferred setting whenever you turn on the switch.
•Turn off the light switch and continue with the installation.

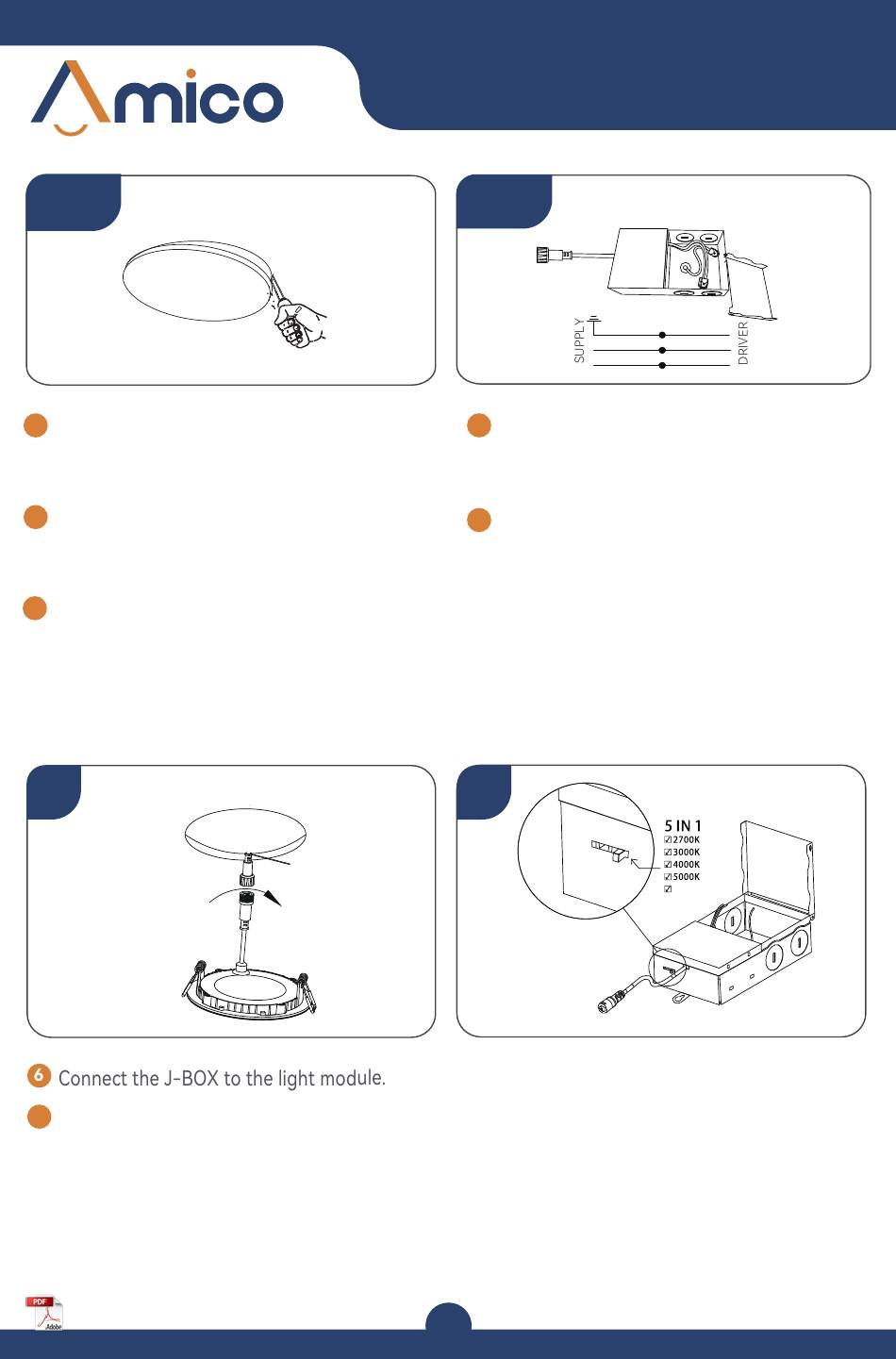

HOW TO INSTALL
4-5
GROUND
LINE
COMMON
Make sure all POWER IS TURNED OFF at the
4
electrical source to the location in which you
are mounting the luminaire.
Remove the cover of the provided J-BOX and
5
insert wire nuts to make connections with
power supply. Insert splices in J-BOX before
concealing the cover.
7
05
GREEN
BLACK
WHITE
6000K
