T&S BL-5715-01 Quick Start Manual

Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
10 5/8"
270mm
203mm
Adjustable From
7 3/4" to 8 1/4"
[197mm to 210mm]
Product Specifications:

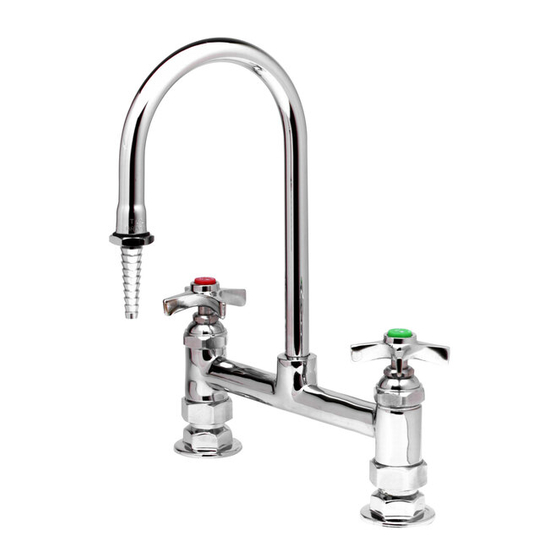

8" Deck Mount Mixing Faucet, Quarter-Turn Eterna Cartridges w/ Spring
Checks, 4-Arm Lab Handles, Swivel/Rigid Gooseneck, Serrated Tip Outlet &
1/2" NPT Female Inlets
Drawn: MRC Checked:
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690

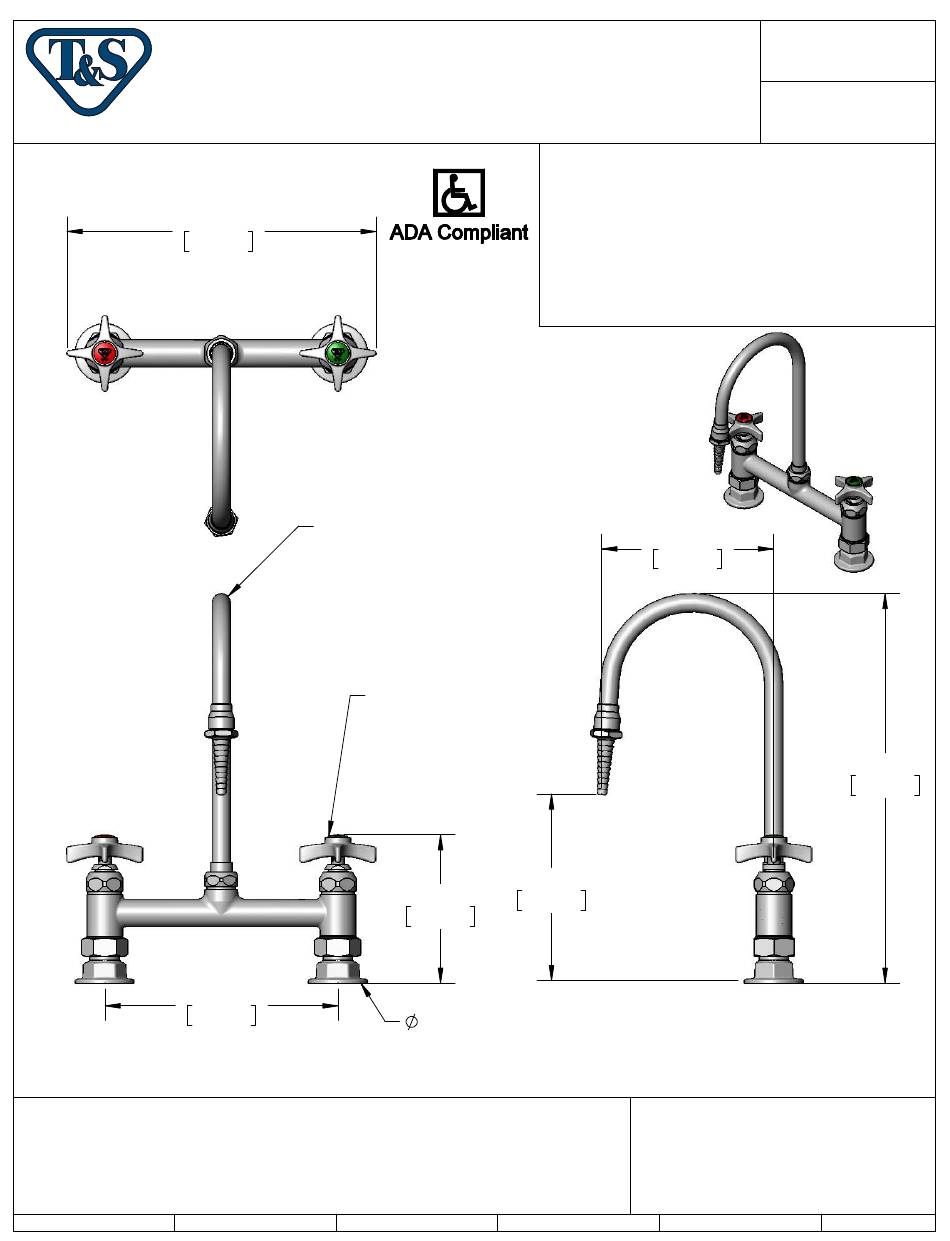

Swivel / Rigid Gooseneck
w/ BL-5550-04
Serrated Tip & Washer.
Converts to Rigid w/
014200-45 Lock Washer
(Included)
Quarter-Turn
Eterna Cartridges
w/ Spring Checks &
4-Arm Lab Handles w/
Color Coded Indexes
8"
JRM Approved:
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
6 7/16"
5 1/8"
163mm
130mm
2" [51mm]
Flanges w/
1/2" NPT
Female Inlets
JHB Date: 09/11/17
Model No.
Item No.
__________________________Date_________
5 7/8"
150mm
Product Compliance:
ASME A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
Scale: 1:4
BL-5715-01
13 3/8"
340mm
Sheet: 1 of 2
