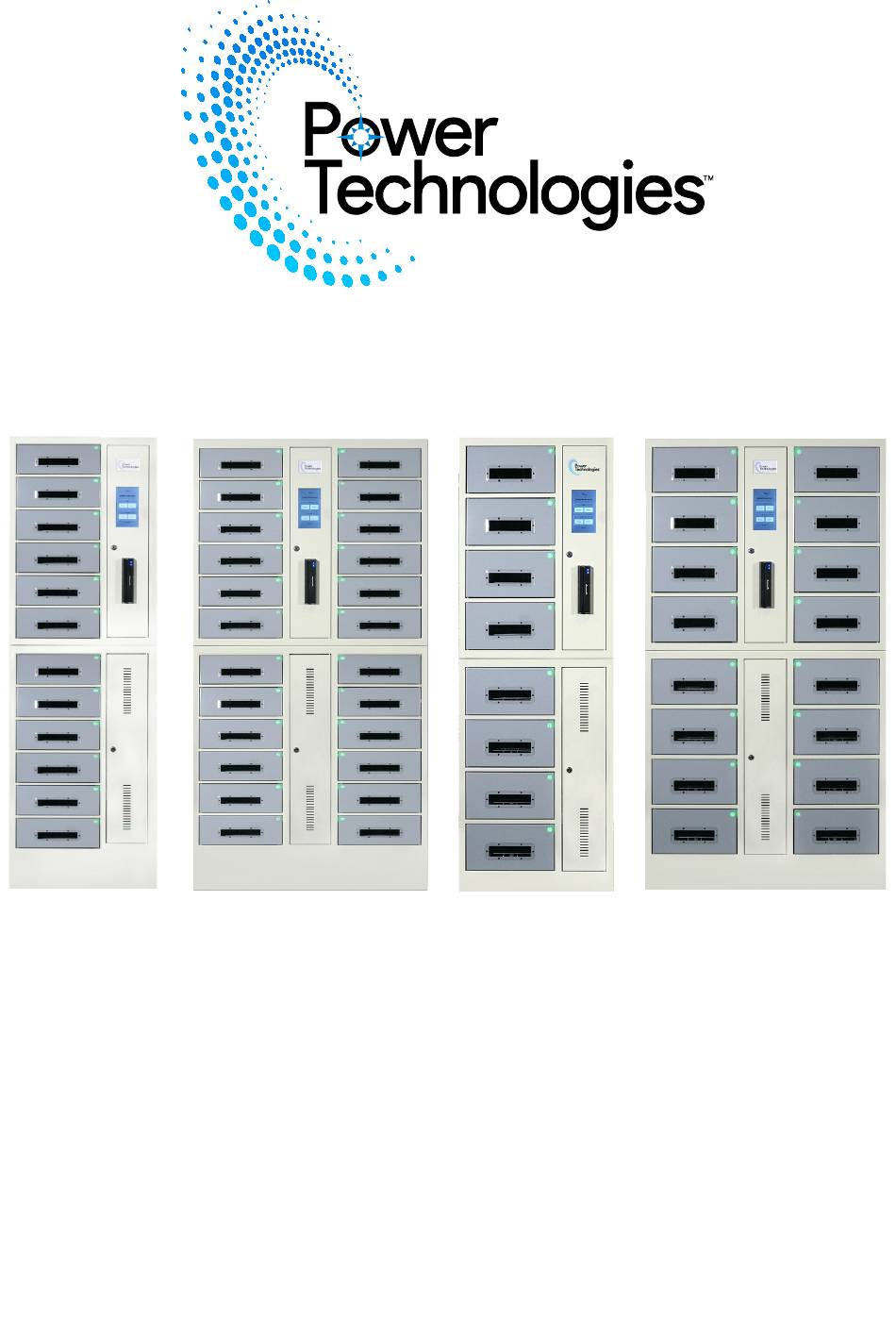

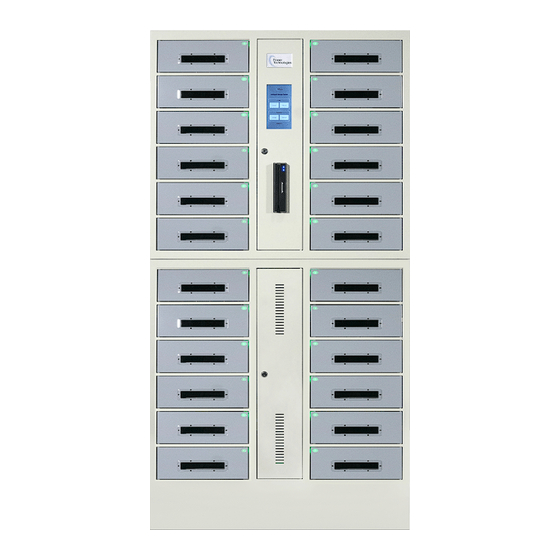

- Page 1 SC-LOCKER-24 CSC-LOCKER-8 CSC-LOCKER-16 SC-LOCKER-12 AC/SC/CSC-LOCKER 8/12/16/24 BAY SECURE RFID CHARGING LOCKERS USER MANUAL...
- Page 2 Quick Start: Operation With Card Step-1: Press “Storage” under CARD. Step-2: Place or swipe CARD on Card Reader Step-3: Press “Take out” under CARD Step-4: Place or swipe CARD on Card Reader 42035 Zevo Drive Temecula, CA 92590 | 888-650-4488 | www.powertechnologies.com PT-AC-LOCKER_Firmware_Rev2023-11...
- Page 3 Quick Start: Operation With Passcode Step-1: Press “Storage” under Password. Step-2: Input a 4-Digit Password Step-3: Press “Take out” under Step-4: Press the bay you Step-5: Input your Password Password would like to access 42035 Zevo Drive Temecula, CA 92590 | 888-650-4488 | www.powertechnologies.com PT-AC-LOCKER_Firmware_Rev2023-11...
- Page 4 Changing Admin Passcode Step-1: Press & hold the top left corner for Step-2: Enter the Admin Password 3 seconds support@powertechnologies.com for your Factory Default Password) Step-3: Access settings by Step-4: Press “PASSWORD” Step-5: Input both old & new pressing “Gear” icon Passwords 42035 Zevo Drive Temecula, CA 92590 | 888-650-4488 | www.powertechnologies.com PT-AC-LOCKER_Firmware_Rev2023-11...
- Page 5 Reviewing Access Data Step-1: Press & hold the top left corner for 3 Step-2: Enter your Admin Password seconds Step-3: View log by pressing “NOTE” icon Step-4: Review Access Data 42035 Zevo Drive Temecula, CA 92590 | 888-650-4488 | www.powertechnologies.com PT-AC-LOCKER_Firmware_Rev2023-11...
- Page 6 Adjusting Single Bay Settings Step-1: Press & hold the top left corner Step-2: Enter your Admin Password for 3 seconds Step-3: Press the Bay you would like to Step-4: Adjust parameters modify - SINGLE OPEN Opens Bay once - SET TO DAMAGE Marks Bay as Damaged and unaccessible by users - MODIFY LOCK PLATE ID Allows Bay to be named - SINGLE CLEAN Clears Bay Access Data 42035 Zevo Drive Temecula, CA 92590 | 888-650-4488 | www.powertechnologies.com...
-
Page 7: Admin Options
Admin Options Step-1: Press & hold the top left corner Step-2: Enter your Admin Password for 3 seconds Step-3: Press the Bay you would like Step-4: Adjust parameters to modify - ADMINISTRATOR CARD Sets - CABINET LIST Toggles view of - PROMPT TONE Toggles Voice up a master access card Bay Number... -
Page 8: Troubleshooting
Troubleshooting The power is out and I need access I don’t see the main menu. Open the Upper and Lower Access Door Lock Screen Saver activated; Press the screen with key. Then, Push down on each Release lever to open Bays. A User no longer remembers password Someone exited the App Follow the instructions for Single Open, then... -
Page 9: Background Management
Background Management Background management : Long press the upper left corner or the powertechnologies logo and the following picture will appear, enter the management password or use the management card, click SUBMIT to enter the setting page. (See section on setting Admin card or password for detailed instructions) The settings are as follows: 1. - Page 10 Record Step-1: Click search icon, filter the record list. 1) Records completed: Whether to display the records of the completed access process. 2) ALL CARD Password: Filter by access method. Step-2: Click on the above circled icon , if it is connected to Wi-Fi, enter the email address to share and share it (Note: Basic settings->EMAIL needs to be configured) 42035 Zevo Drive Temecula, CA 92590 | 888-650-4488 | www.powertechnologies.com PT-AC-LOCKER_Firmware_Rev2023-11...
-
Page 11: Detailed Settings
Detailed Settings ADMINISTRATOR CARD Shows code of Admin card and allow access to add additional admin cards. FULL CLEAN FULL OPEN Opens all bays and Opens all bays and maintains last resets last setting. setting for each bay USE CAP CABINET LIST: NO DISPLAY Defines the maximum... - Page 12 Detailed Settings Step-1: ADMINISTRATOR CARD Enter this page, scan the card on the card reader, and the card information will be added automatically. Click on a piece of information in the list to delete. Step-2: • SCROLL DIRECTION: FULL OPEN Displays the scrolling direction of the list All locker doors will be opened, save previous (VERTICAL, HORIZONTAL).
-
Page 13: Mode: Vertical
Detailed Settings SCROLL DIRECTION: When HORIZONTAL, ARRANGEMENT MODE can be set. The picture below shows ARRANGEMENT MODE: VERTICAL The picture below is ARRANGEMENT MODE: HORIZONTAL 42035 Zevo Drive Temecula, CA 92590 | 888-650-4488 | www.powertechnologies.com PT-AC-LOCKER_Firmware_Rev2023-11... -
Page 14: Step-5: Open Mode
Detailed Settings Step-5: OPEN MODE CARD AND PASSWORD - CARD ONLY When OPEN MODE: CARD AND PASSWORD, you can choose whether to enter the password twice for confirmation, and you can modify the password length (password length: 4, 5, 6) Step-6: PRESET LISTS Whether to use the default list When PRESET LISTS: ON, click MANAGE LISTS to edit the list, as follows:... - Page 15 Detailed Settings 4) Swipe the card on the management page to C. “123460” is a card added before opening the automatically pop up the process of adding a pre-stored list. At this time, although the card card: enter the name to add information is displayed, it will not be enabled D.
-
Page 16: Exit Application
Detailed Settings Click the list data, if the card is not used, it will be selected, click “IMPORT”, and the selected card will be added to the selected group 3. DEVICE STORAGE MODE NO NEED TO SET 4. TO PRE-ASSIGN - PASSWORD MODE NO EFFECT Step-7: BASIC SETTINGS BACKGROUND... -
Page 17: Firmware Update
Firmware Update Thank you for choosing the Power Technologies AC/SC/CSC-LOCKER Series Charging Lockers. The Firmware controlling your Locker may be out of date and can be updated easily by following all the steps in this guide. Please review this guide entirely before starting the update process. - Page 18 Exiting App Step-1: Step-2: Press & hold the top left corner for Enter the Admin Password or scan 3 seconds your Administrator Card Step-4: Press “EXIT APPLICATION” Step-3: Access settings by pressing “Gear” icon 42035 Zevo Drive Temecula, CA 92590 | 888-650-4488 | www.powertechnologies.com PT-AC-LOCKER_Firmware_Rev2023-11...
- Page 19 Un-Installing the App Step-6: Step-7: Click on the apps to get Step-5: Open the system settings Open up the cabinet your pre-installed application. app. Step-8: Unistall the cabinet Step-10: Step-9: Screen should look Press the Android application like this Home Button 42035 Zevo Drive Temecula, CA 92590 | 888-650-4488 | www.powertechnologies.com PT-AC-LOCKER_Firmware_Rev2023-11...
-
Page 20: Connecting A Laptop
Connecting A Laptop Screen On the Upper Cabinet of your Locker, insert key into Lock and open door. Locate the micro-USB Port on top of the Touch Screen and attach Micro USB cable from Laptop to the Locker. 42035 Zevo Drive Temecula, CA 92590 | 888-650-4488 | www.powertechnologies.com PT-AC-LOCKER_Firmware_Rev2023-11... - Page 21 Accessing Internal Storage Step-1: From your Laptop, select the connected “YF_****” Device, then press “Internal Storage”. Step-2: Drag and drop the new firmware file from your Laptop to the Internal Storage of the Device. 42035 Zevo Drive Temecula, CA 92590 | 888-650-4488 | www.powertechnologies.com PT-AC-LOCKER_Firmware_Rev2023-11...
- Page 22 Loading Latest Firmware Step-3: Step-4: From the Locker, press the “File Press the new firmware file Manager icon Step-5: Step-6: Installation will begin Once complete, locker is ready to use 42035 Zevo Drive Temecula, CA 92590 | 888-650-4488 | www.powertechnologies.com PT-AC-LOCKER_Firmware_Rev2023-11...
-
Page 23: Further Information
Further Information For further information on this product and others, contact Power Technologies at. Power Technologies 42035 Zevo Dr Temecula, CA 92590+ 888.650.4488 support@powertechnologies.com www.powertechnologies.com 42035 Zevo Drive Temecula, CA 92590 | 888-650-4488 | www.powertechnologies.com PT-AC-LOCKER_Firmware_Rev2023-11...
