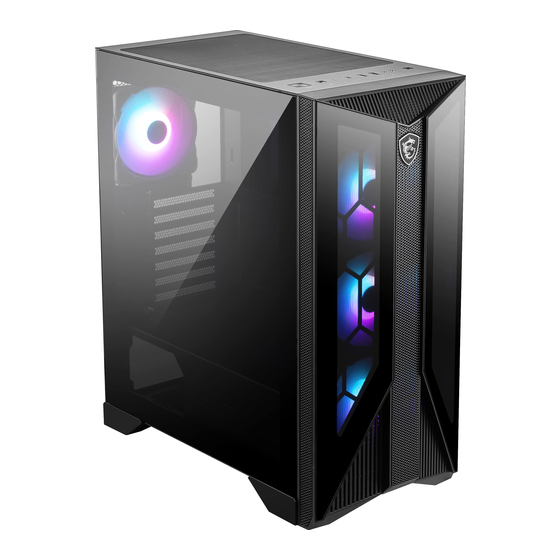

Summary of Contents for MSI MPG GUNGNIR 120R

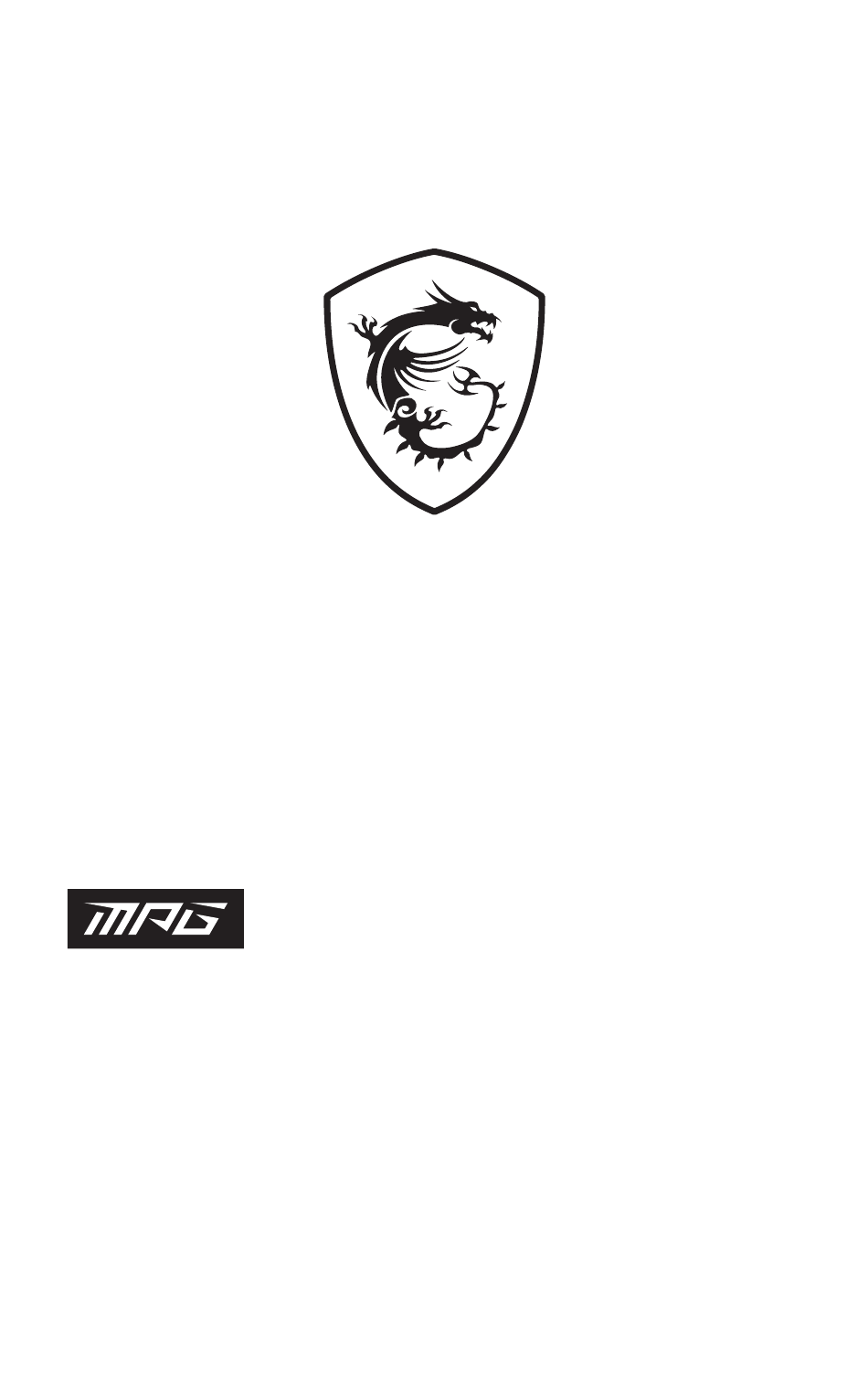

- Page 1 GUNGNIR 120R User Guide 使 用 手 冊...
-
Page 2: Table Of Contents
Contents / 目錄 Accessories / 配件 ......................3 Specification / 產品規格 ....................4 Case Features / 機殼特色 ...................5 Side & Front View/ 側面和前面 ...................6 IO Panel / IO 面板 ......................7 SSD, HDD Installation/ SSD 和硬碟安裝方式 .............8 Opening the Left & Right Side Cover/ 開啟左右側板 ..........9 Motherboard Installation / 安裝主機板... -
Page 3: Accessories / 配件
Accessories / 配件 Item 項目 Name 名稱 / Q’ty 數量 Used for 用途 1 to 3 fan splitter cable Connect fans 1 對 3 風扇分接線 連接風扇 Cable ties Cable management 束線帶 整線 Screw M3 5mm Motherboard / SSD 主機板 / SSD Screw #6-32 6mm PSU / PCIe Card 六角螺絲... -
Page 4: Specification / 產品規格
Specification / 產品規格 Size Mid-Tower 尺寸 Fan LED Controller 1 to 6 ARGB (3 pin) Control Board 風扇 LED 控制板 Front: 3x 120 mm ARGB fan Pre-Installed Fan 預裝風扇 Rear: 1x 120 mm ARGB fan Chassis: Steel (SPCC 0.5 mm) ( 鋼板外框 ) Right Side Panel: Steel ( 右側鋼板... -
Page 5: Case Features / 機殼特色
Case Features / 機殼特色... -
Page 6: Side & Front View/ 側面和前面
Side & Front View/ 側面和前面 215mm 441mm... -
Page 7: Io Panel / Io 面板
IO Panel / IO 面板 1. Power button / 電源按鈕 2. Reset button / 重新開機按鈕 3. Power indicator / 電源指示燈 4. USB 3.2 Gen 2 Type-C 5. USB 3.2 Gen 1 Type-A 6. Mic-in / 音訊輸入 7. Audio-out / 音訊輸出 8. -
Page 8: Ssd, Hdd Installation/ Ssd 和硬碟安裝方式
SSD, HDD Installation/ SSD 和硬碟安裝方式... -
Page 9: Opening The Left & Right Side Cover/ 開啟左右側板
Opening the Left & Right Side Cover/ 開啟左右側板... -
Page 10: Motherboard Installation / 安裝主機板
Motherboard Installation / 安裝主機板... -
Page 11: Graphics Card Installation / 安裝顯示卡
Graphics Card Installation / 安裝顯示卡... -
Page 12: Psu Installation / 安裝電源供應器
PSU Installation / 安裝電源供應器... -
Page 13: Control Board Specification / 控制板規格
支援 LED 種類 1x LED switch connector (LED 按鈕接頭 ) 1x SATA power connector (SATA 電源接頭 ) Connectors 1x MSI motherboard JRAINBOW connector ( 微星主機板 接頭 JRAINBOW 接頭 ) 6x 3-pin ARGB LED connectors (3 針 ARGB LED 接頭 ) ARGB Pin Definition ARGB 針腳定義... -
Page 14: Argb Fan Connection / 連接 Argb 風扇
ARGB Fan Connection / 連接 ARGB 風扇 ⚠ Note / 注意 ∙ Support up to 128 LEDs, Exceeding this limit will lead to overheating, abnormal color or no light. ∙ 最大支援 128 顆 LED，超過此限定會導致過熱、 異色、不亮。...
