TBX-24F Feedthrough Terminal Block
This guide describes how to install and use the TBX-24F feedthrough terminal block with your
SCXI terminal block and SCXI module.
Introduction
The TBX-24F is a DIN-rail mountable, pluggable terminal block. It connects to your SCXI
module via your SCXI terminal block, unless you are using the SCXI-1161. The TBX-24F
connects directly to the SCXI-1161 front connector because it has internal terminal blocks. You
can use the TBX-24F with any SCXI module.
The TBX-24F mounts on most European standard DIN EN mounting rails.
What You Need to Get Started
TBX-24F kit
TBX-24F feedthrough terminal block
TBX-24F Feedthrough Terminal Block Installation Guide
Self-adhesive blank labels (to identify signals)
1
/
in. flathead screwdriver
8
SCXI chassis
SCXI module and documentation
SCXI terminal block and documentation
_____________________________
Product and company names are trademarks or trade names of their respective companies.
321237A-01
© Copyright 1996 National Instruments Corporation. All rights reserved.
Installation Guide
®
®
March 1996
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for National Instruments TBX-24F
Summary of Contents for National Instruments TBX-24F
- Page 1 The Software is the Instrument ® TBX-24F Feedthrough Terminal Block This guide describes how to install and use the TBX-24F feedthrough terminal block with your SCXI terminal block and SCXI module. Introduction The TBX-24F is a DIN-rail mountable, pluggable terminal block. It connects to your SCXI module via your SCXI terminal block, unless you are using the SCXI-1161.
- Page 2 DIN rail. 1. Snap the TBX-24F onto the DIN rail with a firm push. To remove the TBX-24F from the DIN rail, place a flathead screwdriver into the slot above its base and pry it from the rail.

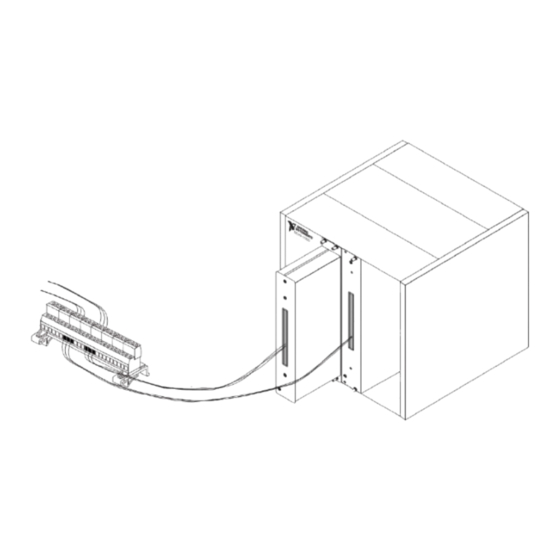

- Page 3 5. Write your signal names on the self-adhesive labels and affix the labels to your TBX-24F DIN-rail mountable and pluggable terminals (see Figure 2). Figure 1 shows the TBX-24F connected to an SCXI module via a terminal block, as well as connected directly to an SCXI-1161 module.
- Page 4 DIN-Rail Mountable Terminals Pluggable Terminals Self-Adhesive Label with Signal Names DIN Rail Mount Figure 2. TBX-24F Components Specifications Number of positions........24 Maximum voltage ..........250 V Maximum current...........12 A AWG ..............24–12 Compatible DIN rails........DIN EN 50 022 DIN EN 50 035 Terminal block dimensions......12.34 x 4.24 x 5.08 cm (4.86 x 1.67 x 2.0 in.)
