MODEL: HV9012
- (2) Side frames RH/LH
- (1) Seat assembly
- (1) Back assembly
- (1) Brace
- (1) Foot rest
- (1) Hardware pack
TOOLS NEEDED
4MM T-HANDLE HEX KEY (INCLUDED)
4mm Hex Key (included)
Qty.
Description
A - 1/4-20 X 1-3/4 WAFER SHCS
8
B - .27 X 3 SOCKET WAFER "A"
6

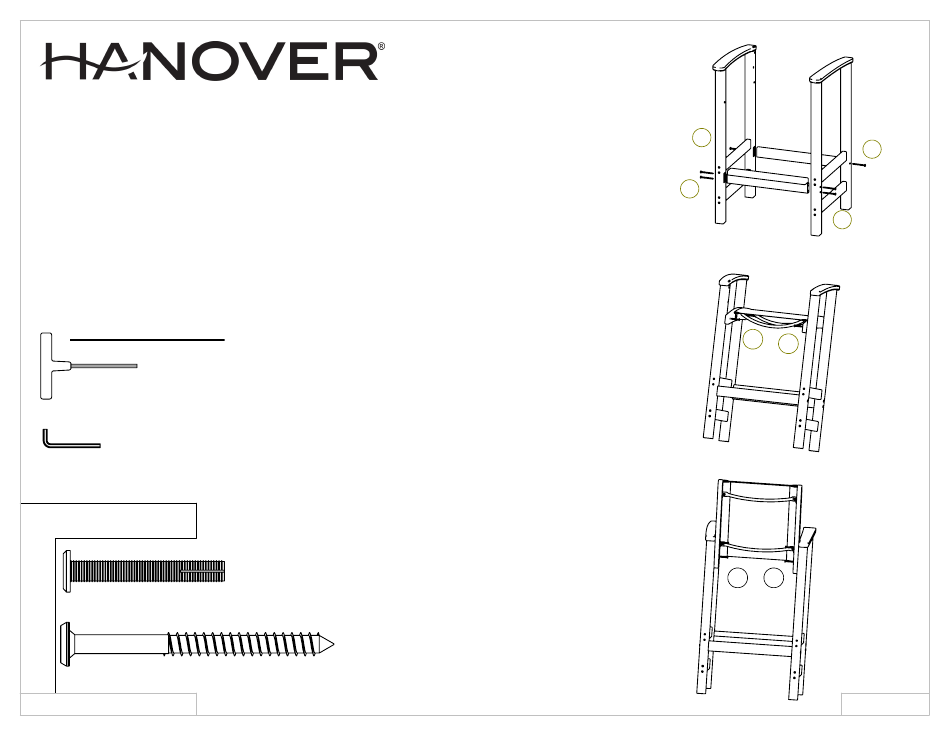

ASSEMBLY INSTRUCTIONS
STEP 1
Attach foot rest and brace into pockets
on side frames using (6) 3" screws.
Do not tighten screws until last step.
STEP 2
Atach seat assembly to side frames
using (4) 1-3/4 bolts.
STEP 3
Attach back assembly to side frames
using (4) 1-3/4 bolts.
Tighten all screws.
ALL HARDWARE IS STAINLESS STEEL
B
B
B
Front
A
A
Back
A
A
Back
6/25/2015
B
