Hanover Outdoor Furniture IMPORTANT If you have any problems with this product (missing or damaged parts, assembly issues, etc.), PLEASE DO NOT RETURN TO THE RETAILER/STORE from where you purchased the product. 1‐877-976-4402 Please call our Toll‐Free Customer Service Hotline at: Between 9:00 AM and 5:00 PM Eastern Time, Monday through Friday www.hanover‐products.com Or visit our website at: To expedite any future warranty claims, please retain the Instruction Sheet, Warranty Card and receipt for future use. For additional on‐line support on assembly, troubleshooting and care & maintenance of your outdoor furniture, please visit our website at: www.hanover‐products.com. 6/1/2015 (b) ...
Page 2
STEP 2 Using (2) 2" Screws fasten Cross Brace into Seat MODEL: HVLNR10 __(1) HARDWARE PACK STEP 1 __(2) ROCKERS (RH, LH) Attach Front Leg to Rocker by screwing __(2) FRONT LEGS (RH, LH) threaded stud into pilot holes __(1) SEAT ASSEMBLY __(1) BACK ASSEMBLY Note the position of the "Wing"...
Page 3

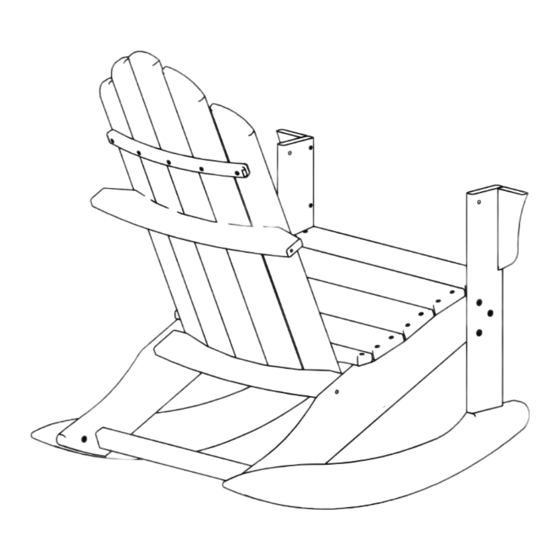

STEP 4 STEP 6 Using (2) 2" Screws attach Back to Seat Using (2) 2-1/4" Bolts, Nuts, and Washers attach Arms to Legs and (2) 2" Screws attach Arms to Back ASSEMBLY INSTRUCTIONS 6/25/2015...
