K I N D E R
®
Va ey

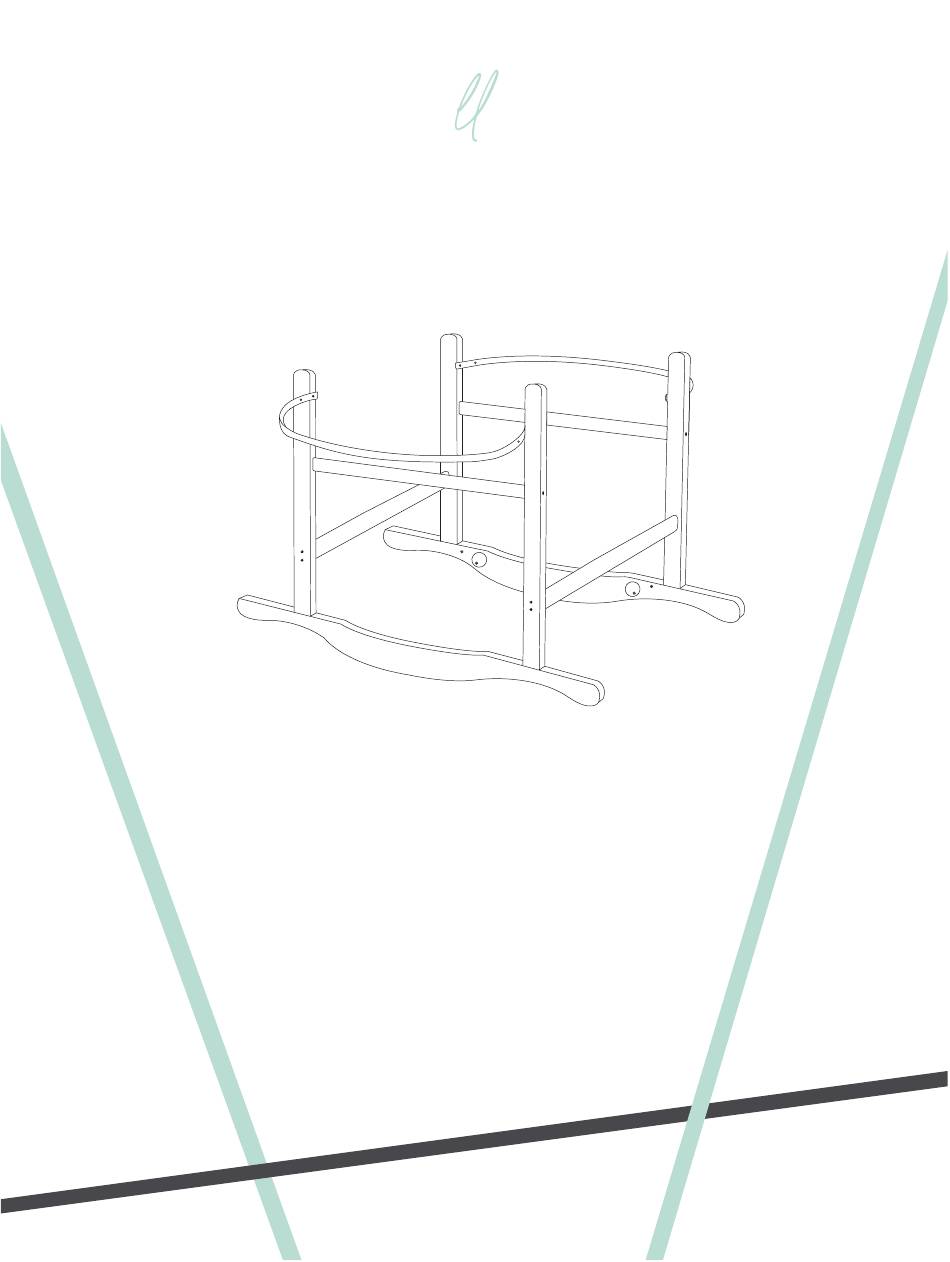

Chester Rocking Stand
ASSEMBLY INSTRUCTIONS
IMPORTANT, RETAIN FOR FUTURE
REFERENCE: READ CAREFULLY
Dimensions(cm): (L)83cm x (W)61cm x (H)44cm*
Min/Max Moses Basket Base Size: (L)83cm x (W)61cm
Easy assembly
Safe & Sturdy
Suitable from Birth
•
•
•
Smooth and Static Rocking Motion
•
Stoppers for Static Position
•
*Approx. measurements only. Sizes may vary.
Contact Us...
sales@kinder-valley.com
E
0844 7744644 - Option 2
T
www.kinder-valley.com
EFC67
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kinder Valley Chester
Summary of Contents for Kinder Valley Chester
- Page 1 K I N D E R ® Va ey Chester Rocking Stand ASSEMBLY INSTRUCTIONS IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY Dimensions(cm): (L)83cm x (W)61cm x (H)44cm* Min/Max Moses Basket Base Size: (L)83cm x (W)61cm Easy assembly Safe & Sturdy Suitable from Birth •...
-
Page 2: Before You Start
WARNING - Do NOT use if any part is broken, torn or missing. WARNING - Only use replacement parts supplied by or approved by Kinder Valley. WARNING - Your product can be cleaned with a damp cloth. Never use harsh abrasives,... - Page 3 Fixtures & Fittings CHECK THAT YOU HAVE ALL FIXTURES AND FITTINGS BEFORE ASSEMBLY, AND ENSURE THEY ARE NOT BROKEN. x2 Curved Base Rail x4 Legs (x2 Left & x2 Right) x2 Support Bars x2 Cross Rails x8 70mm Screws x12 40mm Screws x2 Plastic Rails x4 13mm Screws Tools you’ll need for installation:...
- Page 4 Step 1 Fasten 2 Legs (x1 Left and x1 Right) to Support Bar using 2 x 40mm Screws Large holes should be facing the same way. Repeat this step with the remaining 2 Legs and Support Bar Step 2 Fasten Curved Base Rail to Legs using 4 x 70mm Screws .
- Page 5 Step 3 Step 2 Attach x2 Cross Rails using x4 30mm Screws Step 4 Attach the remaining Legs and Curved Base Rail to the main structure using the remaining x4 40mm Screws IMPORTANT - RETAIN FOR FUTURE REFERENCE...
- Page 6 Step 5 Step 5 Finally, attach Plastic Rail to Legs using the x2 13mm Screws . Repeat this step with the remaining Plastic Rail . The Plastic Rails have x2 holes either to allow for adjustment depending on the size of your Moses Basket. IMPORTANT - RETAIN FOR FUTURE REFERENCE...
