K I N D E R
®
Va ey
Sydney Cotbed
ASSEMBLY INSTRUCTIONS
IMPORTANT! KEEP FOR FUTURE
REFERENCE
Dimensions(cm): (L)144 x (W)76 x (H)80*
Fits Mattress Size(cm): (L)140 x (W)70
Easy assembly
Safe & Sturdy
3 Base Height
•
•
•
Positions
Teething Rails
Converts into Junior Bed
•
•
*Approx. measurements only. Sizes may vary.
Contact Us...
sales@kinder-valley.com
E
0844 7744644 - Option 2
T
www.kinder-valley.com
*FACTORY CODE*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kinder Valley Sydney
Summary of Contents for Kinder Valley Sydney

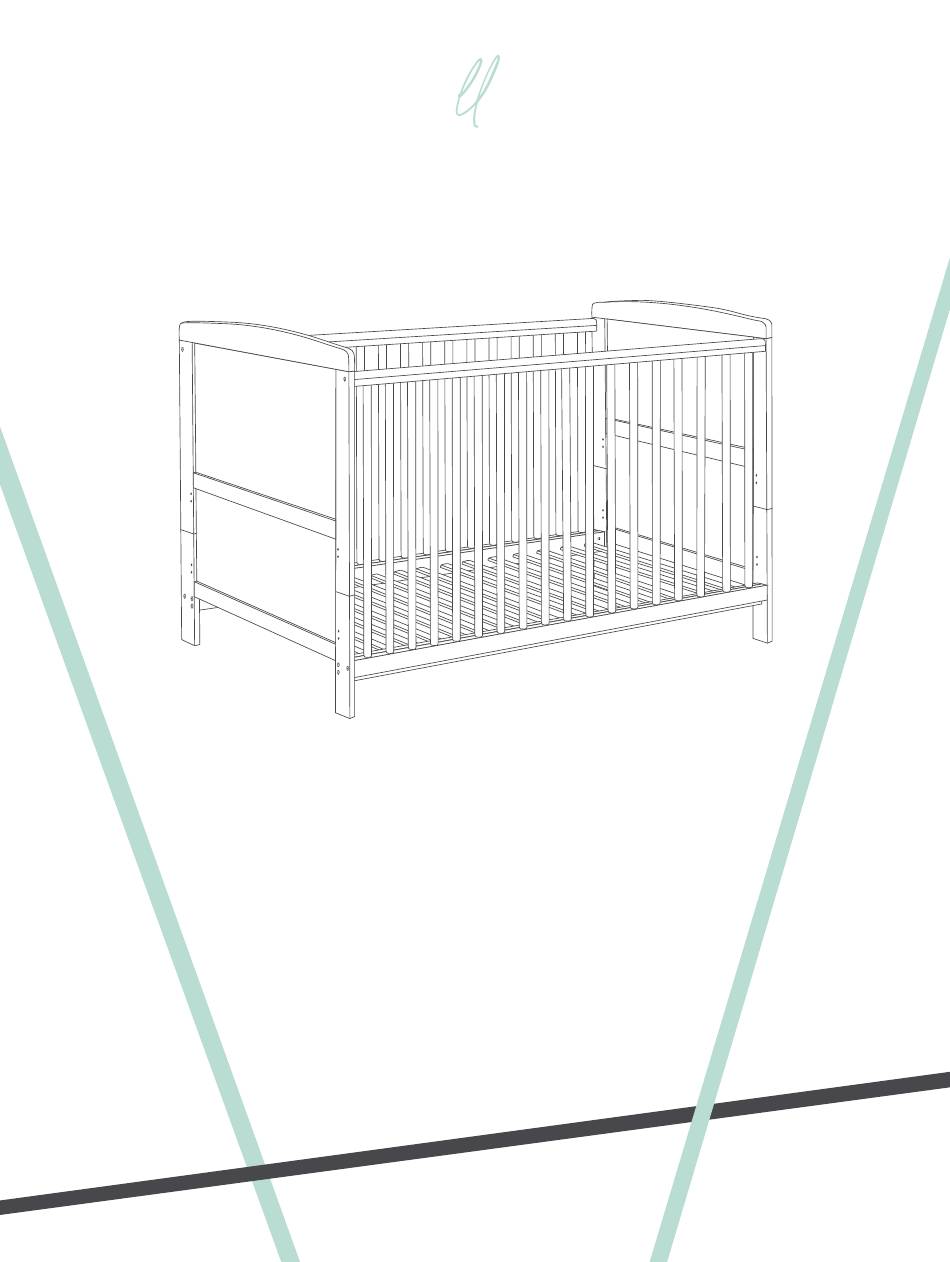

- Page 1 K I N D E R ® Va ey Sydney Cotbed ASSEMBLY INSTRUCTIONS IMPORTANT! KEEP FOR FUTURE REFERENCE Dimensions(cm): (L)144 x (W)76 x (H)80* Fits Mattress Size(cm): (L)140 x (W)70 Easy assembly Safe & Sturdy 3 Base Height • •...
- Page 2 This Kinder Valley cotbed conforms to BS EN 716:2008+A1:2013 and the junior bed conforms to BS 8509:2008+A1:2011. This Kinder Valley cotbed is suitable from birth. In cot mode there are 3 mattress base height positions. The lowest position is the safest and should always be used in that position as soon as the baby is able to sit up.
- Page 3 Fixtures & Fittings CHECK THAT YOU HAVE ALL FIXTURES AND FITTINGS BEFORE ASSEMBLY, AND ENSURE THEY ARE NOT BROKEN. x2 Cotbed Ends x2 Side Rails x1 Base x16 Bolts x16 Barrel Nuts x1 Allen Key Number of people to assemble: Two adults are required to assemble this item.
- Page 4 Step 1 Join Cotbed End to Side Rail with x2 Bolts and x2 Barrel Nuts Step 2 Step 1 Join remaining Cotbed End with x2 Bolts and x2 Barrel Nuts IMPORTANT - RETAIN FOR FUTURE REFERENCE...
- Page 5 Step 3 Step 2 Join Cotbed Base at the required base height position with x8 Bolts x8 Barrel Nuts Step 4 Complete assembly of your Cotbed by joining the remaining Side Rail with x4 Bolts and x4 Barrel Nuts IMPORTANT - RETAIN FOR FUTURE REFERENCE...
- Page 6 Step 5 - For when converting to a Junior Bed Firstly, fully disassemble the cotbed. Secondly remove the lower half of both Cotbed Ends as shown in the above diagram. Step 6 Step 5 Join converted Cotbed End to Cotbed Base using X4 Bolts and X4 Barrel Nuts...
- Page 7 Step 7 Complete assembly of your Junior Bed by joining the second converted Cotbed End Step 5 Step 6 using x4 Bolts and x4 Barrel Nuts IMPORTANT - RETAIN FOR FUTURE REFERENCE...
