Kinder Valley Harper Assembly Instructions Manual

Toddler bed house

Table of Contents

Download this manual

K I N D E R

Va ey

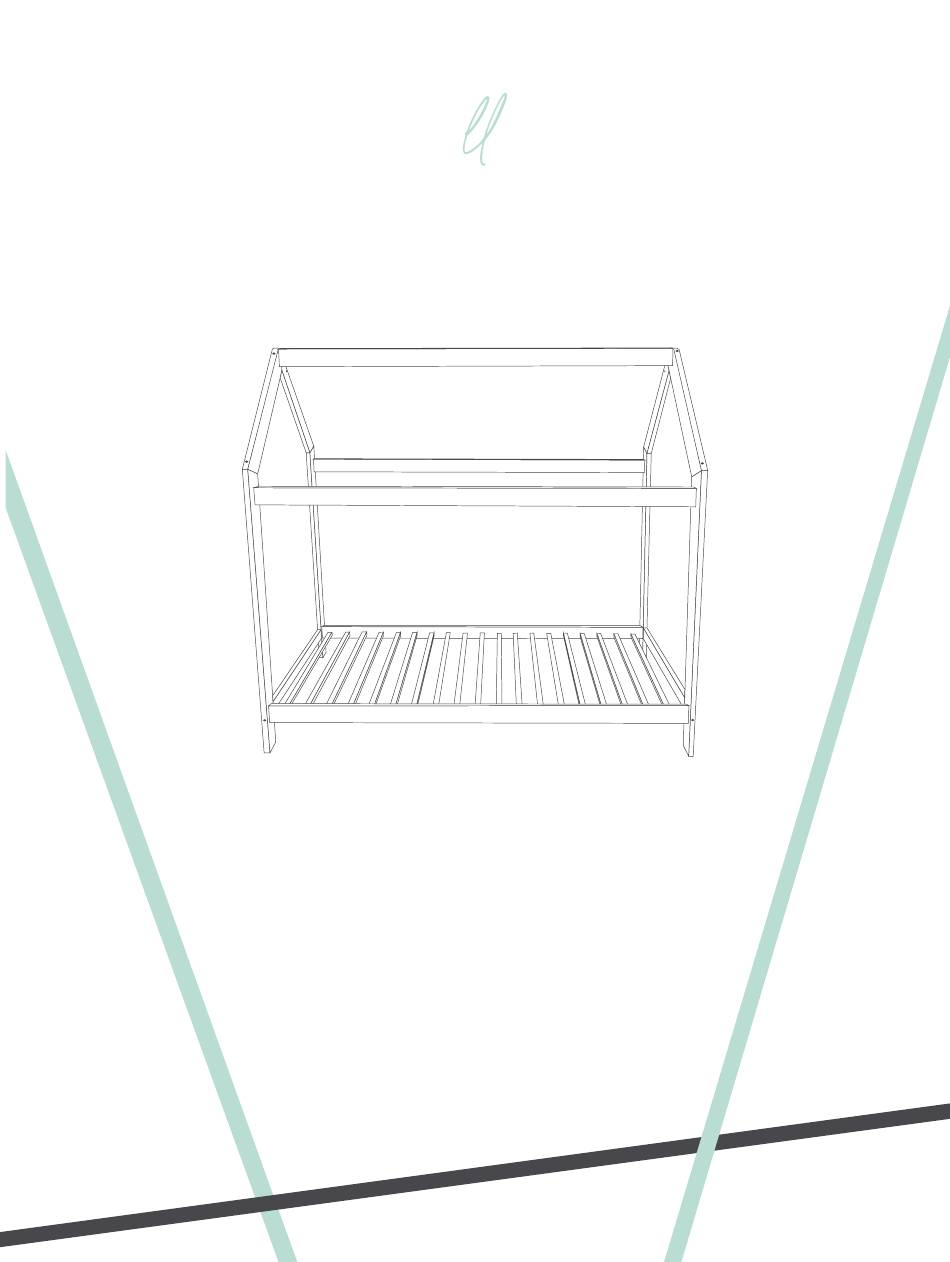

Harper Toddler Bed House

ASSEMBLY INSTRUCTIONS

IMPORTANT! KEEP FOR FUTURE

REFERENCE

Dimensions(cm): (L)144 x (W)77 x (H)145*

Fits Mattress Size(cm): (L)140 x (W)70

Easy assembly

Safe & Sturdy

Space Saver Size

•

3 Base Height Positions

Teething Rails

•

*Approx. measurements only. Sizes may vary.

sales@kinder-valley.com

0844 7744644 - Option 2

www.kinder-valley.com

*FACTORY CODE*

Table of Contents

Need help?

Do you have a question about the Harper and is the answer not in the manual?

Page 1 K I N D E R ® Va ey Harper Toddler Bed House ASSEMBLY INSTRUCTIONS IMPORTANT! KEEP FOR FUTURE REFERENCE Dimensions(cm): (L)144 x (W)77 x (H)145* Fits Mattress Size(cm): (L)140 x (W)70 Easy assembly Safe & Sturdy Space Saver Size •...
Page 2 WARNING - Do not disassemble once the bed has been built. This Kinder Valley toddler bed conforms to BS 8509:2008+A1:2011. This Kinder Valley toddler bed is suitable from approximately 18 months to 4 years. It is intended to be used by one child at a time.
Page 3 Fixtures & Fittings CHECK THAT YOU HAVE ALL FIXTURES AND FITTINGS BEFORE ASSEMBLY, AND ENSURE THEY ARE NOT BROKEN. x3 Long Panels x2 Short Panels x1 Base x2 Short Arm x2 Long Arm x4 Legs x8 Dowels x9 Barrel Nuts x2 Long Bolts (40mm) (100mm)
Page 4 Step 1 Join x1 Short Arm to x1 Long Arm using x1 Long Bolt and x1 Barrel Nut Repeat for remaining Short Arm and Long Arm Step 2 Step 1 Join x2 Legs using x2 Dowels and x2 Conformats Repeat for remaining Legs Step 1 IMPORTANT - RETAIN FOR FUTURE REFERENCE...
Page 5 Step 3 Step 2 Join x1 Short Panel using x2 Dowels and x2 Conformats Repeat for remaining Short Step 2 Panel Step 4 Step 3 Join Base to both parts of using x8 Short Bolts and x8 Barrel Nuts IMPORTANT - RETAIN FOR FUTURE REFERENCE...
Page 6 Step 5 Complete assembly of your Harper Toddler Bed House by joining x3 Long Panels Step 4 using x12 Conformats IMPORTANT - RETAIN FOR FUTURE REFERENCE...
