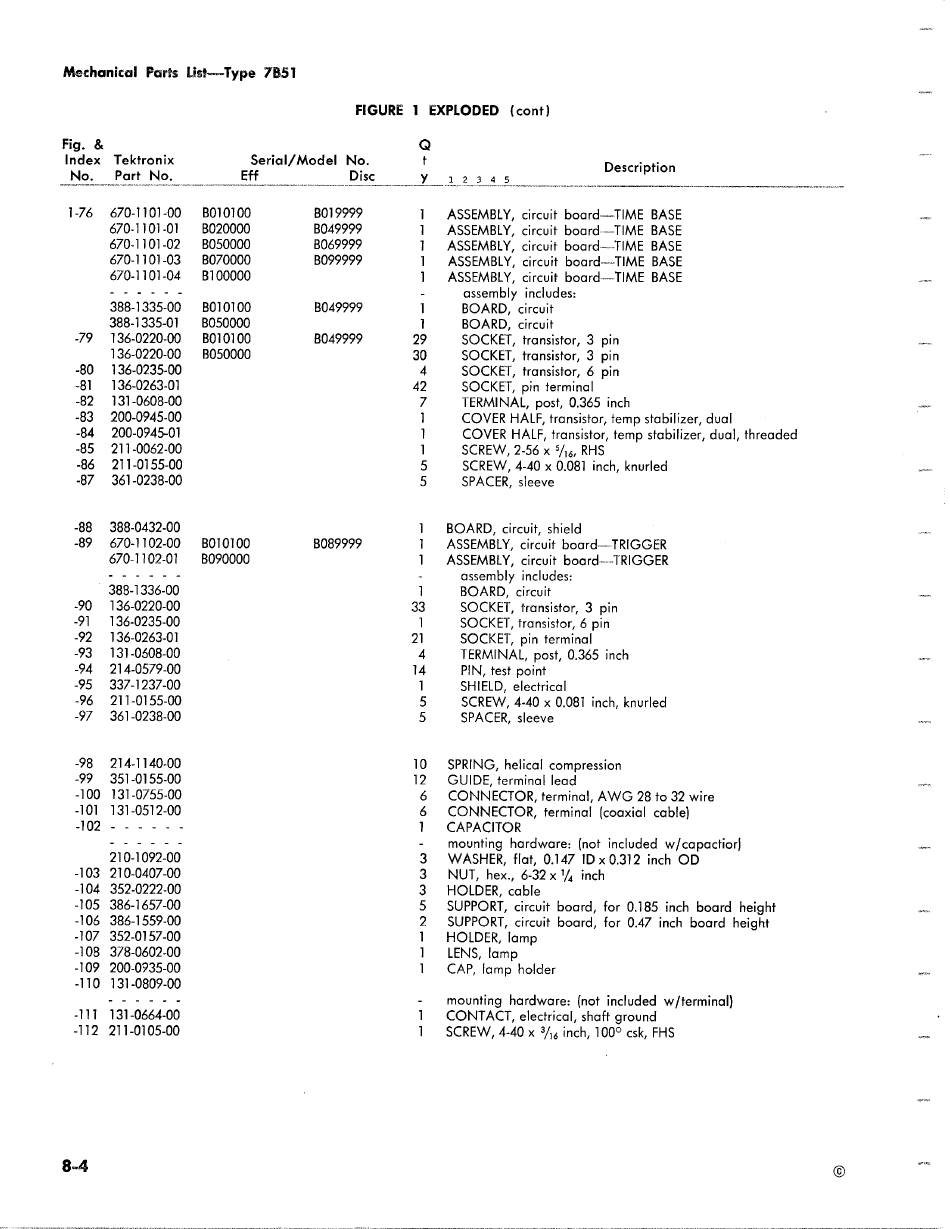

Tektronix 7B51 Instruction Manual page 116

Mechanical Parts List-Type 7851
FIGURE 1 EXPLODED (cont)
Fig . &
Index
No .
Tektronix
Part No . Eff
Serial/Model No .
Disc
Q
t
Description
1-76 670-1101-00 B010100 13019999
1 ASSEMBLY, circuit board-TIME BASE
670-1101-01 B020000 13049999
1 ASSEMBLY, circuit board--TIME BASE
670-1101-02 B050000 B069999
1 ASSEMBLY, circuit board-----TIME BASE
670-1101-03 B070000 13099999
1 ASSEMBLY, circuit board--TIME BASE
670-1101-04 B100000
1 ASSEMBLY, circuit board--TIME BASE
- - - - - - - assembly includes :
388-1335-00
13010100 B049999 1 BOARD, circuit
388-1335-01
13050000 1 BOARD, circuit
-79 136-0220-00 B010100 13049999 29 SOCKET, transistor, 3 pin
136-0220-00 B050000
30 SOCKET, transistor, 3 pin
-80 136-0235-00 4
SOCKET, transistor, 6 pin
-81 136-0263-01 42 SOCKET, pin terminal
-82 131-0608-00
7 TERMINAL, post, 0 .365 inch
-83 200-0945-00
1 COVER HALF, transistor, temp stabilizer, dual
-84 200-0945-01
1 COVER HALF, transistor, temp stabilizer, dual, threaded
-85 211-0062-00 1 SCREW, 2-56
X 5/16,
RHS
-86 211-0155-00
5 SCREW, 4-40 x 0 .081 inch, knurled
-87 361-0238-00
5 SPACER, sleeve
-88 388-0432-00
1 BOARD, circuit, shield
-89 670-1102-00
B010100 13089999 1 ASSEMBLY, circuit board----TRIGGER
670-1102-01
B090000 1 ASSEMBLY, circuit board----TRIGGER
- - - - - - - assembly includes :
388-1336-00 1 BOARD, circuit
-90
136-0220-00
33 SOCKET, transistor, 3 pin
-91
136-0235-00 1
SOCKET', transistor, 6 pin
-92 136-0263-01 21
SOCKET, pin terminal
-93 131-0608-00
4 TERMINAL, post, 0 .365 inch
-94 214-0579-00
14 PIN, test point
-95 337-1237-00
1 SHIELD, electrical
-96 211-0155-00
5 SCREW, 4-40 x 0 .081 inch, knurled
-97 361-0238-00 5
SPACER, sleeve
-98 214-1140-00
10 SPRING, helical compression
-99 351-0155-00 12
GUIDE, terminal lead
-100 131-0755-00
6 CONNECTOR, terminal, AWG 28 to 32 wire
-101 131-0512-00
6 CONNECTOR, terminal (coaxial cable)
-102 - - - - - -
1 CAPACITOR
- - - - - - - mounting hardware : (not included w/capactior)
210-1092-00 3
WASHER, flat, 0.147 ID x 0 .312 inch OD
-103 210-0407-00 3
NUT, hex ., 6-32
x'/4
inch
-104 352-0222-00
3 HOLDER, cable
-105 386-1657-00
5 SUPPORT, circuit board, for 0 .185 inch board height
-106 386-1559-00
2. SUPPORT, circuit board, for 0.47 inch board height
-107 352-0157-00
1 HOLDER, lamp
-108 378-0602-00
1 LENS, lamp
-109 200-0935-00
1 CAP, lamp holder
-110 131-0809-00
- - - - - - - mounting hardware : (not included w/terminal)
-111 131-0664-00 1 CONTACT, electrical, shaft ground
-112 211-0105-00 1
SCREW, 4-40 x 3
/ 6
inch, 100 0 csk, FHS
