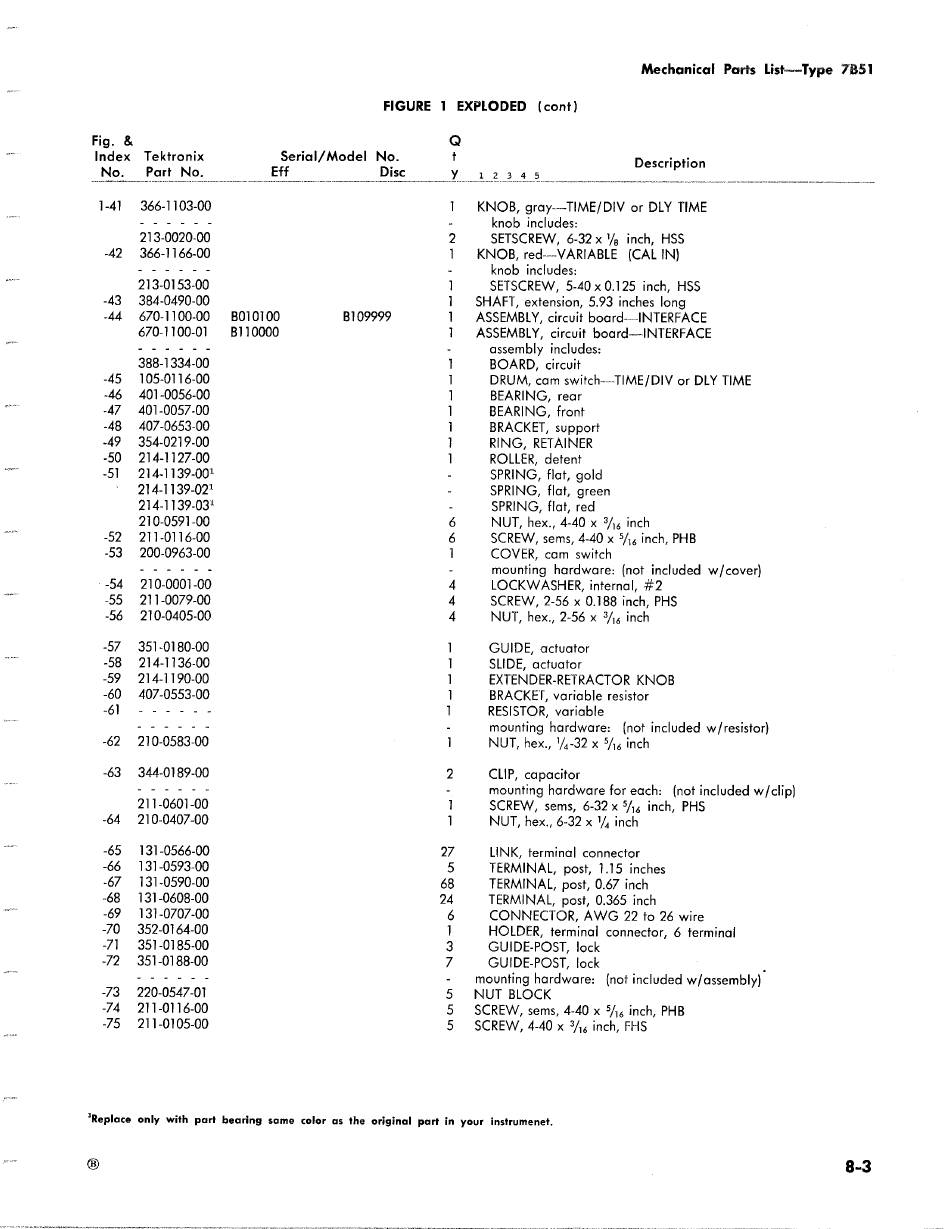

FIGURE 1 EXPLODED (cont)
Mechanical Parts List-Type 7851
'Replace only with part bearing same color as the original part in your instrumenet.
8-3
Fig . &
Index
No .
Tektronix
Part No .
Eff
Serial/Model No .
Disc
Q
t
Description
1-41
366-1103-00
1
KNOB, gray- TIME/DIV or DLY TIME
- - - - - -
-
knob includes :
213-0020-00
2
SETSCREW, 6-32 x '/s inch, HSS
-42
366-1166-00
1
KNOB, red----VARIABLE (CAL IN)
- - - - - -
-
knob includes :
213-0153-00
1
SETSCREW, 5-40x0 .125 inch, HSS
-43
384-0490-00
1
SHAFT, extension, 5 .93 inches long
-44
670-1100-00
13010100
13109999
1
ASSEMBLY, circuit board---INTERFACE
670-1100-01
B110000
1
ASSEMBLY, circuit board-INTERFACE
- - - - - -
-
assembly includes :
388-1334-00
1
BOARD, circuit
-45
105-0116-00
1
DRUM, cam switch----TIME/DIV or DLY TIME
-46
401-0056-00
1
BEARING, rear
-47
401-0057-00
1
BEARING, front
-48
407-0653-00
1
BRACKET, support
-49
354-0219-00
1
RING, RETAINER
-50
214-1127-00
1
ROLLER, detent
-51
214-1139-00 1
-
SPRING, flat, gold
214-1139-02 1
-
SPRING, flat, green
214-1139-03 1
-
SPRING, flat, red
210-0591-00
6
NUT, hex ., 4-40 x 3
/16
inch
-52
211-0116-00
6
SCREW, sems, 4-40 x 5
/16
inch, PHB
-53
200-0963-00
1
COVER, cam switch
- - - - - -
-
mounting hardware : (not included w/cover)
-54
210-0001-00
4
LOCKWASHER, internal, #2
-55
211-0079-00
4
SCREW, 2-56 x 0 .188 inch, PHS
-56
210-0405-00
4
NUT, hex ., 2-56 x 3
/ 16
inch
-57
351-0180-00
1
GUIDE, actuator
-58
214-1136-00
1
SLIDE, actuator
-59
214-1190-00
1
EXTENDER-RETRACTOR KNOB
-60
407-0553-00
1
BRACKET, variable resistor
-61
- - - - - -
1
RESISTOR, variable
- - - - - -
-
mounting hardware :
(not included w/resistor)
-62
210-0583-00
1
NUT, hex ., 1 /4-32 x 5
/16
inch
-63
344-0189-00
2
CLIP, capacitor
- - - - - -
-
mounting hardware for each : (not included w/clip)
211-0601-00
1
SCREW, sems, 6-32 x 5
/ 1
, inch, PHS
-64
210-0407-00
1
NUT, hex ., 6-32 x 1
/ 4
inch
-65
131-0566-00
27
LINK, terminal connector
-66
131-0593-00
5
TERMINAL, post, 1 .15 inches
-67
131-0590-00
68
TERMINAL, post, 0 .67 inch
-68
131-0608-00
24
TERMINAL, post, 0 .365 inch
-69
131-0707-00
6
CONNECTOR, AWG 22 to 26 wire
-70
352-0164-00
1
HOLDER, terminal connector, 6 terminal
-71
351-0185-00
3
GUIDE-POST, lock
-72
351-0188-00
7
GUIDE-POST, lock
_
mounting hardware : (not included w/assembly)
-73
220-0547-01
5
NUT BLOCK
-74
211-0116-00
5
SCREW, sems, 4-40 x 5
/ 16
inch, PHB
-75
211-0105-00
5
SCREW, 4-40 x 3
/ 16
inch, FHS
