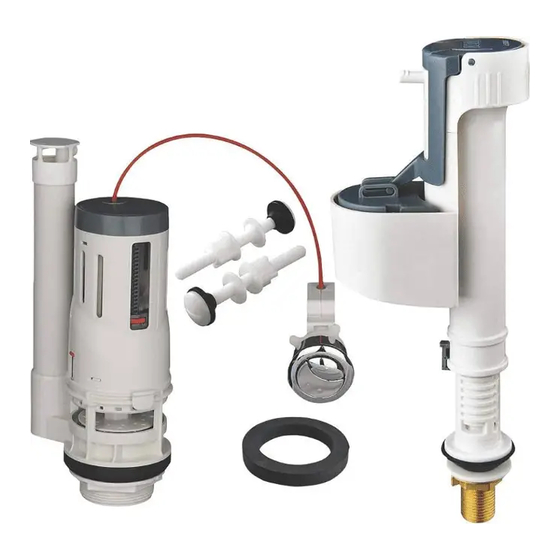

EN Bottom Entry

Flushing Kit

5059340756592

5059340756752

16 Jun 2023 16:32:46

Need help?

Do you have a question about the 5059340756592 and is the answer not in the manual?

Questions and answers

Summary of Contents for Flomasta 5059340756592

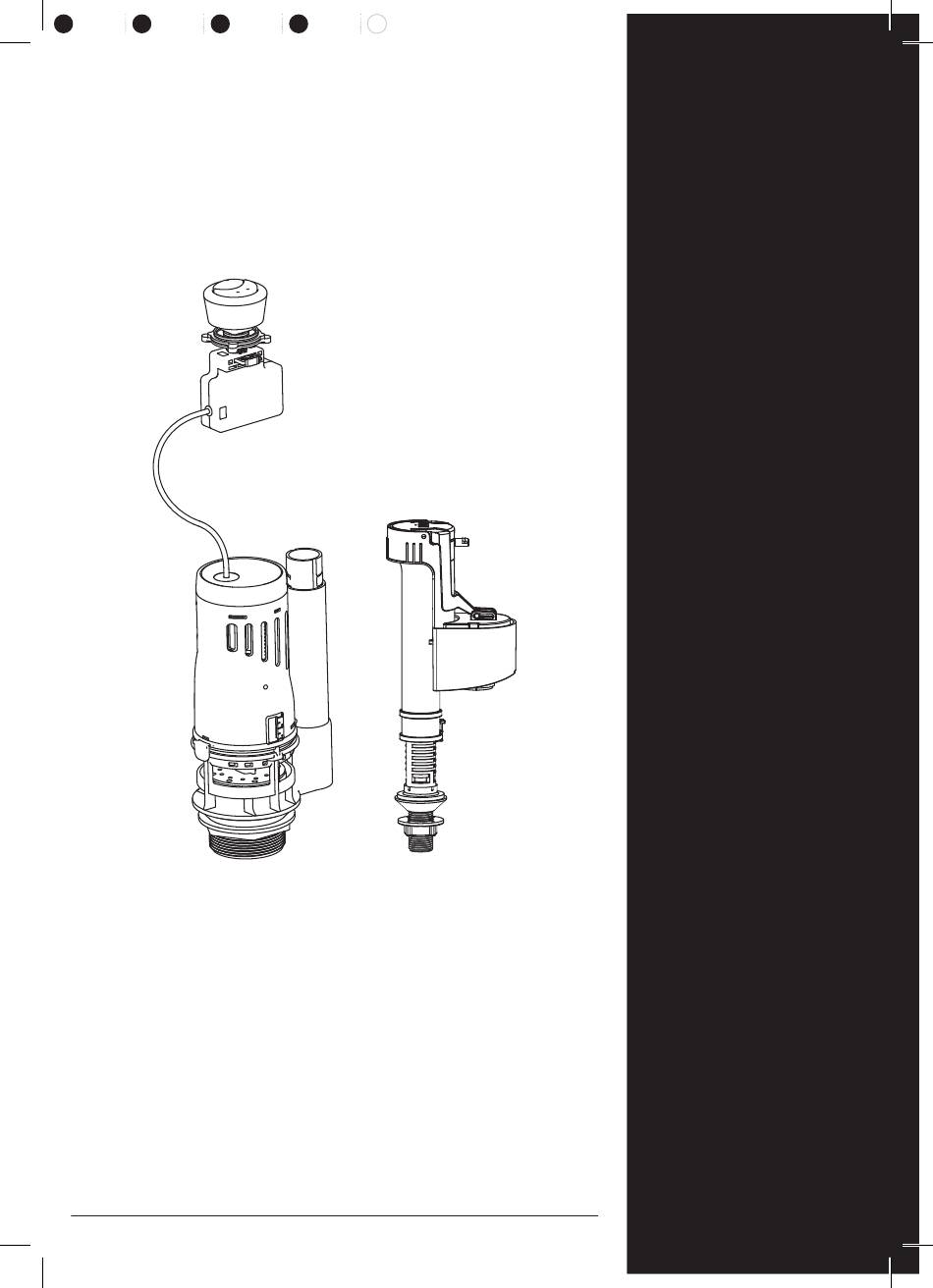

Page 1 EAN: 5059340756592 18/04/23 04/05/23 07/06/23 16/06/23 XX/XX/23 Page Size: A5 Impala Ref: PRJ27918 John NAME KNG: KNG-2471-0003 EN Bottom Entry Flushing Kit EN IMPORTANT - These instructions are for your safety. Please read through them thoroughly prior to handling the product and retain them for future reference.
Page 2 EN Parts 01. x1 02. x1 03. x1 04. x1 05. x2 EN You will need EN Contents Safety Guarantee Preparation Assembly Care & maintenance 5059340756592_MNL_IN_V04.indd 2 5059340756592_MNL_IN_V04.indd 2 16 Jun 2023 16:32:47 16 Jun 2023 16:32:47...
Page 3: Before You Start
EN Safety Before you start • Remove the lid of the cistern along with any buttons that may be connected to this. • Ensure that this product is suitable for the • Remove all excess water from the cistern with installation you have and that all component a sponge.
Page 4 X = ____mm Once all connections are removed, the cistern can be lifted from the pan and placed carefully on a suitable surface. Once all connections are removed, the cistern wall mounting can be removed. Take care as the cistern may be heavy.
Page 5 This guarantee covers product failures and malfunctions provided the product was used for the purpose for which it is intended and subject to installation, cleaning, care and maintenance in accordance with the information contained in these terms and conditions, in the user manual and standard practice, provided that standard practice does not conflict with the user manual.
Page 6 EN Preparation Information min 20 mm 25-32 mm NOTE: Once installed, the valve’s critical level (marked CL on the product) should be around 20 mm above the height of the flush valve overflow or 45 to 52 mm above the water level. The first step would be to adjust the height of the fill valve before fully installing it.
Page 7 EN Assembly 02. x1 Remove the securing clip [1] and rotate the top half of the product [2] to unlock the valve ready for adjustment. Pull [3] or push [3] the bottom half of the product to get the desired height. Rotate the top half of the valve [4] to lock in the height and refit the securing clip [5].
Page 8 01. x1 03. x1 Before installing the flush valve, we recommend that the installer adjusts the full and half flush settings to where they are felt to be most economical. These can be adjusted after installation so don’t worry if they are not to your liking post installation.
Page 9 04. x1 Fit the new flush valve into the cistern hole and make sure it is not in contact with the cistern wall or any other components already installed in your cistern. Fit the water seal to the underside of the cistern and secure the valve and seal in place with the backing nut. Tighten by hand force only.
Page 10 Fit your cistern back to the toilet pan. Remember to install the doughnut seal 04 between the cistern and the pan. Secure the cistern screws with hand force. Do not over tighten. 25-32 mm With the flush valve fitted, now adjust the overflow height as per value X (if obtained in Removal of existing valves step A) or based off the height of the water level mark from within your cistern.
Page 11 Now fit the already adjusted fill valve to the cistern. Check again that the dimensions are correct as per the diagram provided in the Information section with the overflow height being 25 mm above the water line and the CL line for the fill valve being 20 mm above the overflow level. If these are not correct, refer back to steps 1 and 4 to make any adjustment needed.
Page 12 EN Care & maintenance To correctly maintain the fill valve we recommend cleaning the diaphragm and filter every 6 months or sooner if you live in a hard water area. Follow the detailed instruction below on how to access the diaphragm and filter for the fill valve. 5059340756592_MNL_IN_V04.indd 12 5059340756592_MNL_IN_V04.indd 12 16 Jun 2023 16:32:50...
Page 13: Troubleshooting
To correctly maintain the flush valve we recommend cleaning the seal every 6 months or sooner if you live in a hard water area. Follow the detailed instruction below on how to access the flush valve seal for cleaning. Troubleshooting If after the installation there is water continuously flowing into the bowl, first check that the fill valve is not overfilling the cistern.
Page 14 Manufacturer: EN www.diy.com www.screwfix.com UK Manufacturer: www.screwfix.ie Kingfisher International Products Limited, To view instruction manuals online, 1 Paddington Square, London, W2 1GG, visit www.kingfisher.com/products United Kingdom EU Manufacturer: Kingfisher International Products B.V., Rapenburgerstraat 175E, 1011 VM Amsterdam, The Netherlands 5059340756592_MNL_IN_V04.indd 14 5059340756592_MNL_IN_V04.indd 14 16 Jun 2023 16:32:50 16 Jun 2023 16:32:50...
