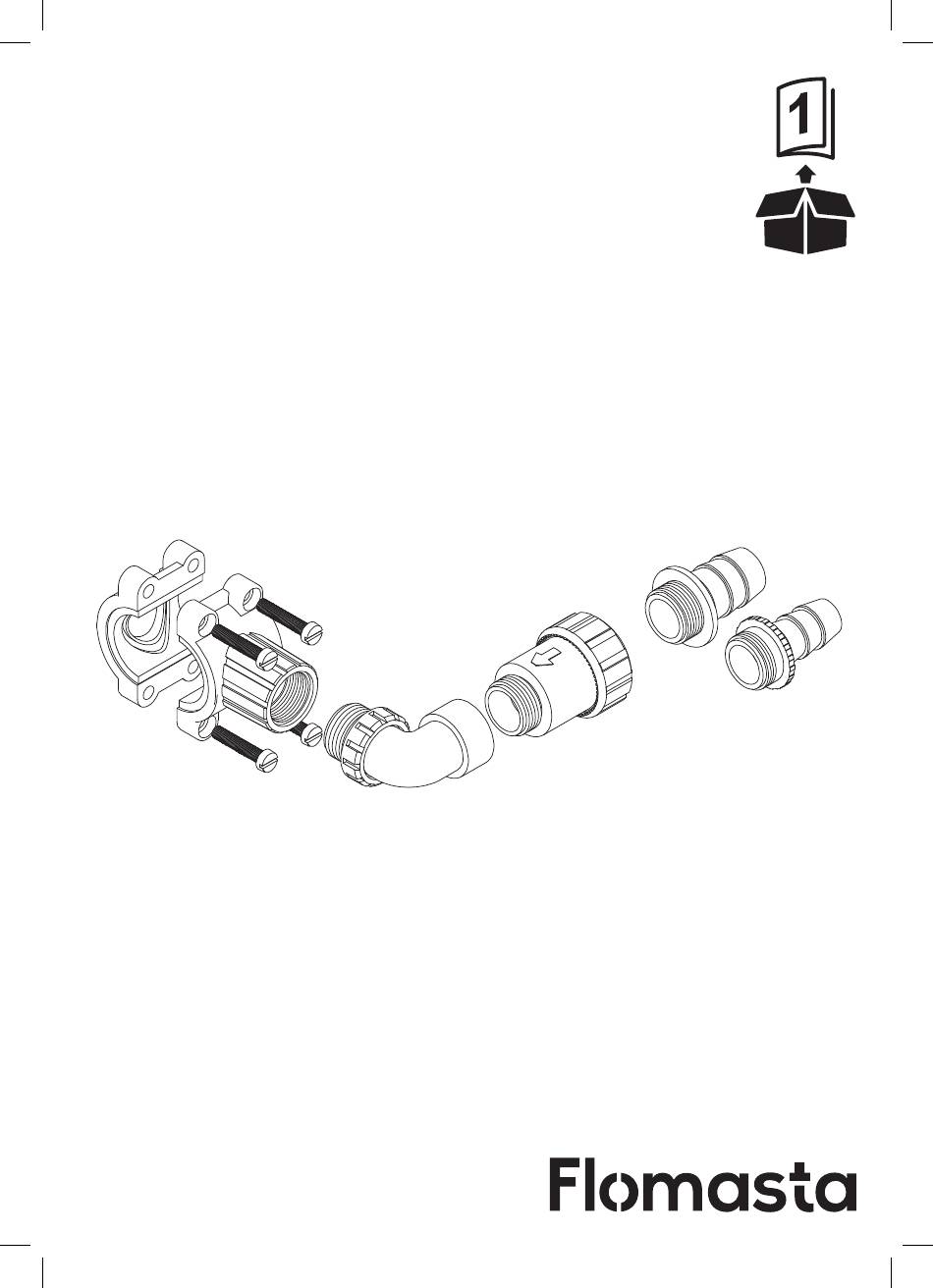

- Page 1 5059340065113 V20320 ZHIE13008-02_196034_s4_s2_Flomasta Evacuation Kit with Anti Backflow (Drain out Kit) V2R.indd 1 16/03/2020 12:02...
- Page 2 Contents Product description Safety Assembly Care and maintenance ZHIE13008-02_196034_s4_s2_Flomasta Evacuation Kit with Anti Backflow (Drain out Kit) V2R.indd 2 16/03/2020 12:02...
- Page 3 WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the product. [01] x1 [02] x2 [03] x1 [04] x1 [05] x1 [06] x1 [07] x1 [08] x1 [09] x1 [10] x1 [11] x1 ZHIE13008-02_196034_s4_s2_Flomasta Evacuation Kit with Anti Backflow (Drain out Kit) V2R.indd 3 16/03/2020 12:02...
- Page 4 Product description 3/4"spigot [06] plastic saddles [01] valve nut lock nut [04] 5/8"spigot [07] [02] [05] spacers trap valve [03] elbow [08] [09] [10] ZHIE13008-02_196034_s4_s2_Flomasta Evacuation Kit with Anti Backflow (Drain out Kit) V2R.indd 4 16/03/2020 12:02...
- Page 5 Safety Before you start • Don’t rush, read the instructions first and familiarise yourself with the sequence before you begin. • Make sure you have all of the parts listed. Check all of the packaging as components may be concealed; do not dispose of packaging until you have located all of the parts.
- Page 6 Assembly [01] x1 Unscrew the elbow (3) from the kit assembly. Remove the 4 fixing screws. Use spacers for 32mm pipe [11] x1 [11] o-ring Position the 2 plastic saddles [01] over 40mm waste pipe. For 32mm pipe leave the 2 spacers [02] in place. Remove one spacer if saddle is too tight.
- Page 7 Assembly Tighten the 4 screws evenly. [09] [08] [08] x1 Screw the cutter into the fitted kit [09] x1 until a hole is cut through the pipe. ZHIE13008-02_196034_s4_s2_Flomasta Evacuation Kit with Anti Backflow (Drain out Kit) V2R.indd 7 16/03/2020 12:02...
- Page 8 Assembly [09] [08] [08] x1 [09] x1 Remove cutting tool. Without elbow With elbow [05] [05] [04] [03] x1 [06] x1 [04] x1 [04] [03] [07] x1 Screw the elbow [03] back into the kit, then the trap valve [05] and lastly the spigot [06] or [07].
- Page 9 Assembly [10] [10] x1 Push drain hose onto spigot and secure with clip [10]. Clean trap valve [05] periodically using water and a cloth or sponge. ZHIE13008-02_196034_s4_s2_Flomasta Evacuation Kit with Anti Backflow (Drain out Kit) V2R.indd 9 16/03/2020 12:02...
- Page 10 Care and maintenance Care and maintenance • We do not recommend using harsh chemicals to clean products as this could affect its lifespan. • If chemicals are used, ensure they are thoroughly washed away with warm clean water and no chemical residue remains in contact with the product.
- Page 11 Addresses UK Manufacturer: Kingfisher International Products Limited, 3 Sheldon Square, London, W2 6PX, United Kingdom EU Manufacturer: Kingfisher International Products B. V . Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.kingfisher.com/products Distributor: B&Q Limited, Chandlers Ford, Hants, SO53 3LE, United Kingdom www.diy.com Screwfix Direct Limited, Trade House, Mead Avenue, Yeovil, BA22 8RT,...
