Summary of Contents for Herdio HMS-60B

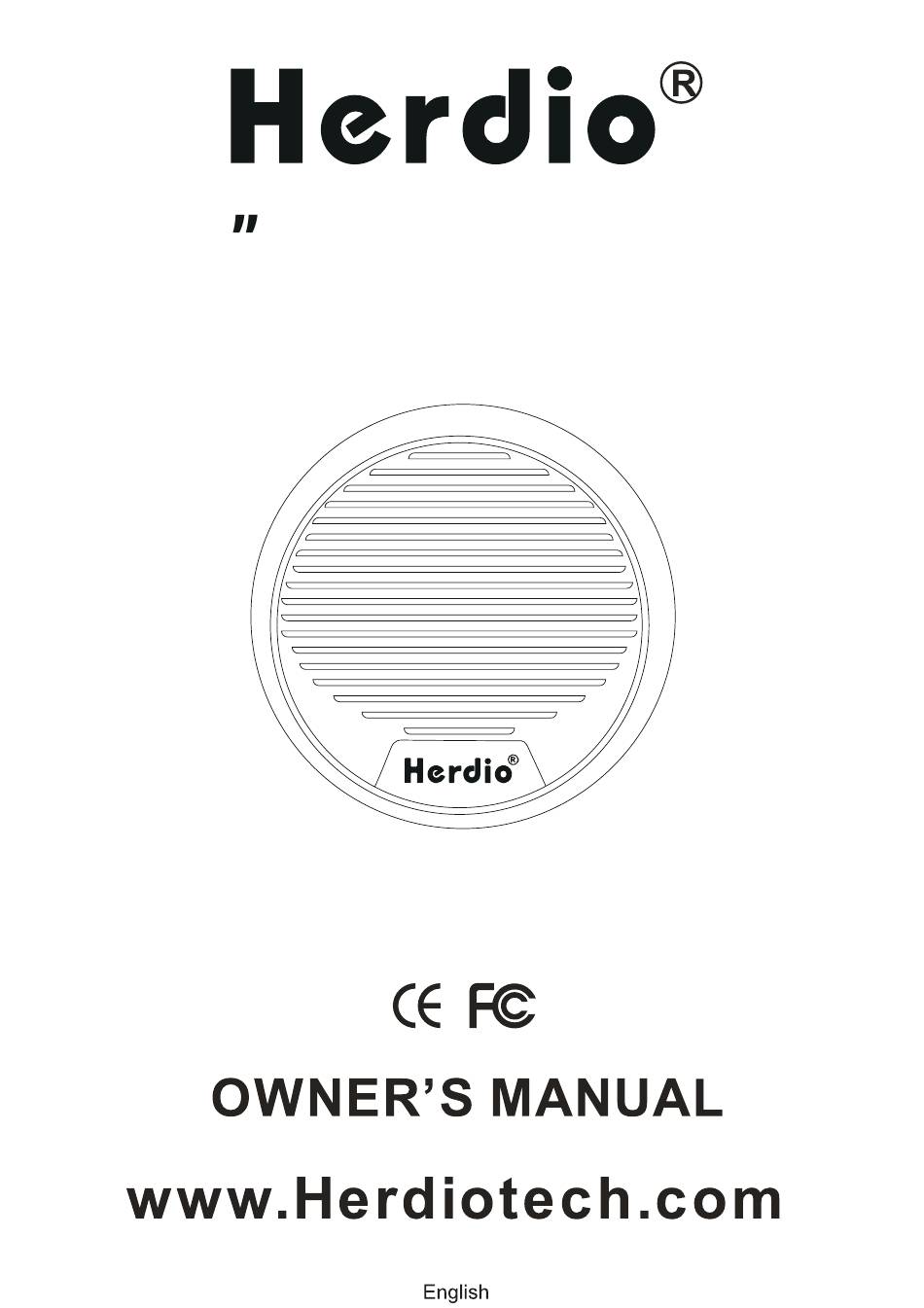

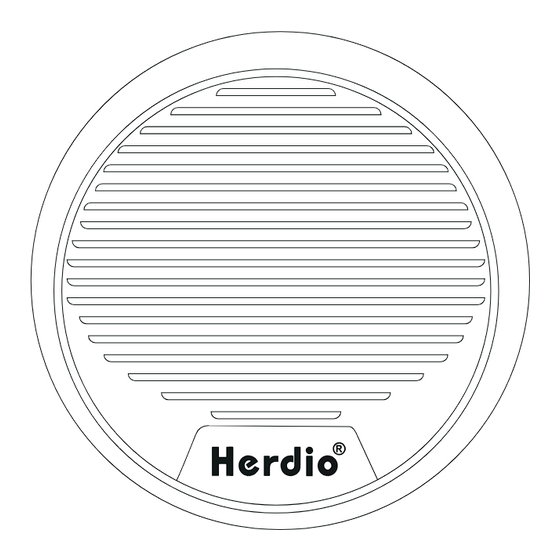

- Page 1 3 WATERPROOF MARINE SPEAKERS HMS-60B/HMS-61G...
-
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS MODEL NO: HMS-60B HMS-60G SPEAKER SIZE : 2.12 Inch 2.12 Inch MAX Power Output: 140W 140W 2.12 Inch Sensitivity: 80db 80db 3.38 Inch Impedance: 4 Ohms 4 Ohms Frequency Response: 120-20KHZ 120-20KHZ Cut-Out Diameter: 3.38 Inch(86 CM) 3.38 Inch(86 CM) -
Page 6: Bluetooth Operations
INSTALLATION GUIDE 1.Only for：HMS-60B/HMS-60G Cut the drywall Note:Always allow at least one-half inch between a wall stud and the speaker cutout Connect the speaker wires to the speaker. or the locking tabs will not be able to swivel into place. -
Page 7: Product Parameters
.Then insert the power AC Adapter to the amplifier box Power Jack, Please double check the wiring. 2. The Herdio Bluetooth amplifier Box is waiting for being paired right after it is powered on. 3. Turn on the Bluetooth on your Bluetooth device, scan for the unit Bluetooth Name “Herdio”, Click it to connect.
