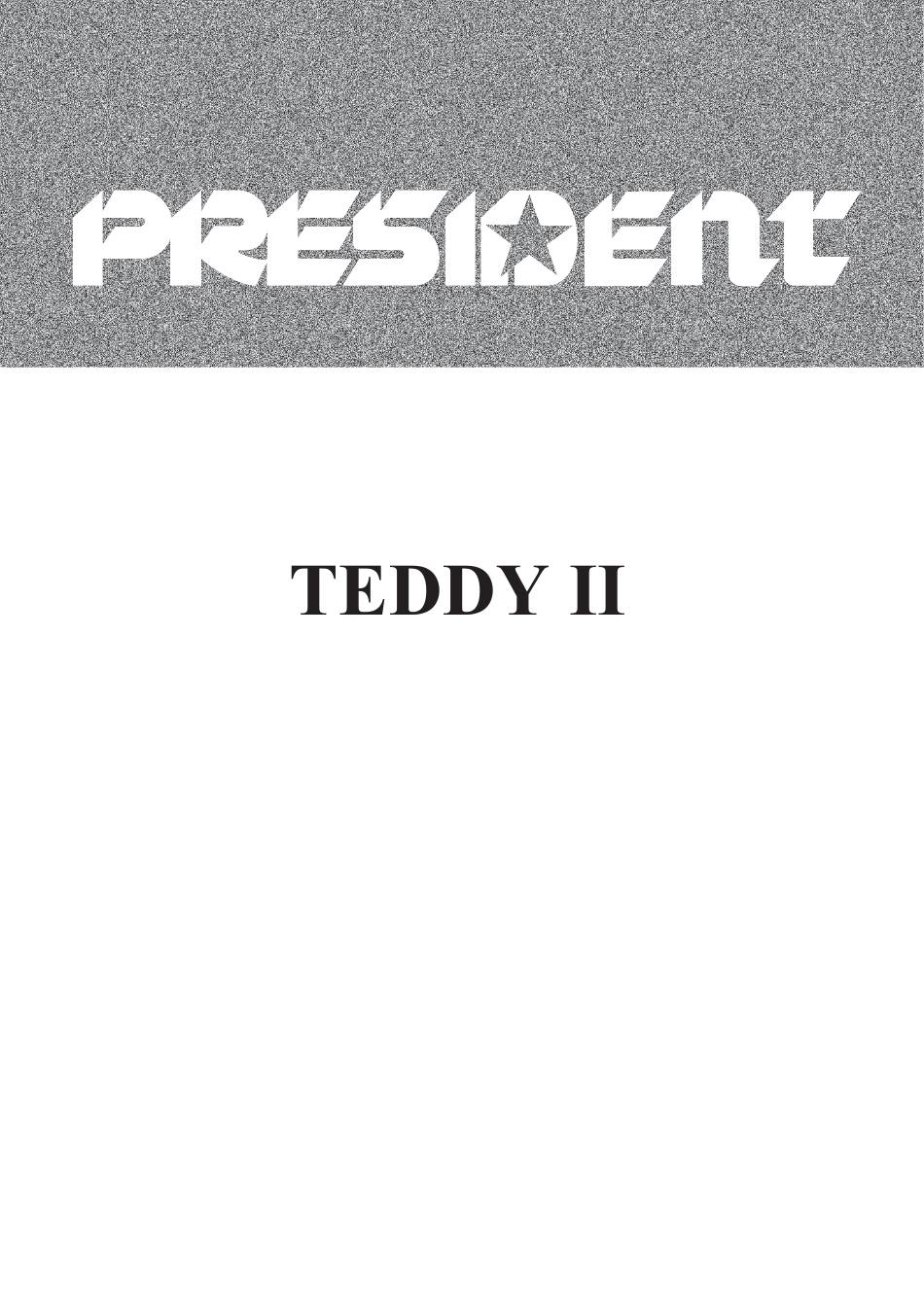

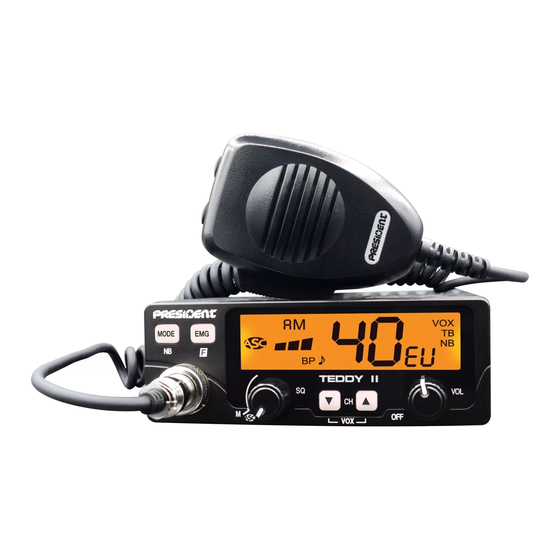

  • Page 1 SERVICE MANUAL...

  • Page 2: Specifications

    TEDDY II SPECIFICATIONS General Frequency coverage 26.965 ~ 27.405MHz Operating mode F3E (FM), A3E (AM) Antenna Impedance Working temperature –10 ~+55 Frequency Tolerance Better than 0.002% Input Voltage 13.2V Grounding Method Negative ground 13.2V : 2.0A Max. Transmitter Current Drain...

  • Page 3: Circuit Description

    TEDDY II CIRCUIT DESCRIPTION Frequency configuration The receiver utilizes double conversion. The first IF is 10.695MHz and the second IF is 455kHz. The first local oscillator signal is supplied from the VCO module. The VCO module in the transmitter generates the necessary frequencies. Fig. 1 shows the frequencies.
  • Page 4 TEDDY II CIRCUIT DESCRIPTION 1ST MIXER IF AMP CB100 RF AMP RF AMP RF AMP Q104 CF100 Q103 10.695MHz Q113 Q114 Q105 455kHz CF500 ANT SW OSC 10.240MHz 1st Local OSC (VCO MODULE) JACK(EXT SP ELECTRICAL VCO MODULE FM AF...

  • Page 5: Power Supply

    TEDDY II CIRCUIT DESCRIPTION Power Amplifier Circuit The transmit output signal from the VCO module passes through the amplified (Q110) and amplified by Q121. The amplified signal goes to the final amplifier (Q120) through a low-pass filter. The lowpass filter removes unwanted high-frequency harmonic components, and the resulting signal is transmitted through the antenna terminal.
  • Page 6 TEDDY II CONT UNIT Designators Comment Footprint C800 102P S0402 C801 103P S0402 C802 225PA S0402 C803 103P S0402 C804 103P S0402 C805 475PC S0603 C806 103P S0402 C807 102P S0402 D800 DLS0603-0010 SD0603(LED) D801 DLS0603-0010 SD0603(LED) D802 DLS0603-0007 SD0603(LED)

  • Page 7: Main Unit

    TEDDY II Designators Comment Footprint S803 CGJ-QCKG-0039 U800 TM1722 SOL-24 VOL UNIT Designators Comment Footprint J900 SQPCB CON3-1.27 J901 VOLPCB CON3-1.27 J902 DC SW SIP2H W900 RP09110SNBX(B103a,KA20A11) VRHK W901 RP09110NOBX(B103a,KA20A11) VRHK9.5 MAIN UNIT Designators Comment Footprint C100 33P/J S0603 C101...
  • Page 8 TEDDY II Designators Comment Footprint C148 102P/J S0402 C149 221P/J S0402 C150 102P S0402 C151 221P/J S0402 C152 103P S0402 C153 104PC S0402 C155 15P/J S0402 C156 22P/J S0402 C157 101P/J S0402 C158 101P/J S0402 C159 101P/J S0402 C160 101P/J...
  • Page 9 TEDDY II Designators Comment Footprint C225 103P S0402 C226 82P/J S0603 C227 24P/J S0603 C228 39P/J S0603 C229 5P/B S0603 C230 472P S0402 C233 561P2AJ S0805 C234 331P/J S0402 C236 103P S0603 C241 221P/J S0603 C242 221P/J S0603 C244 224PC...
  • Page 10 TEDDY II Designators Comment Footprint C332 103P S0603 C333 102P S0603 C334 103P S0603 C336 221P/J S0402 C337 103P/J S0402 C338 123P S0402 C339 103P S0402 C340 561P/J S0402 C341 475PA/M S0402A C342 475PA/M S0402A C347 475PC S0603 C351 103P...
  • Page 11 TEDDY II Designators Comment Footprint CF100 FCI-0006 K455E5 D100 1SS400 SOD523 D102 1SS400 SOD523 D103 1SS400 SOD523 D105 1SS400 SOD523 D106 1SS400 SOD523 D108 1SS356 SOD323 D110 1SS356 SOD323 D115 DS-0251 SOT323A D116 DS-0251 SOT323A D119 1SS400 SOD523 D122 BA892...
  • Page 12 TEDDY II Designators Comment Footprint L121 LAI-0076 L122 LAI-0076 L123 LAI-0236 L127 LAI-0239 L128 LWS1008-0031 LWS1008.2520 L129 6.8uH S0603 L130 LWS0805-0059 LWS0805.2012 L131 220nH S0402 L300 6.8uH S0603 L301 6.8uH S0603 L500 LWS0630-0001 INDUCTORS-7.8*7.0MM L700 CB-LJX-0097 Q100 RT1N141U EMT3 Q101...
  • Page 13 TEDDY II Designators Comment Footprint R112 470R S0402 R113 470R S0402 R114 470R S0402 R115 S0402 R116 S0402 R117 S0402 R118 S0402 R119 S0402 R120 S0402 R121 S0402 R122 RTS-0023 S0402 R123 S0603 R124 S0402 R125 S0402 R127 S0603 R128...
  • Page 14 TEDDY II Designators Comment Footprint R174 S0402 R175 S0402 R176 S0402 R177 S0402 R178 S0402 R179 S0402 R180 S0402 R181 S0402 R182 S0402 R183 68K/D S0402 R184 S0402 R185 S0402 R186 330R S0402 R187 330R S0402 R188 470K S0402 R189...
  • Page 15 TEDDY II Designators Comment Footprint R324 S0402 R325 S0402 R326 S0603 R327 S0402 R328 S0402 R329 S0402 R330 S0402 R331 S0402 R332 S0402 R333 S0402 R334 S0402 R335 100K S0402 R336 S0402 R337 100K S0402 R338 S0402 R339 S0402 R340...
  • Page 16 TEDDY II Designators Comment Footprint R717 S0402 R718 S0402 R726 S0402 R728 S0402 R731 150K S0402 R732 S0402 R733 S0402 U100 TS-0461 SOT25 U101 AA32416 SSOP16 U102 TS-0454 SOT363 U103 QA8558 QFN4X4-20B U300 TS-0454 SOT363 U301 TS-0454 SOT363 U302 M62429...
  • Page 17 TEDDY II Testing Mode Adjusting Note Testing voltage 13.2V/Equipment HP8921A Test mode: When radio is off , press and hold the PTT+ MODE + EMG key and turn on radio, LCD shows “tS” in 5s, Press EMG MODE then full display, enter into the testing mode.
  • Page 18 TEDDY II PC board views...
  • Page 19 TEDDY II PC board views...
  • Page 20 TEDDY II PC board views...
  • Page 21 TEDDY II PC board views...
  • Page 22 TEDDY II PC board views...

  • Page 23: Schematic Diagram

    TEDDY II SCHEMATIC DIAGRAM L110 R112 R137 R147 R113 R138 R164 R175 R117 R156 R157 C100 C129 330R C156 C131 C132 C217 C165 470R 220R 100R R110 470R R142 L109 6.8uH R119 33P/J C101 39P/J 22P/J 12P/J 12P/J 20P/J 20P/J...
  • Page 24 TEDDY II SCHEMATIC DIAGRAM AM MOD 13.8V C327 R348 RAF-I AF-O 683PC R300 T303 C311 R366 R304 R307 475PA/M C300 R314 Q302 R380 Q306 D303 R315 103P U300 R355 TS-0429 ATMUT C330 2SA2022 C332 C333 103P 103P 102P R305 AF-I...
  • Page 25 TEDDY II SCHEMATIC DIAGRAM PWR.SCH DC-SW C704 DC-SW DC-SW R712 RXEN 103P RXEN RXEN TXEN TXEN TXEN NB EN NBEN NBEN C710 475PA/M C708 AF.SCH T701 103P C706 FM-TKB UART R705 FM-TKB FM-TKB 471P PA.EN D700 PA.EN PA.EN RTAF-SEL 1SS372...
  • Page 26 TEDDY II SCHEMATIC DIAGRAM U501 D500 U500 L500 B340A 13.8V ICS-0730 J500 ME6118A50B3G Vout Vout LWS0630-0001 J501 CGJ-JCJ-0035 D501 LMA-0008 B340A C500 C533 C501 C502 C503 C532 C504 C507 E500 E501 E505 C505 E504 E503 103P 104P 103P 104P 103P...
  • Page 27 TEDDY II SCHEMATIC DIAGRAM LED800 DS800 CB-BGB-0028 HSR32661-UFTSZ R819 R821 R823 R825 R827 R829 680R 680R U800 TM1722 T800 R820 R822 R824 R826 R828 R830 D800 D801 D802 D803 D804 D805 DLS0603-0010 DLS0603-0010 DLS0603-0007 DLS0603-0007 DLS0603-0003 DLS0603-0003 C802 225PA R837...
  • Page 28 TEDDY II SCHEMATIC DIAGRAM J900 VOLPCB J902 DC SW W900 RP09110SNBX-V01-1479(B103a,KA20A11) J901 SQPCB W901 RP09110NOBX-V01-1478(B103a,KA20A11)

  • Page 29: Block Diagram

    TEDDY II BLOCK DIAGRAM FM-TBK Y101 Y100 (455KHz) 10.24MHz NB RF AMP NB RF AMP NB DET NB ATT MAIN UNIT Q106, Q107 Q115, Q1116 2nd LO TBK SW D115 Q109 Q314 Q108 Q117 (10.24MHz) JK300 JACK(EXT SP) POWER AMP IC...
