Carrier Deluxe 58DXC Service And Maintenance Instructions

58DXC, 58SXC
Deluxe Gas-Fired Condensing Furnaces
HEATING & COOLING
Service and Maintenance Instructions
For Sizes 040-100, Series 100
NOTE:
Read the entire instruction manual before starting the
installation.
SAFETY CONSIDERATIONS
Installing and servicing heating equipment can be hazardous due to
gas and electrical components.' Only trained and qualified person¬
nel should install, repair, or service heating equipment.
Untrained personnel can perform basic maintenance functions
such as cleaning and replacing air filters. All other operations must
be performed by trained^rvice personnel. When working on
heating equipment, obsen^recautiohs in the literature, tags, and
labels attached to or shipped with the unit and other safety
precautions that may apply.
Follow all safety codes, including NFPA 54/ANSI Z223.1-1988,
National Fuel Gas Code. Wear safety glasses and work gloves.
Have a fire extinguisher available during start-up and adjustment
procedures and service calls.
Recognize safety information. This is the safety-alert symbol ^ .
When you see this symbol on the unit and in instructions or
manuals, be alert to the potential for personal injury.
Understand the signal word-DANGER, WARNING, or CAU¬
TION.' These words are used with the safety-alert symbol, DAN¬
GER identifies the.most serious hazards which will result in severe
personal injur^ or death. WARNING signifies hazards that could
result in personal injury or death. CAUTION is used to identify
unsafe practices, which would result in minor personal injury or
product and property damage.
A WARNING
The ability to properly perform maintenance on this equip¬
ment requires certain expertise, mechanical skills, tools, and
equipment. If you do not possess these, do not attempt to
perform any maintenance on this equipment other than those
procedures recommended in the User's Manual. FAILURE
TO FOLLOW THIS WARNING COULD RESULT IN
POSSIBLE DAMAGE TO THIS EQUIPMENT, SERIOUS
PERSONAL INJURY, OR DEATH.
A WARNING
Never store anything on, near, or in contact with, the furnace,
such as:
1. Spray or aerosol cans, rags, brooms, dust mops, vacuum
cleaners, or other cleaning tools.
2. Soap powders, bleaches, waxes or other cleaning com¬
pounds, plastic or plastic containers, gasoline, kerosene,
cigarette lighter fluid, dry cleaning fluids, or other volatile
fluids.
3. Paint thinners and other painting compounds, paper bags or
other paper products.
Failure to follow this warning can cause corrosion of the heat
exchanger, fire, personal injury, or death.

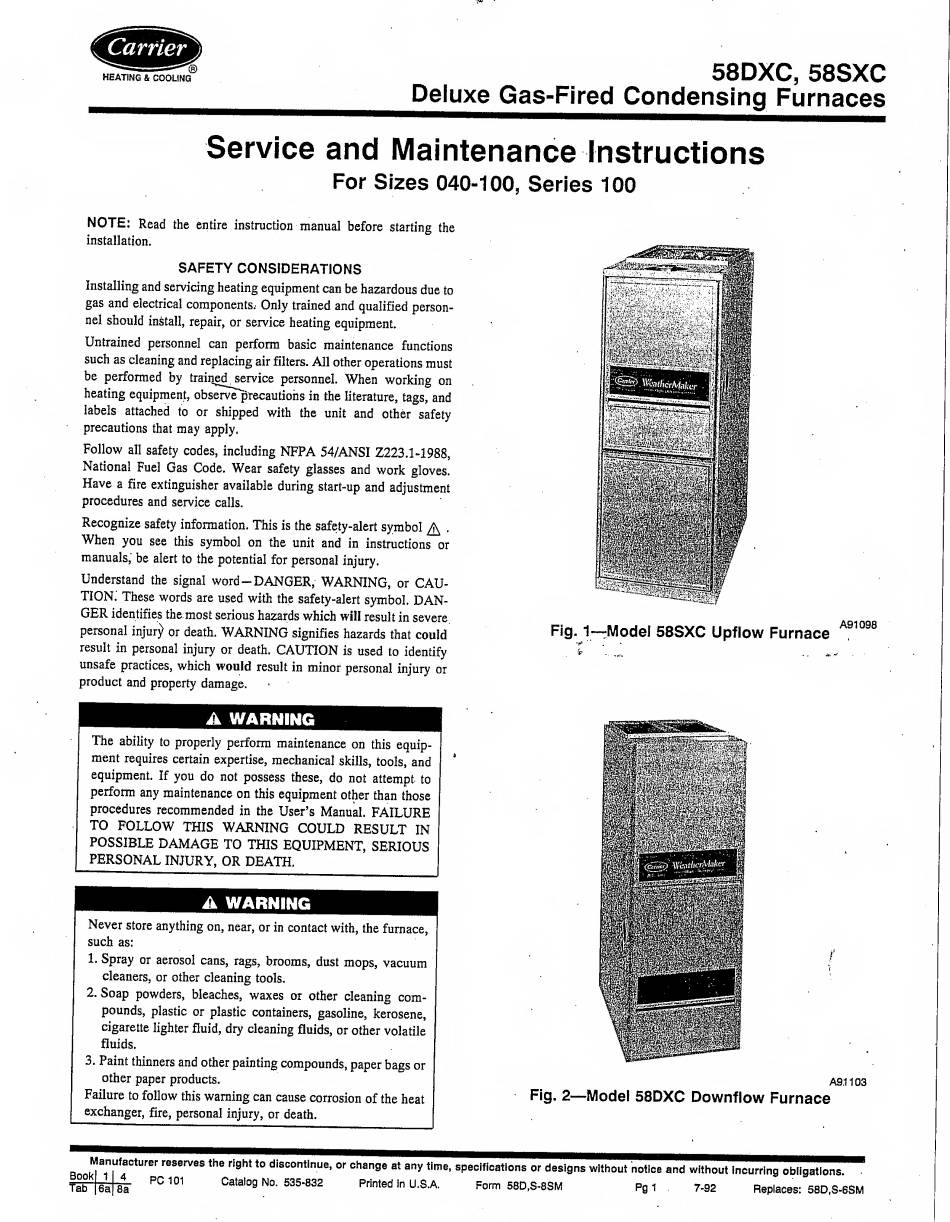

Fig. 2—Model 58DXC Downflow Furnace
Manufacturer reserves the right to discontinue, or change at any time, specifications or desigtTwtthout^oean^Ilt^^
PC 101 Catalog No. 535-832 Printed in U.S.A. Form 58D,S-8SIVI
Book
1 4
Tab
6a 8a
pgi
7-92
Replaces: 58D,S-6SM
