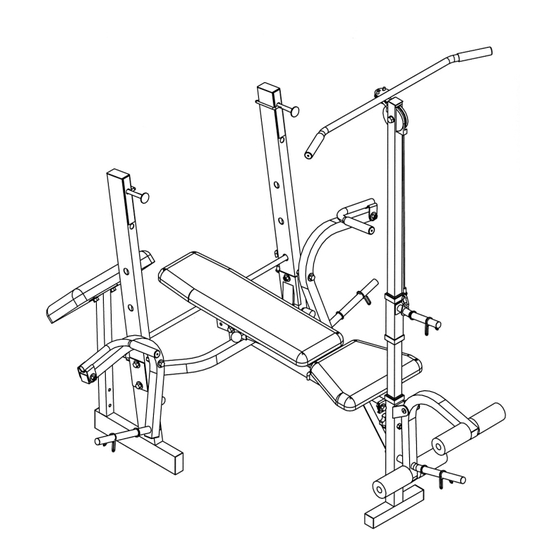

  • Page 1 Assembly Instruction Exploded Diagram Parts List Warranty Ordering Parts Model WM-348 Retain This Manual for Reference May 02, 2002 IMPEX INC. OWNER'S 14777 Don Julian Rd., City of Industry, CA 91746 Tel: (800) 999-8899 Fax (626) 961-9966 MANUAL www.impex-fitness.com info@impex-fitness.com...

  • Page 2: Table Of Contents

    EXPLODED DIAGRAM....................10 PARTS LIST......................….11 WARRANTY......................….12 ORDERING PARTS....................….12 BEFORE YOU BEGIN Thank you for selecting the POWERHOUSE WM-348 BENCH by IMPEX FITNESS PRODUCTS. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction.

  • Page 3: Important Safety Notice

    PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

  • Page 5: Assembly Instructions

    ASSEMBLY INSTRUCTION Tools required assembling the machine: Two Adjustable Wrenches and Allen Wrenches STEP 1 (SEE Diagram 1) A.) Connect the two Rear Upright Beams (#1) by a Cross Brace (#59) in the Mid-span. Secure them with two M10 x 2 3/8” Hex Bolts (#2), four ∅ ¾” Washers (#3), one Bracket (#7), and two M10 Aircraft Nuts (#4) on each end of the Cross Brace.
  • Page 6 A.) Connect the Front Stabilizer (#42) to the Main Seat Support (#52) and secure them with two M10 x ¾” Hex Bolts (#46), four ∅ ¾” Washers (#3), and two M10 Aircraft Nuts (#4). DO NOT tighten the nuts and bolts yet. B.) Connect the Main Seat Support (#52) to the open bracket on the Cross Brace (#59).
  • Page 7 A.) Attach a ∅ ¾” Washer (#3) onto a M10 x 6 ¼” Hex Bolt (#54). Insert the Bolt through the Butterfly (#17). Place a M10 Regular Nut (#57) onto the Bolt. Then insert the Bolt through the hole on the Rear Upright Beam (#1). Secure the Bolt with a Lock Knob (#8) behind the Upright Beam.
  • Page 8 A.) Attach the hole-side of the Backrest Supports (#60) onto both ends of the Pivot on the Main Seat Support (#52). The other side rest against the Backrest Adjustment Bar (#10). B.) Place the Backrest Board (#18) onto the Backrest Supports (#60). Secure it with four M6 x 1 3/8”...
  • Page 9 A.) Attach the ball end of the Cable to the Pulley (#28). Place the Pulley in the open slot on the Lat Bar Frame (#31). Secure it with one M10 x 2 1/8” Hex Bolt (#32), two Bushings (#29), two ∅ ¾” Washers (#3), and one M10 Aircraft Nut (#4). B.) Slide the Weight Holder (#33) onto the Lat Bar Frame from the bottom.
  • Page 10 A.) To store the bench in a vertical position, remove the Arm Curl and the Lat Bar Frame from the bench and place them onto the storage posts on the Rear Upright Beams. B.) Pull out the 3” Lock Pin (#58) on the Main Seat Support to fold up the bench. Make sure to re-insert the Lock Pin on the bracket to secure the vertical position.

  • Page 11: Exploded Diagram

    PARTS LIST...
  • Page 12 KEY NO. DESCRIPTION QUANTITY Rear Upright Beam M10 x 2 3/8” Hex Bolt ∅ ∅ ∅ ∅ ¾” Washer M10 Aircraft Nut 1 5/8” x 3 1/8” Square End Cap 1 ¼” Square End Cap Bracket Lock Knob ∅ ∅ ∅ ∅ 1” Round End Cap Backrest Adjustment Bar Bar Catch Panel ∅...

  • Page 13: Warranty

    No other warranty beyond that specifically set forth above is authorized by IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.
