- Page 1 INSTALLATION INSTRUCTIONS CTS602 HMI BY NILAN VP 18 M2- EK Version 5.00 - 01.05.2024 M24 VP 18 M2 EK GB...
-
Page 2: Table Of Contents
Table of contens General information Important information ..................................4 Safety ..........................................4 Power supply ......................................4 Heat pump domestic hot water ................................. 4 Water quality requirements ..................................5 Requirements to quality of water ..............................5 Introduction ........................................5 Documentation ..................................... 5 Unit type ........................................ - Page 3 Roof terminals ....................................24 Installation example ..................................24 Balancing ........................................25 Important information ..................................25 Troubleshooting Emergency mode ...................................... 26 Emergency mode domestic hot water ............................26 Domestic hot water ....................................27 Errors and solutions domestic hot water ............................27...
-
Page 4: General Information
General information Important information CAUTION Do not turn on the power supply for the unit until the hot-water tank and central heating circuit is filled with water. WARNING The electric boiler for the central heating must not be activated until the system has been filled with water and the cen- tral heating circuit has been vented. -
Page 5: Water Quality Requirements
Requirements to quality of water The hot water tank in the Nilan units is made of steel, which has been given a double enamelling, to ensure an extra long service life. In addition, the tank is equipped with a sacrificial anode as extra protection. It is important that the sacrificial anode is replaced regularly. -
Page 6: Unit Type
Unit type Product description VP 18 M2 EK is a ventilation unit with active heat recovery, that has a built-in heat pump, which is used for the production of domestic hot water, but which is able to heat and cool the home via the ventilation air. The unit is also equipped with an electric boiler used for space heating via a waterborne central heating system (radiators or floor heating system). -
Page 7: The Unit
The unit 1. Duct connections 11. 180 l hot water tank 2. Filter change cover 12. Condensate drain with water trap 3. Control panel (HMI touch-panel) 13. Electronically monitored sacrificial anode 4. 8-pin plug 14. Emergency mode (domestic hot water) 5. -
Page 8: Temperature Sensor Overview

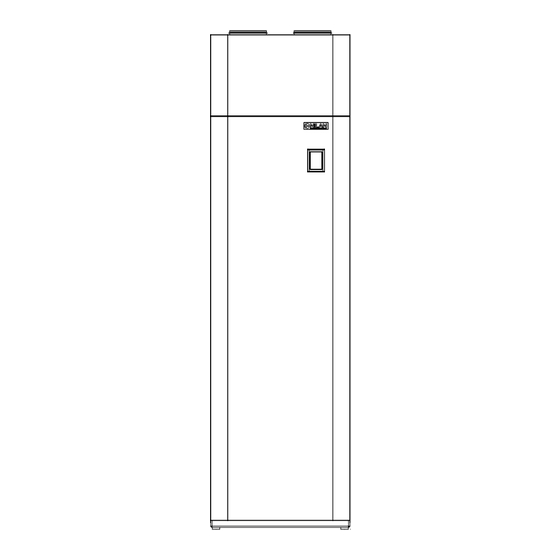

Temperature sensor overview T2 T1 Temperature sensors inside the unit T1: Outdoor air inside duct connection T2: Supply air T5: Condenser T6: Evaporator T10: Extract air RH: Humidity sensor Temperature sensors in the hot water tank T11: Top of tank T12: Bottom of tank T14: Supply flow floor heating Dimensional drawing VP 18 M2 EK... -
Page 9: Accessories
You can control your ventilation unit with a smartphone app via a gateway connection. Connect the Nilan Gateway to a CTS400 or a CTS602 control system. This way, a cloud connection to the unit can be established. The Gateway is available in two different versions - with either a LAN or a WiFi connec- tion to a router. -
Page 10: Safety Group
This should be placed in the outdoor air intake, which will reduce the pollen count in the dwelling. Trolley A Nilan trolley makes it easy to transport the heavy units into the home, without having to carry out heavy lifting yourself with the risk of injury. -
Page 11: Set-Up
45° from vertical. You can lift the unit from the pallet and transport it into the building by using a Nilan lifting dolly. You thereby avoid heavy lifting. Positioning the unit ATTENTON A free space is recommended in front of the ventilation unit of 60 cm. -
Page 12: Electrical Installation
Electrical installation Safety ATTENTION All work must be carried out by qualified persons and in compliance with existing legislation and regulations. ATTENTION It is important that the power is off, if you do work to the electrical components of the unit. It is important to check that wires are not damaged or squeezed during connection and use. -
Page 13: Hmi Control Panel
(according to the wiring diagram), where the wires from the front-connection are removed. Nilan offers a connection cable with RJ12 plugs of 10 m and 20 m, respectively. It is also possible to customize a cable up to 50 m in length. -
Page 14: Electrical Connection Accessories
Electrical connection accessories User selection 1 User selection 1 is connected via the 8-pin plug mounted on top of the unit. The user selection functions are used to override normal operation. The input signal must come from a potential-free switch. When closed, the function is activated with the settings selected in the control panel under Service / User selection. -
Page 15: Modbus
Modbus The CTS602 controller has an open Modbus RS485 communication, that allows you to communicate with it and control the ventilation unit via external control systems. We refer to the software manual and the Modbus protocol for further information about settings and registers. Connection via the 8-pin plug: Modbus is connected in following pins: 1. -
Page 16: External Heat Supply
External heat supply The unit can control an external heat supply, such as electric radiators or an underfloor heating system. This feature is used in the cases where the unit contributes to the heating of the house via a heat pump and/or a after-heating element. -
Page 17: Plumbing Installation
Plumbing installation Condensate drain Important information VP 18 M2 EK is supplied with a reinforced 20 mm condensation drain pipe with built-in water lock. ATTENTION The condensate drain should be installed with an even fall of at least 1 cm per m to the nearest drain. Similarly, the overflow from the safety valve must be led to a prominent drain. -
Page 18: Hot Water Tank
All work must be performed by qualified personnel and in accordance with relevant legislation and regulations. Nilan's hot water tanks are double-enamelled, ensuring long life. The efficient foam insulation protects against unnecessary heat loss. All connection nozzles for water have 3/4" thread and are located in the tank bottom. -
Page 19: Requirements To Quality Of Water
Requirements to quality of water The hot water tank in the Nilan units is made of steel, which has been given a double enamelling, to ensure an extra long service life. In addition, the tank is equipped with a sacrificial anode as extra protection. It is important that the sacrificial anode is replaced regularly. -
Page 20: Connections Overview
(3 / 6 / 9 kW) 6. Pressure expansion vessel 8L 7. Automatic air vent valve 8. Temperature sensor 9. Manometer 10. Safety valve 2,5 Bar 11. Particle filter (not Nilan delivery) 12. Excess flow valve (not Nilan delivery) -
Page 21: Plumbing Connections Accessories
Plumbing connections accessories Safety group CAUTION Safety group must be installed in connection with hot water tanks. When water is heated to 60 °C, it expands by 2%. A pressured tank could burst without a safety valve keeping excess water out. The safety valve should therefore drip during warming up. -
Page 22: Checklist For The Central Heating System Before Start-Up
Checklist for the central heating system before start-up The checklist is used before start-up and delivery of the ventilation unit and it should always be filled in. Please consult the other sec- tions in the manual for additional elaboration. Electrical connection and control system Checked —... -
Page 23: Ventilation Installation
This is to avoid vibrations from the unit being transmitted to the duct system. It will also make it easier to move the unit, which may be necessary during future services of the unit. Nilan can supply Soundflex tubes that you can use as flexible connections between the ventilation unit and the duct system. They will also reduce sounds from the system considerably. -
Page 24: Extract Air
Extract air Install the extract air valves in high-humidity rooms and place them strategically where they can extract humid and vitiated air from the dwelling/building most efficiently. High-humidity rooms are, for example: • Bathroom • Lavatory • Kitchen • Utility room Supply air Install supply air valves in living areas. -
Page 25: Balancing
Balancing Important information ATTENTION To ensure the ventilation system operates optimally, it is important that it is balanced correctly. We recommend that ex- perts do this. It is important to measure the total supply air and the total extract air. The system must have a minimum vacuum, which means it draw out more air than it blows in. -
Page 26: Troubleshooting
Troubleshooting Emergency mode Emergency mode domestic hot water If an error occurs in the control system or components in the VP18 M2, and the unit therefore stops, it will not be able to produce do- mestic hot water. If the installer is not able to come right away or the error happens outside the opening hours, and you therefore cannot contact the in- staller, there is a possibility to get hot water by setting the unit into emergency mode. -
Page 27: Domestic Hot Water
Domestic hot water Errors and solutions domestic hot water Problem Possible cause Solution The unit produces insufficient domestic The filters may be blocked so that insuf- Change the filters and, if necessary, hot water. ficient air is reaching the unit. change the filter change period to a shorter Interval. - Page 28 25 St Leonards Road Horsham West Sussex RH13 6EH Tel: +44 (0) 14 03 56 30 45 service@slservicesgroup.com or info@slservicesgroup.com www.slservicesgroup.com Ireland: Nilan Ireland Ballylahive, Abbeydorney Tel: +353 (0) 87 97 98 361 maurice@nilan.ie www.nilanireland.ei Nilan A/S Nilanvej 2 8722 Hedensted Danmark Tlf.
