Operating Instructions

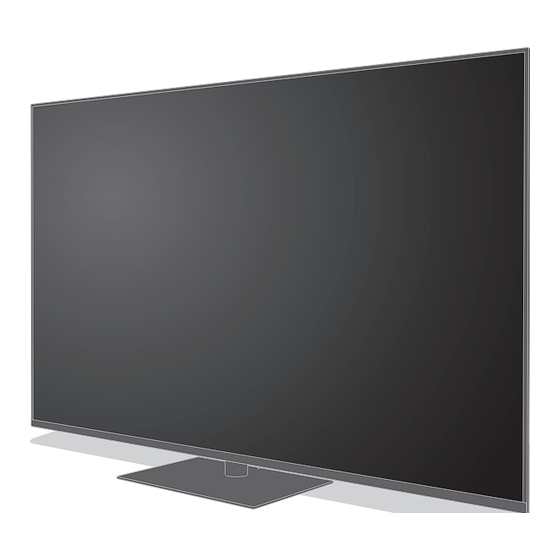

LED TV
LX900H series
For more detailed instructions, please refer to [eHELP]
(Built-in Operating Instructions).
How to use [eHELP]
≥
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain them
for future reference.
Please carefully read the "Safety Precautions" of this manual before use.
The images shown in this manual are for illustrative purposes only.
F0322HN0
(p. 20)
English
TQB4GA0067
English
Advertisement
Table of Contents
Related Manuals for Panasonic LX900H Series
Summary of Contents for Panasonic LX900H Series
- Page 1 How to use [eHELP] (p. 20) ≥ Thank you for purchasing this Panasonic product. Please read these instructions carefully before operating this product and retain them for future reference. Please carefully read the “Safety Precautions” of this manual before use.
-
Page 2: Table Of Contents
Contents Be Sure to Read Important Notice ·················································· 3 Safety Precautions ·············································· 5 Accessories ························································ 8 Installing the TV ·················································· 8 Installing the wall-hanging bracket ·························10 Connections ······················································10 Identifying Controls ·············································16 First time Auto Tuning ·········································19 Watching TV ······················································20 How to Use eHELP ·············································20 FAQs ·······························································21 Maintenance ······················································22 Specifications ····················································22... -
Page 3: Important Notice
Bluetooth SIG, Inc. and any use of Internet apps, voice control function are provided by their such marks by Panasonic Corporation is under license. respective service providers, and may be changed, interrupted, or discontinued at any time. - Page 4 Service as well as Video. No license is granted or shall be implied for any to protect the rights or property of Panasonic. If you wish other use. to know more about the processing of your information in...
-
Page 5: Safety Precautions
Disconnect the mains plug when cleaning the TV. ≥ Do not use an unapproved pedestal / mounting ≥ Do not touch the mains plug with wet equipment. Be sure to ask your local Panasonic ≥ hands. dealer to perform the setup or installation of approved wall-hanging brackets. - Page 6 • ALWAYS use furniture that can safely support physically damaged. If this occurs, contact your the TV. nearest Panasonic dealer immediately. • ALWAYS ensure the TV is not overhanging the During setup, make sure that all screws are securely ≥...
- Page 7 ∫ When not in use for a long time ∫ Bluetooth ® wireless technology Caution Caution This TV will still consume some power even in the Off The TV and the remote control use the 2.4 GHz radio ≥ mode, as long as the mains plug is still connected to a frequency ISM band (Bluetooth ®...
-
Page 8: Accessories
Accessories Installing the TV A Pedestal Standard accessories Remote Control (p. 16) N2QBYA000058 ≥ Pedestal (p. 8) B Assembly screw (4) Cable clamp (p. 13) M4 × 14 (mm) Batteries (2) (p. 17) ≥ Preparations Operating Instructions Do not hold the screen panel part. ≥... - Page 9 Assembling the pedestal Removing the pedestal ≥ Insert the pedestal firmly, otherwise it may come off Be sure to remove the pedestal in the following when setting up the TV. procedures when you use the wall-hanging bracket or repack the TV. Make sure that all screws are securely tightened.
-
Page 10: Installing The Wall-Hanging Bracket
≥ supplied with this TV. Please ensure that the unit is disconnected from the ≥ Please contact your local Panasonic dealer to purchase mains socket before attaching or disconnecting any the recommended wall-hanging bracket. cables. Check the terminal type and cable plugs are correct ≥... - Page 11 ∫ Mains lead Basic connections ∫ AV devices AC 220-240 V (DVD Recorder / Blu-ray Recorder, Set top box, etc.) 50 / 60 Hz For details, refer to [eHELP] (Search by Purpose > ≥ Watching > Basic > Basic connection). ∫...
- Page 12 Connections for 4K / HDR compatible Connection for VRR/AMD FreeSync™ equipment Premium compatible equipment HDMI cable HDMI cable 4K / HDR compatible equipment VRR/AMD FreeSync™ Premium compatible equipment Reproduces the image more precisely with the ≥ expanded colour gamut and more smoothly with the VRR (Variable Refresh Rate)/AMD FreeSync™...
- Page 13 ∫ Amplifier (listening with external speakers) Cable arrangement To enjoy multi-channel sound from external ≥ equipment (e.g. Dolby Digital 5.1ch), connect the ∫ Fixing the Mains lead using the cable clamp equipment to the amplifier. For information about the connections, read the manuals of the equipment and amplifier.
- Page 14 ∫ Fixing the cables using the cable clamp ∫ Fixing the Mains lead using the cable tie Attach the cable tie Keep pushing the tab Insert the cable tie of the mains lead in a hole Hole Bundle the cable Bundle the cables Set the tip in the hooks Hooks...
- Page 15 <Example> Connecting Bluetooth devices ® Registering Bluetooth devices ® This TV supports Bluetooth communications. ® Bluetooth devices that have been registered (paired) ® with this TV can connect to (communicate with) this TV. When registering (pairing) a Bluetooth ® device with ≥...
-
Page 16: Identifying Controls
Identifying Controls ∫ If registration fails If registration (pairing) is not completed properly, try registering again. Display the menu bar and select [Main Menu], and Remote Control then select [Setup] Setup Main Menu 1 select 2 access Select the remote control setting menu in [System Menu] Select [Pairing] ≥... - Page 17 5 Coloured buttons 23 BACK Returns to the previous menu / page. ≥ (red-green-yellow-blue) 24 SCENERY Used for the selection, navigation and operation of ≥ various functions. Displays the currently selected scenery. ≥ 6 MENU For details, refer to [eHELP] (Search by Purpose > ≥...
- Page 18 Voice controls Indicator / Control panel The TV recognizes speech when you talk into the voice When pressing 4, 5, 6 buttons, the control panel guide ≥ control microphone, enabling you to perform operations appears on the right side of the screen for 3 seconds such as changing TV channels, adjusting the volume, to highlight which button has been pressed.
-
Page 19: First Time Auto Tuning
First time Auto Select the following items Tuning Set up each item by following the on-screen instructions. Example: When the TV is turned on for the first time, it will automatically search for available TV channels and give Please select your viewing environment. options to set up the TV. -
Page 20: Watching
Watching TV How to Use eHELP [eHELP] is the detailed operating instructions built into Turn power on the TV, and gives a more detailed explanation for a better understanding of the operation of each feature. [eHELP] covers all models. Some features described ≥... -
Page 21: Faqs
≥ About the inquiry Check the mains lead is plugged into the TV and the ≥ mains socket. Please contact your local Panasonic dealer for ≥ assistance. Check the correct input mode is selected. ≥ If you make an inquiry from a place where this TV is ≥... -
Page 22: Maintenance
Maintenance Specifications First, remove the mains plug from the ∫ TV mains socket. Model No. TH-75LX900H Display panel, Cabinet, Pedestal Dimensions (W × H × D) Regular care: Gently wipe the surface of the display panel, cabinet, or 1 680 mm × 1 039 mm × 350 mm (With Pedestal) pedestal by using a soft cloth to remove dirt or 1 680 mm ×... - Page 23 Connection terminals Receiving systems / Band name AV IN Digital DTMB VIDEO 1.0 V[p-p] (75 Ω) Analogue AUDIO L - R PAL B / G, D / K, H, I 0.5 V[rms] SECAM B / G, D / K, K1 Channel coverage: UHF / VHF / Cable HDMI 1 / 2 / 3 / 4 input TYPE A Connectors...
- Page 24 Warranty Service purposes. Model Number Serial Number English Web Site: http://www.panasonic.com Printed in Malaysia © Panasonic Entertainment & Communication Co., Ltd. 2022...
