- Page 1 Panasonic INDIA 72-43D203-E41Z1 5RT41AB1T2A E7-32D23YY-IN2.2C IDX193739B 说明书 TH-32MS660DX/670DX/680DX TH-43MS660DX/670DX/680DX 143X210MM. 内容见下页。 80g书写纸 白底黑字。 否。 1.P34\P35需印刷在同一页，剪刀 线朝里。 刘德勇 2023.03...
- Page 2 7.596mm TH-32MS680DX TH-43MS680DX TH-32MS670DX TH-43MS670DX TH-32MS660DX TH-43MS660DX LED TV sub-rule1 of rule16 sub-rule1 of rule16...
-
Page 3: Table Of Contents
Table of Contents Chapter 1: Introduction Warning ................................Use Environment .............................. Cleaning ................................Hanging the TV Set on the Wall ........................Caution ................................Symbol ................................Installing/Removing Remote’s Batteries ......................Precautions for Using Remote Control ......................Standard Accessories............................Optional Accessories............................Pedestal Installation............................Chapter 2: Basic Features TV Controls............................... -
Page 7: Symbol
wipe down the cover Batteries (2) Note the correct (AAA size) polarity (+ or -) -
Page 8: Standard Accessories
AV IN Cable Batteries (2) TH-32MS660DX (AAA size) TH-43MS660DX: TH-32MS680DX TH-43MS680DX TH-32MS670DX TH-43MS670DX TH-32MS660DX TH-43MS660DX LED TV TH-32MS670DX TH-43MS670DX: 4 screws sub-rule1 of rule16 TH-32MS660DX/670DX/680DX:ST4x15 sub-rule1 of rule16 TH-43MS660DX/670DX/680DX:ST4x20 TH-32MS680DX TH-43MS680DX: 11.5 11.5... -
Page 9: Pedestal Installation
Screws (4 pcs) Screws (4 pcs) -
Page 10: Chapter 2: Basic Features Tv Controls
Note:The location and names of the function buttons and power button on the TV may vary according to TV model. Lit in Green: Working Status TV Control Button: button Turns the TV on or standby.The TV is on,press it, brings up the main menu or press to return to the previous menu Before enter menu, long press it for three seconds to display the Source Select. - Page 11 7.HEADPHONE Allow you to connect earphones to listen to the sound coming from the TV. Headphone cable HEADPHONE Note: Excessive sound pressure from earphones can cause hearing loss. 4.SPDIF The SPDIF socket can be used to connect a compatible digital audio receiver. Amplifier with speaker system SPDIF cable...
-
Page 12: Remote Control
(On/Off button) Turns the TV on or off. To mute and un-mute the sound. Switch profile. Enter into Using TV System menu. Start talking to Google Assistant of the TV. (up, down, left and right direction buttons) Highlights different items in the menu system and adjusts the menu controls. -
Page 13: Chapter 3: Connections And Setup
Chapter 3: Connections and Setup Network Connection Your TV will require an internet connection to operate all funct ions. Data usage charges may apply. Please refer to your Internet Service Provider (ISP) for additional information. To access the internet, you must subsc ribe high s peed broadband internet s ervice f rom y our internet s ervice provider. -
Page 14: Switching On
Switching on Follow the instructions on this page on how to switch on your TV set and the remote control before going on to following pages describing how to use the channel set-up procedure. 1. Insert two AAA batteries in the remote control. Precautions on using batteries: - Only use the battery types specified. -
Page 15: Google-Initial Setup
Google - Initial Setup When you turn on the TV for the first time,there will show Step 5: Read to accept the Google terms of service and a wizard to guide you to finish the following initial settings: privacy policy. Step 1: Select the menu language as you need. - Page 16 Google - Initial Setup Set up with the Google Home app. Turn on your phone Google Home app, Add users according to the mobile phone prompt, search for the machine name, Scan the QR code or enter the PIN code directly, and operate according to the mobile phone prompt. Step 1 Step 2 Step 3...
- Page 17 Google - Initial Setup Step 9 Step 10 Step 11 Step 12 Step 13 Step 14 Step 16 Step 15 Step 17 Step 18 Step 19...
- Page 18 Google - Initial Setup Step 1: Initial setup involves selecting all the settings required to be able to search for and store all the analogue channels you can receive. Make sure that the television is switched on and follow wizard opens, which guides you through the initial setup process.
-
Page 19: Chapter 4: General Operation

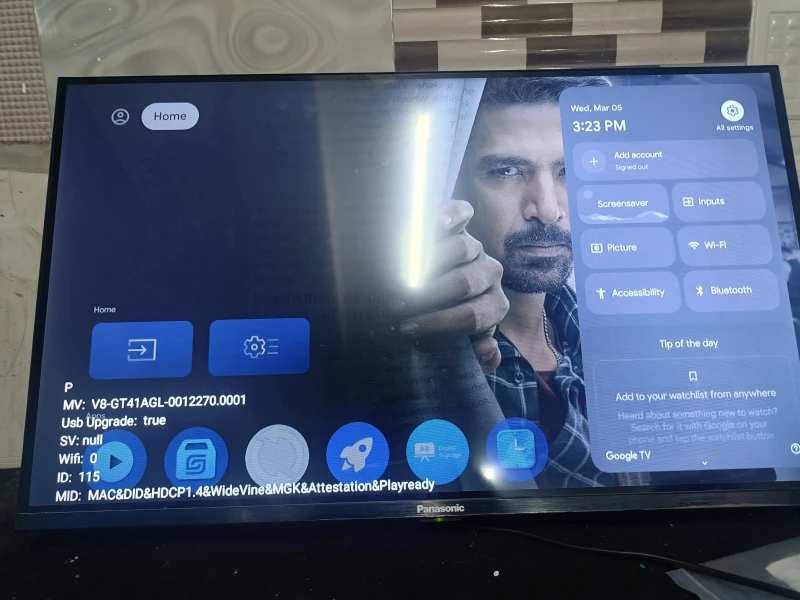

Chapter 4: General Operation Using Homepage Note: This manual is for common use. Figures and illustrations in this User Manual are provided for reference only and may dif er from actual product appearance. And for some models, certain options are not available. You can select all the features from homepage. - Page 20 MirAIe : A whole new world of convenience and comfort just opened up for you! Panasonic empowers your everyday life with seamless connectivity across all your Panasonic appliances with MirAle app. Customer can install MirAle app...
-
Page 21: Accessing Channels
Accessing channels Using the CH / buttons : pr ess the buttons on CH / the remote control or the corresponding buttons on the TV set to scroll through the channels. Watching connected devices Press in HOME page, then press ▲/▼ to select your desired source, and then press OK to confirm. -
Page 22: Channels Setup
Sound Channels Setup Analogue Setup Sound:Adjust sound and speaker-related options. - Analogue Auto Tuning: Press OK to start the automatic - Sound Mode: Optimize sound quality for general search process. The search may take a few minutes. content. Use to scroll through the sound preset During the process, you can press to choose YES settings: Standard, Speech, Music, Stadium and User. -
Page 23: Chapter 5: Other Information
Chapter 5: Other Information Multimedia Photo Scale,Looping mode,Subtitle, (MENU) Subtitle code,Audio track,info,Setting. Left Rotation,Right Rotation,Zoom+,Zoom-,Manual play, (MENU) Information,Play mode,Paly Interval,BGM Player Select OK button Select the Select the Document Video Photo Music Disk All Videos Disk: 1. Select Disk icon, then press OK button to choose folder. 2. -
Page 24: Audiolink Application Guide
AudioLink Application Guide AudioLink is a directional application for audio transmission. 3. Pay attention to the power supply of the device when It supports the setting of two working modes. The first mode you are using a mobile hard disk or a digital camera. is to push audio from the TV to the audio peripheral. - Page 25 Mode 2: Bluetooth playback device pushes audio to the TV. Step1：Start the app according to Step 1 in the above mode 1, Please search for PANASONIC TV-410731228 from your Bluetooth device and initiating pairing. If the TV is in the mode at this time, select and click the [SmartPhone to TV] button to pop up a prompt dialog, as shown below Figure4：...
- Page 26 Figure10 Uncheck Delete Device Uncheck Delete Device, if you click the connected device, you can disconnect the device, as shown below： Figure11 Figure12 Uncheck Delete Device, if you click on a device that is not connected, the TV will initiate pairing connection, and the Bluetooth interface on the TV and mobile phone will pop up Figure 8 and Figure 9 respectively.
-
Page 27: Troubleshooting
3. Main power is not connected. necessary legal information, please see the support page of this product at No picture, normal sound http://www.panasonic.com/middleeast/en/support.html 1. Adjust the brightness and contrast. 2. Broadcasting failure may happen. Normal picture, no sound 1. Press the Vol+ button to increase volume. -
Page 28: Chapter 6: Technical Information
Chapter 6: Technical Information Supported file format in Media Player 1.Video Maxbitrate Container Video Codec(flie type) Resolution ( Mbps ) depth 1920x1080 MPEG1 1920x1080 MPEG 1/2/4 1920x1080 MPEG-4 SP@HL 3.0 1920x1080 1920x1080 1920x1080 1920x1080 H.264 1920x1080 1920x1080 1920x1080 H.265 Main profile @ Level 4.1 125M H.265 H.265 Main10 profile @ Level... - Page 29 2.Audio 3. Video / Audio Container Container File extension Container Audio Codec(flie type) .ts, .tsv, .tsa wav: PCM / ADPCM / A- M2TS .m2ts law PCM / u-law PCM .mp4, .m4a, .m4p, .m4b, .m4r ADPCM IMA4 .3gp AMR-NB, AMR-WB/AMR- MKV,MKA .mkv .mk3d .mka .mks LPCM DVD LPCM...
-
Page 32: Specifications
Model No. TH-32MS660DX TH-43MS660DX Power Source 110 – 240 V ~ 50/60 Hz 110 – 240 V ~ 50/60 Hz Power Rating Standby condition 0.5 W 0.5 W Visible screen size 80 cm 108 cm Number of pixels 1366(W)x768(H) 1920(W)x1080(H) 72.59cm x19.18cm x 48.09cm 96.68 cm x26.61cm x 61.5cm (With Pedestal) - Page 33 Model No. TH-32MS670DX TH-43MS670DX Power Source 110 – 240 V ~ 50/60 Hz 110 – 240 V ~ 50/60 Hz Power Rating Standby condition 0.5 W 0.5 W Visible screen size 80 cm 108 cm Number of pixels 1366(W)x768(H) 1920(W)x1080(H) 71.57cm x18.33cm x 47.05cm 95.47 cm x20.96cm x 60.26cm (With Pedestal)
- Page 34 TH-32MS680DX TH-43MS680DX Model No. Power Source 110 – 240 V ~ 50/60 Hz 110 – 240 V ~ 50/60 Hz Power Rating Standby condition 0.5 W 0.5 W Visible screen size 80 cm 108 cm Number of pixels 1366(W)x768(H) 1920(W)x1080(H) 71.57cm x18.4cm x 47.03cm 95.47 cm x21.04cm x 60.22cm (With Pedestal)
- Page 37 Panasonic Life Solutions India Pvt. Ltd. http://www.panasonic.com TH-32MS680DX...
