Summary of Contents for ChiQ CCD601NBS

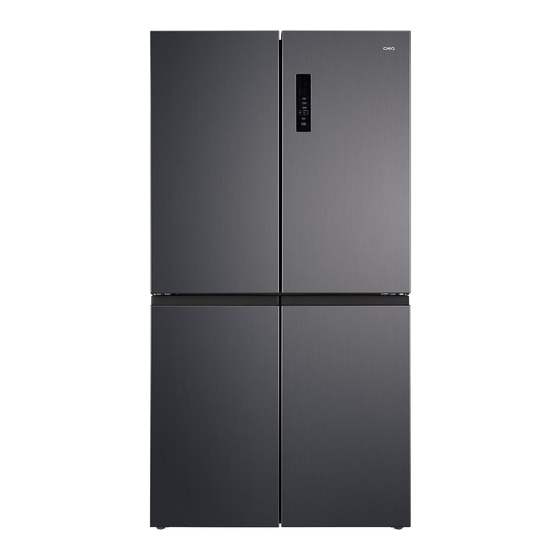

- Page 1 FOUR DOORS REFRIGERATOR USER MANUAL MODEL CCD601NBS CCD600NSS CCD599NBS CCD598NWS CCD597NB CCD596NS Customer Service 1300 796 688 www.chiq.com.au...
-
Page 2: Part Names And Locations
PART NAMES AND LOCATIONS Description Control Panel Fridge Glass Shelves Crisper Drawer Cover Crisper Drawers Fridge Door Shelves LED Light Freezer Trays LED Light Freezer Drawers Freezer Drawers Adjustable Feet IN ACCESSORY BAG: USER MANUAL, WARRANTY As the manufacturer holds the authority to redesign or modify its products without notice: Any modifications or upgrades of our products will result in this refrigerator varying slightly from this manual but the functionality will remain the same to that as set out within this manual. -
Page 3: Important Safety Instructions
• Report any notable defects with the appliance to Chiq or retailer as soon as it is noted. Failure to do so can result in a non-warranty claim. Keep all packaging materials in a safe location until the unit has been installed properly. - Page 4 This appliance is intended to be used in household and similar applications such as – staff kitchen areas in shops, offices and other working environments; – farm houses and by clients in hotels, motels and other residential type environments; – bed and breakfast type environments; – catering and similar non-retail applications. WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
- Page 5 R600a WARNINGS NOTE: This model uses R600a flammable refrigerant in its sealed system. The following must be observed for your safety: R600a Refrigerant Warning • This appliance contains 0.05kg R600a refrigerant which is environmentally friendly, but flammable. It does not damage the ozone layer, nor does it increase the greenhouse effect.
-
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS Before Using the Refrigerator • Remove the exterior and interior packing. • Before connecting the refrigerator to a power source, let the unit stand upright for approximately 4 hours to mitigate the possibility of a malfunction in the cooling system from improper handling during transportation. -
Page 7: Product Features
Product Features • Electronic control Adopting the electronic temperature control, the fridge-freezer is designed with a LED display screen, by which the temperature of each compartment and the working parameters can be managed and set. • Inverter technology Integrated with precise frequency conversion, noise reduction, energy saving, precise temperature control and other technologies, the fridge-freezer boasts of superior performances. -
Page 8: Function & Setting
OPERATING INSTRUCTIONS The unit has triple cooling system as right picture. The top compartment has pure fridge function. The bottom left compartment has pure freezer function. Bottom right compartment is variable temp zone, it can be adjusted from 5℃ to -24℃ to meet different storage requirements. Function &... -
Page 9: Temperature Setting
Temperature setting Before changing the temperature setting, please make sure the control panel isn’t locked and ECO mode, fast freezing & fast cooling aren’t active. Temp can’t be changed if any of the mode is active. 1）Fridge temperature setting Press the “Fridge”... - Page 10 4) Care+ setting Press the ‘Care+’ key (for less than 3s) to set vary function mode for crisper area in fridge compartment. Press the Care+ key to adjust function in cycle as following: Vegetables → Fruits → Chill → Vegetables. Vegetables setting will be suitable for green leaf and similar product.
-
Page 11: Fast Cooling
then press the “OK” key or wait for 5 seconds to validate the setting, with the icon of “ECO” stays On. 3）To exit “ECO” When the ECO function is active, press and hold Care+ key for 3 seconds until the icon of ECO starts flickering, and then press the “OK”... -
Page 12: Door Open Alarm
10s. Fault alarm In case E0, E1, E2, EH, or EC is displayed on the display panel, it indicates fault with the refrigerator. Please contact CHIQ service centre for a service call. -
Page 13: General Care And Maintenance
GENERAL CARE AND MAINTENANCE Cleaning the Refrigerator • Upon installation of your new appliance, it is recommended that it be cleaned thoroughly and properly maintained thereafter. • Turn off the refrigerator and then unplug the unit from the wall outlet. •... -
Page 14: Troubleshooting Guide
TROUBLESHOOTING GUIDE Problem Solution Power cord isn’t plugged in properly. The fridge has no power The circuit breaker tripped or a blown fuse. Try a different power point. There is no light in freezer compartment, only fridge ... - Page 15 The doors will not close Clean the seals and make sure they are dry before properly. closing the door/s. The storage basket and/or shelves are out of position. For any enquiries, please call the CHiQ Cusotmer care on: 1300 796 688...
-
Page 16: Customer Service
Customer Service 1300 796 688 www.chiq.com.au Changhong Electric (Australia) P/L all rights reserved.
