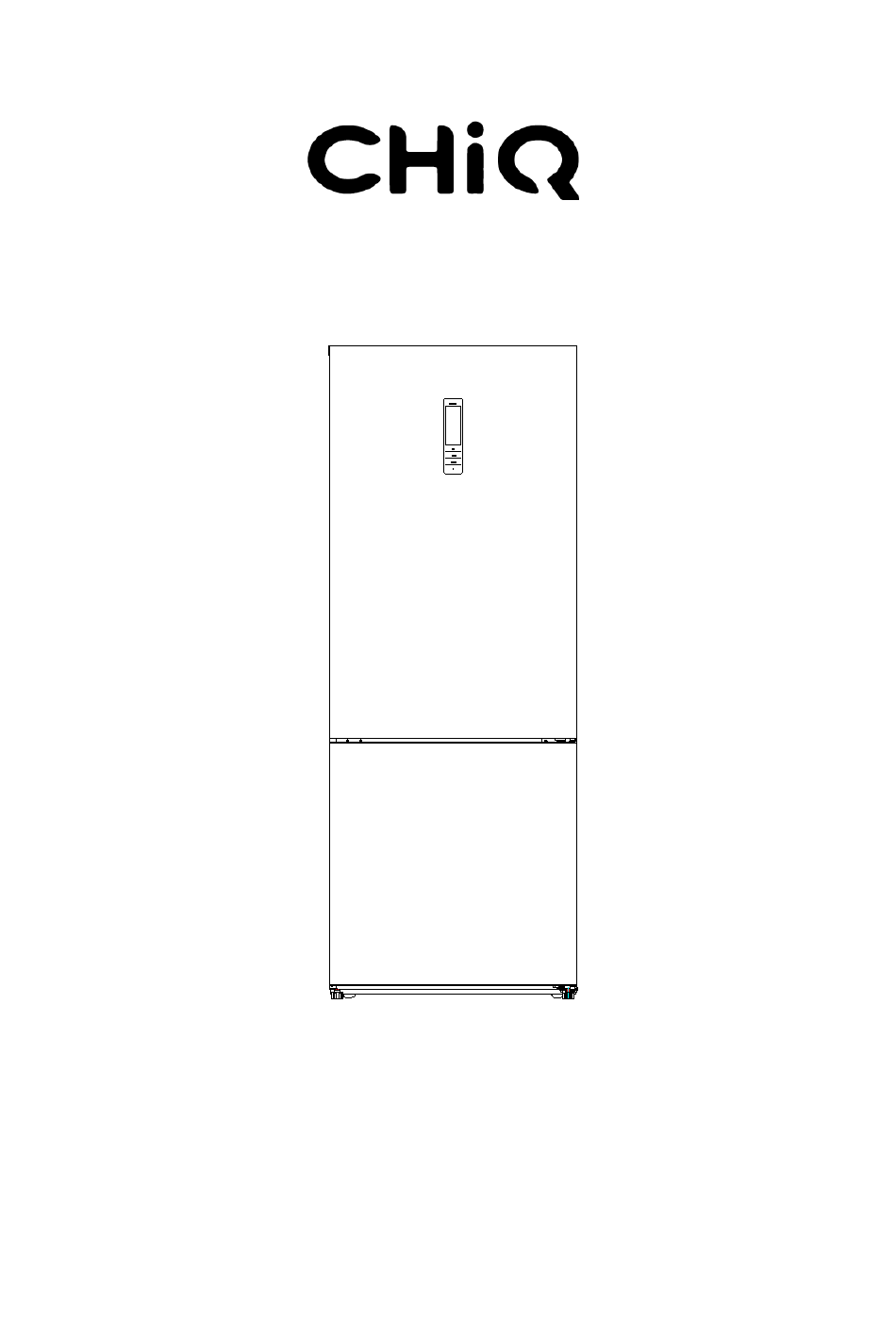

- Page 1 INSTRUCTION MANUAL Model No.: CQRB14Y4G2RS...
- Page 2 SAFETY WARNING! t is hazardous for anyone other than authorized service personnel to carry out servicing or repairs which involves the removal of covers. To avoid the risk of an electric shock do not attempt to repair this appliance yourself. WARNING! isk of fire / flammable materials.
- Page 3 o not damage the refrigerant circuit. o not use electrical appliances inside the food storage compartments of the appliance, unless they are of type recommended by the manufacturer. o not store explosive substances such as aerosol cans with a flammable propellant inthis appliance. his appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 4 order to avoid a hazard. Locks If your Refrigerator is fitted with a lock, keep the key out of reach and not in the vicinity of the applianceto prevent children being entrapped. When disposing of an old Refrigerator, break off any old locks or latches as a safeguard. Freon-free The freon-free refrigerant (R600a) and the foaming insulation material (cyclopentane) that is environmentally friendly are used for the refrigerator, causing no damage to the ozone layer and having a very small impact on the global...
- Page 5 Dimensions in mm: C(°) 1855 1165 1360 125±5 Note：Figure 1, Figure 2 only illustrate the space demand of the product. Level ground Place the refrigerator on the solid and flat ground (floor) to keep it stable, or else, it will give rise to vibration and noise. When the refrigerator is placed on such flooring materials as carpet, straw mat, polyvinyl chloride, the solid backing plates should be applied underneath the refrigerator, so as to prevent color change due to heat dissipation.
- Page 6 function. 2）Freezer temperature setting Press the Temp. Zone key to select the freezer zone, with the corresponding icon flickering, and then press the Temp. key to adjust the temperature, finally press the OK/Lock or wait for 5s to validate the above temperature setting. The freezer temperature setting cycles as following: 18→-17→-16→-15→-14→-23→-22→-21→-20→-19→-18；...
- Page 7 1.8Power-on delay In order to protect the refrigerator compressor from being damaged in the case of short-time power failure (i.e., less than 5 minutes), the compressor will not be started immediately after it is powered on. 1.9Over-temperature alarm (only after power outage) When the refrigerator system is powered on, if the freezer sensor temperature is higher than -10℃, digits of the freezer zone get flickering on the display.
- Page 8 ★Do not put a glass container with liquid or the canned liquid that is sealed in the freezer compartment, so as to avoid burst due to volume expansion after the liquid gets frozen up. ★Divide the food into appropriately small portions ★You’d better pack the food up before freezing it, and the packing bag used should be dry, in case the packing bags are frozen together.
- Page 9 Adjust the thermostat knob to the high mode an hour in advance, so that foods get fully frozen (Do not store new food during this time!). Restore the temperature mode to the original setting when power supply becomes normal in a timely manner.
- Page 10 panel, with spoiled. temperature digits flashing Note: If the above descriptions are inapplicable to troubleshooting, do not disassemble and repair it yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact the local store where your purchase was made. This product should be serviced by an authorized engineer and only genuine spare parts should be used.
- Page 11 Reversing the Door Swing How to disassemble the fridge/freezer door. 1. a．Screw offthe hinge cover screw, remove the hinge cover, and insert the communication wire into the hole on the cabinet top. e． Insert the door bush into the round hole on the door, and put on the small end cap cover.
- Page 12 c．Remove theaxle and two stoppers on the lower hinge, and assemble them to the position as shown c．Remove the adjustable front feet under the lower below. hinge,and screw off the 4 screws of the lower hinge to disassemble the lower hinge. In this way, the door disassembly is finished.
- Page 13 3. Install the fridge door,assemble the left upper hinge to the other side of the cabinet, The doors are opened form the left side. and use a tool to screw up the 4 screws to fix the upper hinge. Then, connect the door communication wire and the cabinet communication wire, install the left upper hinge cover,and fix it using a screw.
