- Page 1 Wireless Module Model: CG-DAM-PRO Manual www. ltech-led .com...
-
Page 2: Application Diagram
Application Diagram Wi-Fi/4G/5G CLOUD Scene Timing Automation Phone user ... Phone user 1 Homeappliancesandaccessories Router Amazon Echo Google Home appliance HVAC Curtain motor module management module Wi-Fi Ethernet Wireless module Relay Music player Bluetooth Bluetooth 4.2 Mesh Bluetooth speaker Wireless switch Bluetooth remote More Super Panel 6S... -
Page 3: Product Features
Work with a smart gateway to achieve a variety of cloud scenes, cloud-based automation and local automation. ● Suitable for projects that need a large amount of light fixtures, like villas, hotels, supermarkets, etc. Technical Specs Model CG-DAM-PRO Bluetooth 5.0 SIG Mesh Wireless Protocol Type DMX / DALI / 0-10V Output Signal... -
Page 4: Product Images

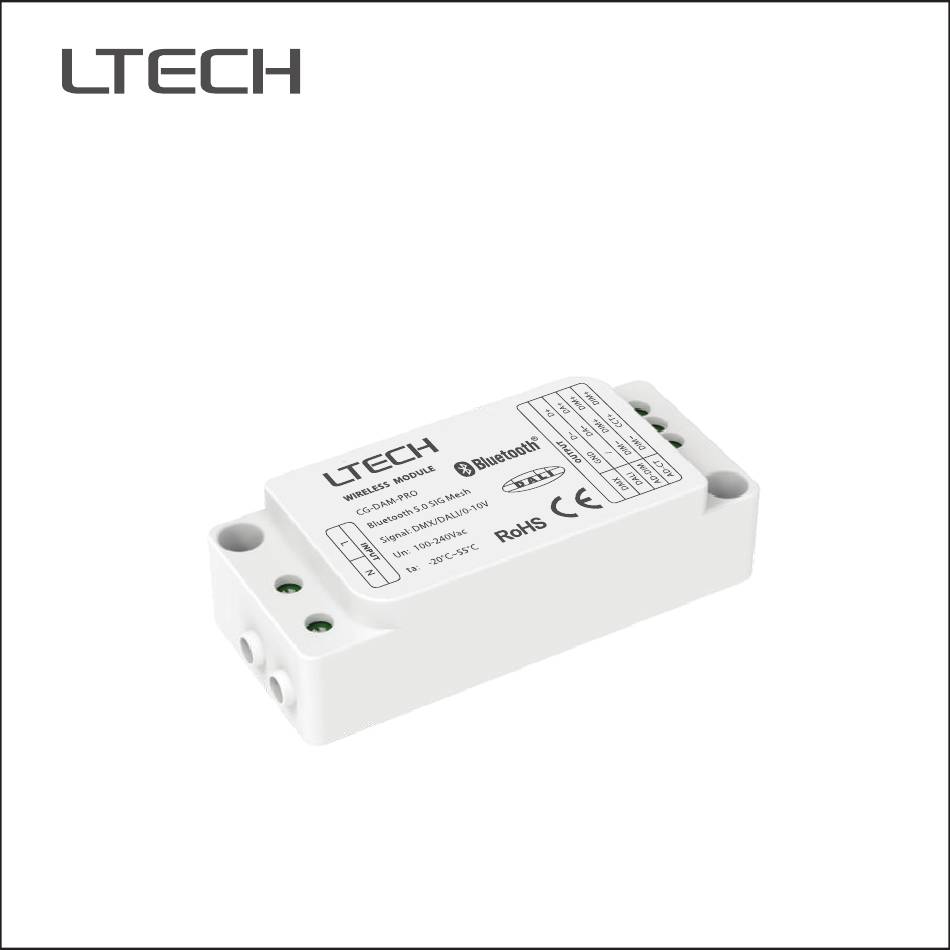

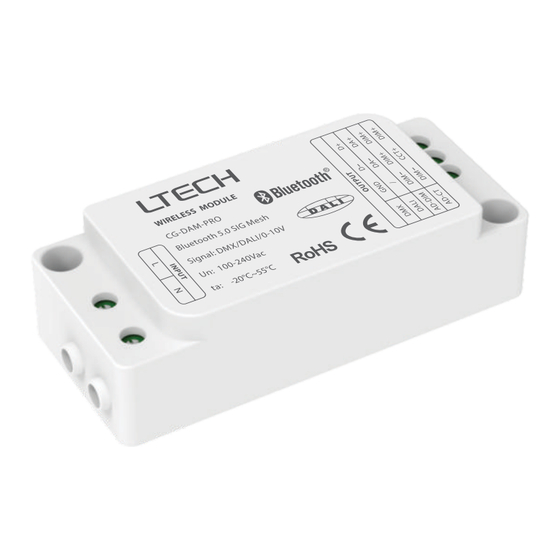

Product Images Screw hole LED driver connection Power interfaces CG-DAM-PRO Screw hole Product Size Unit: mm... -
Page 5: Wiring Diagram
APP, then switch to the desired output signal (refer to Page 7 for details), and finally start your wire connection. Null line(N) Live line(L) DMX Driver CG-DAM-PRO DALI Null line(N) Live line(L) DALI Driver CG-DAM-PRO This module has the integrated DALI bus power supply. - Page 6 0-10 V ( DIM ) Null line(N) Live line(L) 0-10V Driver CG-DAM-PRO 0-10 V (CT) Null line(N) Live line(L) 0-10V Driver CG-DAM-PRO...
- Page 7 Applications 1.Wireless lamp control. Wireless module DMX/DALI/0-10V Lamp driver 2. After linking the remote controller with the wireless module via the App, you can control the device using the remote controller or App. Remote Wireless Wireless module DMX/DALI/0-10V Lamp controller switch driver 3.Support local scenes that can run without the Internet or a gateway.
- Page 8 App Operating Instructions 1. Register an account 1.1 Scan the QR code below with you mobile phone and follow the prompts to complete the app installation. 1.2 Open the App and log in or register an account. Scan and download the App 2.
- Page 9 3. Light groups To ensure the consistency of dynamic effects, you can group together the lights that output the same signal. Once you create the group, you can set the dim level and adjust color temperature, and color of lights more easily. Tap “Group” from the list and follow the prompts to rename the group.
- Page 10 4.Control interface settings After pairing your device, go to the control interface. You'll be able to achieve your desired lighting effects by changing brightness, colors and color temperature. Click “Theme”and you’ll easily switch between various theme lighting effects with one tap.Click“Mode”and the App provides you editable editable advanced modes.
- Page 11 Attentions Products shall be installed by qualified professionals. LTECH products are and not lightningproof non-waterproof (special models excepted). Please avoid the sun and rain. When installed outdoors, please ensure they are mounted in a water proof enclosure or in an area equipped with lightning protection devices.
-
Page 12: Warranty Agreement
1. Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or consequential damage unless it is within the law. 2. LTECH has the right to amend or adjust the terms of this warranty, and release in written form shall prevail.
