Summary of Contents for Ltech CG-D
- Page 1 Wireless Module Model: CG-D Manual www. ltech-led .com...
-
Page 2: Application Diagram
Application Diagram WiFi/4G/5G CLOUD Scene Timing Automation Phone user... Phone user 2 Phone user 1 WiFi light fixtures WiFi Router Tmall genie Amazon echo RGBW RGBWY WiFi Ethernet Bluetooth 4.2 Home appliance module Wednesday Home appliances Sunny 30℃ 26℃ Bluetooth 5.0 SIG Mesh Air conditioning Airer Curtain... -
Page 3: Product Features
● Setting the soft start time and lighting status is supported. ● Work with Super Panel to achieve voice control, cloud scenes and automation. Technical Specs CG-D Model Wireless Protocol Type Bluetooth 5.0 SIG Mesh Output Signal DALI Input Voltage 9.5-22.5Vdc... -

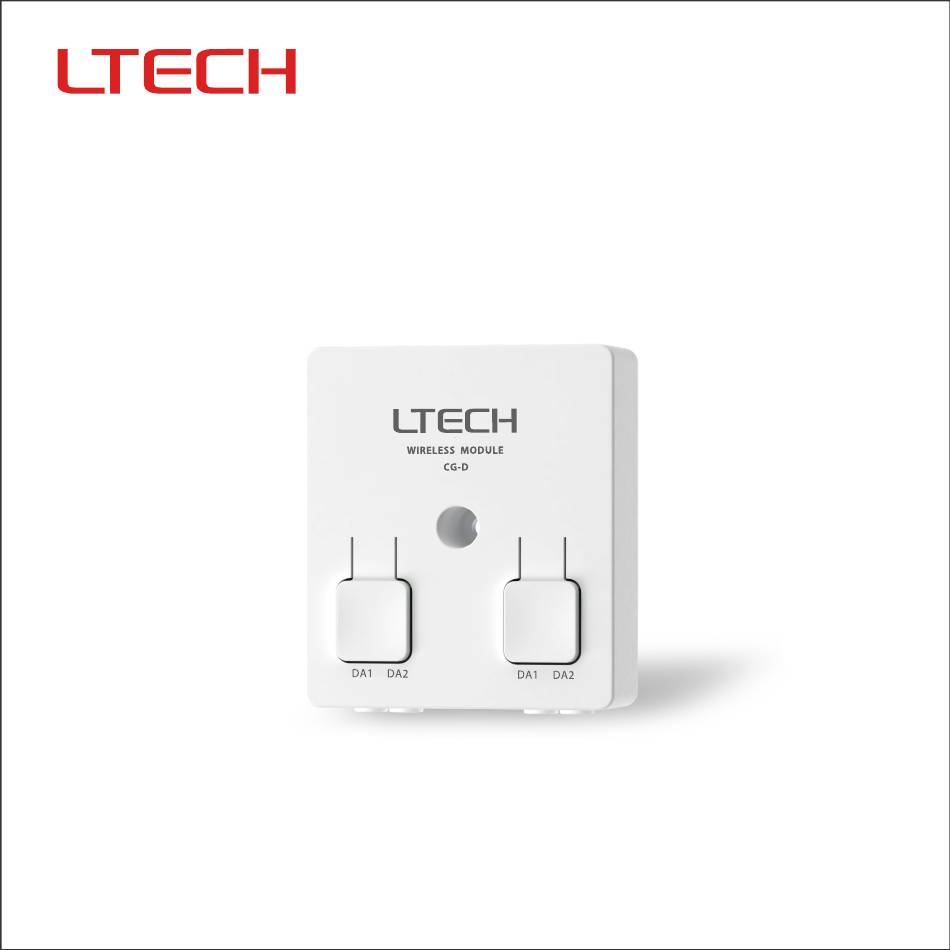

Page 4: Product Images
Product Images WIRELESS MODULE CG-D Screw hole Fix / release Fix / release the wire the wire Wire interface Wire interface Product Size Unit: mm... -
Page 5: Wiring Diagram
Wiring Diagram Neutral input(N) Firewire input(L) WIRELESS MODULE CG-D DALI bus DALI driver power supply LED- LED+ Super panel Lamp Note: The wireless module and the DALI master cannot be connected together to the same bus. -
Page 6: Wire Specifications
Wire Specifications Thin Multi-strand Wires Thin Multi-strand Wires + Soldering Thin Multi-strand Wires with Insulated/ Single Strand Wire Uninsulated Cold- welded Cable Joint Wire diameter: 0.5-1.5 (20-16AWG) Wire diameter: 0.5-0.75 (22-18AWG) -
Page 7: Installation Precautions
Installation Precautions ≥15cm Please do not stack the products. The distance between two products should be ≥ 15cm so as not to affect heat dissipation and the lifespan of the products. Please do not place the products on the floor. The distance between the product and the floor should be ≥100cm so as to avoid signal interference. - Page 8 Please do not place the products near a large area of metal objects ( such as metal stud ceilings). The distance between the product and the metal object should be≥ 15cm so as to avoid signal interference. Please do not install the products on beams or near the corners. The distance between the product and the beam or the corner should be≥15cm so as to avoid signal interference.
-
Page 9: Recommended Applications
Recommended Applications 1. Wireless control. Wireless module DALI driver Lamp 2. Both App and remote can control the wireless module after connecting the remote to the driver via App. Remote Wireless Wireless module DALI driver Lamp switch 3. Visual control + remote control of traditional panels. Wednesday Sunny 30℃... - Page 10 App Operating Instructions 1. Register an account 1.1 Scan the QR code below with you mobile phone and follow the prompts to complete the app installation. Scan and download the App 1.2 Open the App and log in or register an account.
- Page 11 2. Pairing instructions Create a home if you are a new user. Click“+”icon in the upper right corner and access the“Add device” list. Pick“ DALI module ”from the list. Follow the prompts to power on the device first, and make sure the device is not connected to the network .
- Page 12 3.Control interface settings After pairing your device, go to the control interface. You'll be able to achieve your desired lighting effects by changing brightness, colors and color temperature. Click “Theme”and you’ll easily switch to multiple theme lighting effects with one tap. Click“Mode”and the App provides you editable advanced modes. Customize dynamic modes to put you into a more colorful life.
- Page 13 4. Advanced functions This product can be linked up with a gateway device (such as Super Panel ) to achieve advanced functions, such as cloud scenes, automation.
- Page 14 Attentions Products shall be installed by qualified professionals. LTECH products are non-waterproof (special models excepted).Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof enclosure. Good heat dissipation will extend the working life of products. Please ensure good ventilation.
-
Page 15: Warranty Agreement
1. Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or consequential damage unless it is within the law. 2. LTECH has the right to amend or adjust the terms of this warranty, and release in written form shall prevail.
