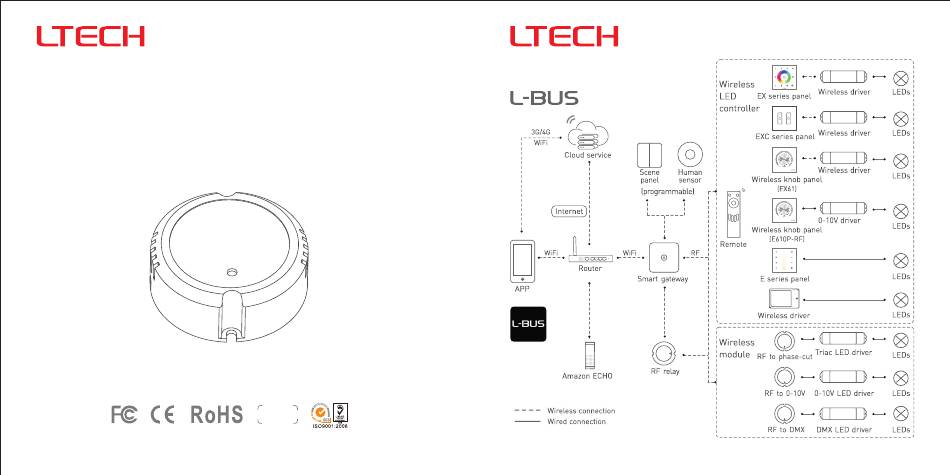

- Page 1 EBOX-DMX Wireless Module EBOX-DMX Wireless Module System Diagram Wireless Module Model: EBOX-DMX warranty 5 years...
- Page 2 Output wire: 20AWG /0.5 EBOX-DMX wireless module applies L-BUS wireless communication protocol and converts it to DMX512 through RF wireless communication technology, which is used with the LTECH DMX512 LED dimmable driver and compatible with all DMX products in the market. Rely on...
- Page 3 Above operation only workable when panel is power-on. Above operation only workable when panel is power-on. Step 3: Step 3: The lamps of EBOX-DMX flicker quickly and then stop flicking, match code successfully. The lamps of EBOX-DMX flicker quickly and then stop flicking, match code successfully.
- Page 4 ID learning EBOX-DMX flickeres, then release the button and successfully clear code. button Long press ID learning button on EBOX-DMX for 10 seconds, the lamp of EBOX-DMX puts out, then release the button and switch successfully. DMX Channel Output Table...
