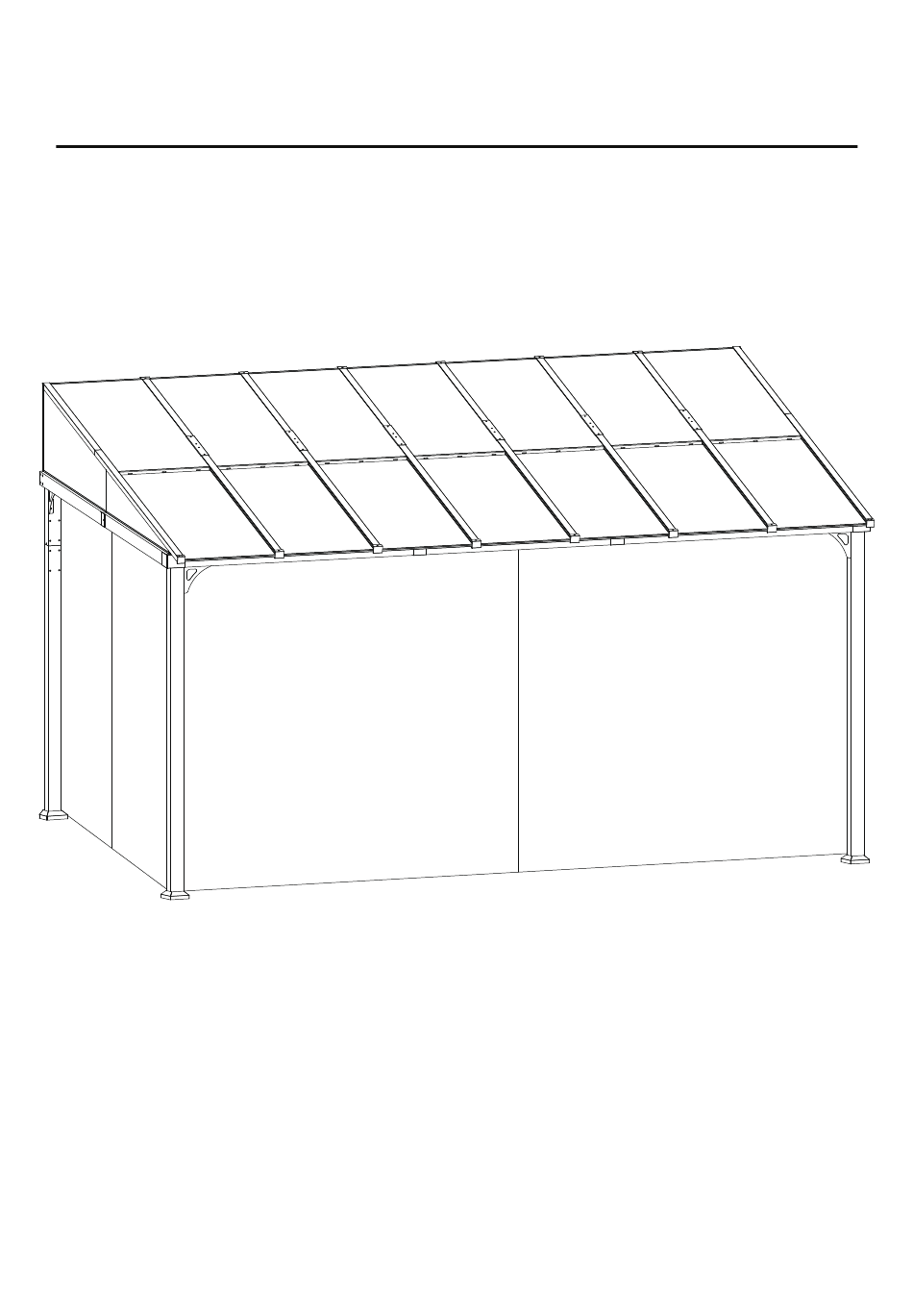

CORNER GAZEBO WITH SUN VISOR
If you have any questions about the outdoor gazebo, please feel free to contact us.
Customer Service Email: Service@alaulm.com
1014WMGazebo24
IMPORTANT
PLEASE READ BEFORE YOU COMMENCE ASSEMBLY
Follow the guidelines in this user guide to ensure correct
assembly and care for this product.
Advertisement
Table of Contents
Related Manuals for ALAULM 1014WMGazebo24
Summary of Contents for ALAULM 1014WMGazebo24
- Page 1 CORNER GAZEBO WITH SUN VISOR If you have any questions about the outdoor gazebo, please feel free to contact us. Customer Service Email: Service@alaulm.com 1014WMGazebo24 IMPORTANT PLEASE READ BEFORE YOU COMMENCE ASSEMBLY Follow the guidelines in this user guide to ensure correct...
-
Page 2: Specifications
SPECIFICATIONS... -
Page 3: Table Of Contents
Catalog Specifications......................01 Notice And Warning ................... 03 Exploded Views ......................05 First Part ......................06 Second Part ......................... 07 Third Part ......................... 08 Fourth Part ......................09 Parts List........................10 Hardware List......................13 How to Assemble Hartop Gazbo ................14... -
Page 4: Notice And Warning
NOTICE Note: The gazebo needs to be installed in cooperation with five people. The following tools are not included and needed for assembly: Pistol Drill Tape Measure Hammer Screw Driver 2 m Adjustable Ladder 5 people Warning 1. A 5 personal assembly is required for this gazebo. 2. - Page 5 F.The product has functional problems G.Other aspects that you are not satisfied with Please feel free to contact us for help. Our after-sales team service Service@alaulm.com ) will reply within 24 hours and will do our best to resolve the problem for you.
-
Page 6: Exploded Views
EXPLODED VIEWS... -
Page 7: First Part
FIRST PART... -
Page 8: Second Part
SECOND PART... -
Page 9: Third Part
THIRD PART S P5 S P5 S P5... -
Page 10: Fourth Part
FOURTH PART... -
Page 11: Parts List
Parts List (Box A) Upper left part of Lower part of the Upper right part of Right part of Left part of the rear column rear column the rear column the front column the front column 1 PC 2 PCS 1 PC 1 PC 1 PC... - Page 12 Parts List (Box B) Front part of the Rear part of the Front part of the Rear part of the Left of left crossbar left crossbar right crossbar right crossbar center beam 1 PC 1 PC 1 PC 1 PC 1 PC Right of Center of...
- Page 13 Parts List (Box B) Front Column Lower Center Rear Stopper 1 Rear Stopper 2 Sidebar stopper Spike Cover Beam Stopper 1 PC 1 PC 2 PCS 6 PCS 2 PCS Upper Center Center Beam Column Side Beam Retainer Plate Beam Stopper Stopper Ferrules Connectors...
-
Page 14: Hardware List
1. Please ensure that all accessories are complete before starting the installation. 2. Due to the variety of accessories, many accessories may be glued together, please check carefully 3. If any accessories are missing or damaged, please contact the seller immediately. E-Mail: Service@alaulm.com... -
Page 15: How To Assemble Hartop Gazbo
Step 1 :Connect the upper and lower parts of the rear column STEP 1 (A1,A2 and A3) together with column inserts(J1), put the column ferrules(T) in the center, and lock them with screws (FF).Place hexagonal caps(EE) over screw(FF). NOTE :Look at the picture to determine the location of the screw holes. - Page 16 Step 2 :Slide the rear spike cover(M3) into the rear column STEP 2 (A2), then secure the rear column(A2) to the rear column spike tabs(M1) and tighten with screws(FF).Slide the front spike cover(M4) into the front column(A4 and A5), then secure the front column to the front column spike tabs(M2) and tighten with screws(FF).
- Page 17 Step 3 :Insert the crossbar inserts(J2) into the left and right STEP 3 crossbars(B1,B2,B3 and B4), and then fasten the front and rear part of the left and right crossbars(B1,B2,B3 and B4) together with screws(FF). NOTE :Look at the picture to determine the location of the screw holes.
- Page 18 Step 4 :Install the side mosquito net tube(T1 and T2) on the STEP 4 crossbar(B1,B2,B3 and B4) with screws(FF), slide the mosquito net ring(HH) into the slots of the mosquito net tube(T1 and T2) from the side, each mosquito net tube(T1 and T2) has 12 mosquito net rings(HH).
- Page 19 Step 5 :Insert the intermediate crossbeam insert(J4) into the STEP 5 center beam(C5), and then fasten the left center beam(C3), right center beam(C4) and middle center beam(C5) together with screws (FF). NOTE :Look at the picture to determine the location of the screw holes.
- Page 20 Step 6 :Insert the crossbeam inserts(J2) into the center of the STEP 6 rear beam(D7), and then fasten the left part of rear crossbar (D5), the right part of rear crossbar(D6) and the center of the rear beam(D7) together with screws (FF).Fix the center beam stopper(S) to the rear crossbar(D5,D6 and D7) with screws (FF).
- Page 21 Step 7 :Secure the front crossbar(D8,D9 and D10) together STEP 7 as in the previous step.Install the long side mosquito net tube (T5,T6 and T7) on the front crossbar(D8,D9 and D10) with screws(FF), slide the mosquito net ring(HH) into the slots of the mosquito net tube(T5,T6 and T7) from the side, each mosquito net tube(T5 and T6) has 16 mosquito net rings(HH).
- Page 22 Step 8 :Fix the front and rear columns(A1 and A5,A3 and A4) STEP 8 together with the left and right side crossbars(B1 and B2,B3 and B4) with screws(KK), and then use screws(GG) to connect the diagonal brace(H1 and H2) with the left and right side crossbars(B1 and B2,B3 and B4) and the front and rear columns(A1 and A5,A3 and A4).Place the round cap(LL) over the screw(KK).
- Page 23 Step 9 :Fix the two rear columns(A1,A2 and A3) together with STEP 9 the rear crossbars(D5,D6 and D7) with screws(KK), fix the front columns(A4 and A5) together with the front crossbars(D8 ,D9 and D10) with screws(KK) and then use screws(GG) to connect the diagonal brace(H1 and H2) with the front and rear side crossbars(D5 D6 and D7, D8 D9 and D10) and the front and rear columns(A1 and A5,A3 and A4).Place the round...
- Page 24 Step 10 :Fasten the center beam(C3,C4 and C5) to the STEP 10 triangular supports(J5) with screws(FF).Fasten the corner stopper(J7) to the left and right crossabrs(B1 and B3) and the front crossbar(D8 and D9) with screws(AA). NOTE :Review the pictures to determine the location of the screw holes and the orientation of the parts.
- Page 25 Step 11 :Insert the side beam connectors(Y1) into the left and STEP 11 right side beam(F1,F2,F3 and F4), and then fasten the short and long of the left beam(F3 and F4) together with screws (GG),fix the short and long of the right beam(F1 and F2) together with screws(GG).
- Page 26 Step 12 :Attach the left and right side beams(F1,F2,F3 and STEP 12 F4) to the bottom frame with screws(FF), then attach the small connecting piece(Y2) to the center beam(C3,C4 and C5) with screws(GG). NOTE :Look at the picture to determine the location of the screw holes.
- Page 27 Step 13 :Clamp the long and short intermediate beams(E1 STEP 13 and E2) together with the intermediate beam clamping(Y3) and fasten with screws(NN). NOTE :Look at the picture to determine the location of the screw holes. E1 6x E2 6x M6x50...
- Page 28 Step 14 :Attach the intermediate beam(E1 and E2) to the STEP 14 frame with the center beam stoppers(S) and the small connecting piece(Y2) fixed by screws(GG). NOTE :Look at the picture to determine the location of the screw holes. M6x15...
- Page 29 Step 15 :Pan the 4 sunlight panels Q1 Q2 Q3 Q4 forward STEP 15 along the beam channel until there is no clearance. NOTE :Look at the picture to determine the location of the screw holes.
- Page 30 Step 16 :Tear off the film on the surface of the sun panel(Q), STEP 16 then insert every two sun panels(Q) into a sunlight panel middle stopper(L2), and the other end into the sunlight panel strip(L1). NOTE :Look at the picture to determine the location of the screw holes.
- Page 31 Step 17 :Nudge the assembled sun panel(Q) up as shown in STEP 17 the diagram. NOTE :The sun panel near the rear column is on the top layer.Look at the picture to determine the location of the screw holes.
- Page 32 Step 18 :Fix the rear stopper(P1 and P2) to the upper part of STEP 18 the rear column(A1 and A3) with screws(GG), and then fix the sidebar stoppers(P3) to the left and right side beams(F1 and F3) with screws(GG) .Finally ,fix the upper and lower center beam stoppers(P4 and P5) to the intermediate beam (E1 and E2) with screws(GG) respectively.
- Page 33 Step 19 :Optional fixing of the retainer plate(V) to the rear STEP 19 column and wall by means of screws(FF).Secure the post to the ground with ground nails(PP) and expansion screws(UU). NOTE :Review the pictures to determine the location of the screw holes and the orientation of the parts.
- Page 34 Step 20 :Hang the mosquito net(V1) on the mosquito net ring STEP 20 (HH) on the inside of the mosquito net tube(T1,T2,T5,T6 and T7).Attach the four corners of the sticky tape to the post. NOTE :Mosquito net with 8 hanging loops on the long side and 6 loops on the short side.
- Page 35 Step 21 :Hang the surrounding cloth(U1) on the mosquito net STEP 21 ring(HH) on the outside of the mosquito net tube(T1,T2,T5,T6 and T7).Attach the four corners of the sticky tape to the post. NOTE :Mosquito net with 8 hanging loops on the long side and 6 loops on the short side.
