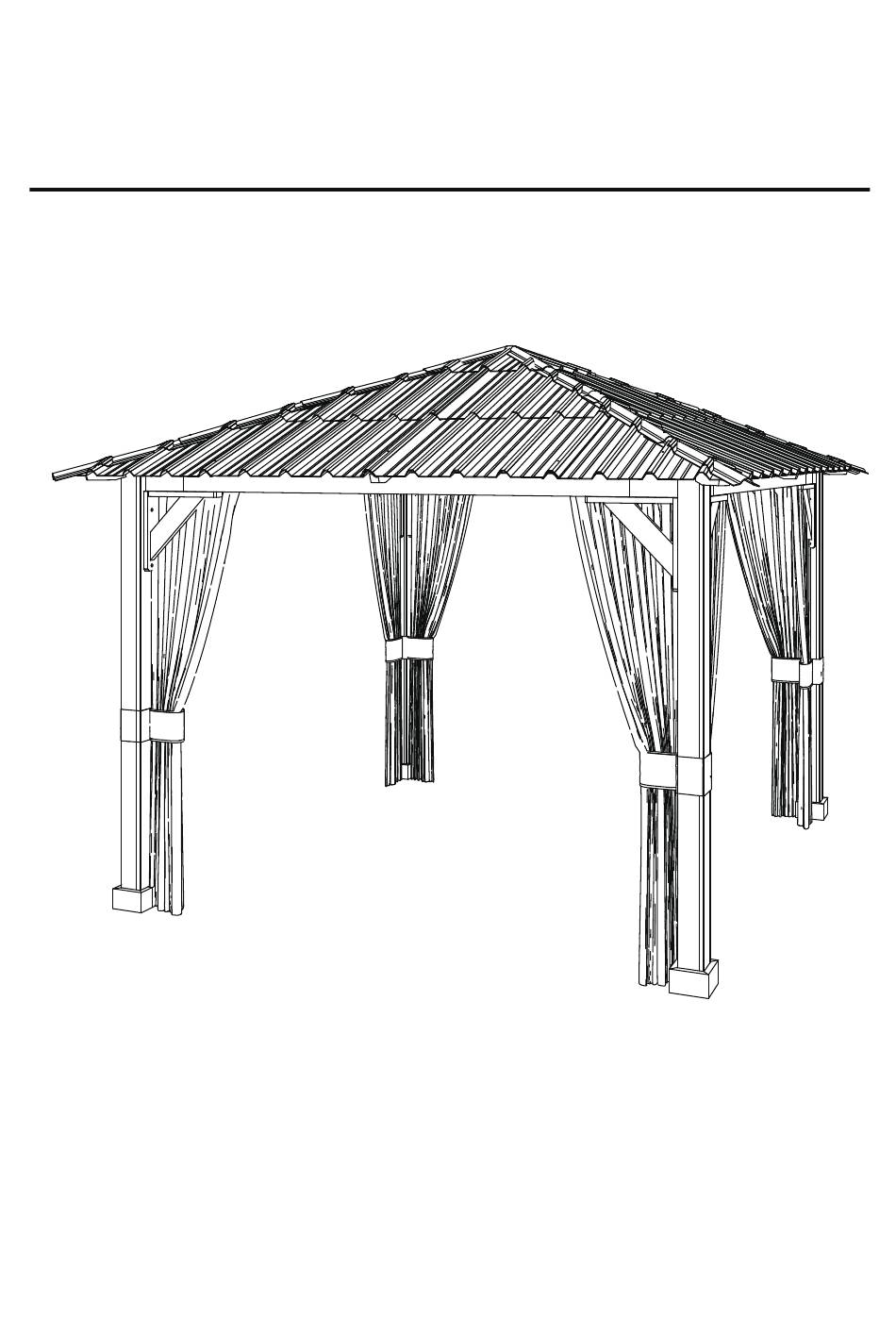

10×10 American plastic tile
imitation wood SPA pavilion
(with
Sidewall
and mosquito net)
If you have any questions about the outdoor gazebo, please feel free to contact us.
Customer Service Email: Service@alaulm.com
1010Gazebo23-PW-Brown
IMPORTANT
PLEASE READ BEFORE YOU COMMENCE ASSEMBLY
Follow the guidelines in this user guide to ensure correct
assembly and care for this product.
Advertisement
Related Manuals for ALAULM 1010Gazebo23-PW-Brown
Summary of Contents for ALAULM 1010Gazebo23-PW-Brown
- Page 1 (with Sidewall and mosquito net) If you have any questions about the outdoor gazebo, please feel free to contact us. Customer Service Email: Service@alaulm.com 1010Gazebo23-PW-Brown IMPORTANT PLEASE READ BEFORE YOU COMMENCE ASSEMBLY Follow the guidelines in this user guide to ensure correct...
- Page 3 SPECIFICATIONS 112. 2 inch 112. 2 inch 124. 8 inch...
- Page 4 NOTICE Note: The gazebo needs to be installed in cooperation with five people. The following tools are not included and needed for assembly: Pistol Drill Tape Measure Rubber Hammer knife Screw Driver 2 m Adjustable Ladder 2-4 people Warning 1. This pavilion requires the cooperation of 2-4 people. 2.
- Page 5 F.The product has functional problems G.Other aspects that you are not satisfied with Please feel free to contact us for help. Our after-sales team service Service@alaulm.com ) will reply within 24 hours and will do our best to resolve the problem for you.
- Page 7 EXPLODED VIEWS Part I Part II Part III Part IV...
- Page 8 PART I...
- Page 9 PART II...
- Page 10 PART III...
- Page 11 PART IV...
- Page 12 Parts List (Box A) Note: K is already installed on the inside of A Plastic wood column Column reinforcement profiles 4PCS 4PCS Parts List (Box B) Standing plastic Three sides fixed Diagonal ridge beam Support tripod wood pier metal sheet fixed sheet metal Column hook 4PCS...
- Page 13 Parts List (Box C) Reinforced sheet metal crossbeam Short crossbeam - L Short crossbeam - R 4PCS 4PCS 4PCS Parts List (Box D) Trapezoidal tile left Trapezoidal tile right Triangular tile left 4PCS 4PCS 4PCS Triangular tile right Rectangular tile left Rectangular tile right 4PCS 4PCS...
- Page 14 Parts List (Box E ) Plastic wood Plastic wood reinforcement strip-L reinforcement strip-R Diagonal ridge profiles 4PCS 4PCS 4PCS Roof frame inclined beam Roof frame crossbeam Roof frame sheet metal 4PCS 4PCS 4PCS Standing plastic wood pier Column base 3PCS 3PCS rdw e List (Box B)
- Page 15 1. Please ensure that all accessories are complete before starting the installation. 2. Due to the variety of accessories, many accessories may be glued together, please check carefully 3. If any accessories are missing or damaged, please contact the seller immediately. E-Mail: Service@alaulm.com...
- Page 16 Extra (Box B) Bolt M6×16 Bolt M8×16 Bolt M6×40 6PCS 2PCS 4PCS Bolt M6×65 Self-tapping screws M4×60 Drilling screws M5×50 2PCS 2PCS 2PCS Self-tapping screws M4×20 Gasket Φ6 Gasket Φ8 6PCS 2PCS Hanging hook Rubber ring Φ5 Nuts M6 2PCS 4PCS 8PCS Column hook...
- Page 17 Note: Part (K) is pre-installed in part (A). Please align the hole, insert the part (L) into (K), insert the bolt (A3) into the hole,put STEP 1 the spacer (A9) on the bolt (A3) on the inside of the part (U), and then fix the nut (A11) tightly on the bolt (A3) and put it into the part (U) from above the part (A).
- Page 18 Place the crossbeam (E) with the hole position facing upward, and install the short crossbeam (C) and (D) on the left and right sides of (E) respectively with (A1) bolts as shown in the STEP 2 illustration. Install the triangle support (B) as shown in the figure using (A3) bolts under the cross member already installed.
- Page 19 Combine the installed legs (A+K+U+L) and the installed cross members (E+C+D+B) as STEP 3 shown in the illustration using (A3) bolts，as shown in the figure first combine the 4 legs with the two beams. NOTE: Please tighten the bolts. E+C+D+B A+K+U+L ×...
- Page 20 The step3 installed components are placed flat on the ground, and then the step2 installed STEP 4 beams are placed vertically as shown on the leg pipe hole position, and the bolts (A3) are installed in the hole position. NOTE: Please tighten the bolts.
- Page 21 Stand up the components installed by step4, and then stand up the unused components STEP 5 installed by step3. Align the holes for splicing as shown and use the bolts (A3) to assemble. You then have the bottom frame of the gazebo. NOTE: Please tighten the bolts.
- Page 22 Align the Diagonal ridge profiles (H) and Roof framesheet metal on three sides (X) with the STEP 6 holes andcombine them with bolts (A2) over spacers (A10). × 4 × 4 Gasket Φ8 Bolt M8×16 A10 ×12 A2 ×12...
- Page 23 Align the combined object (H+X) with the Rooframe sheet metal (V) in the hole position, use thebolt (A1) on oneside and the spacer (A9) and nut(A11) on the other side, then STEP 7 tighten them. × 4 × 4 Gasket Φ6 Nut M6 Bolt M6×16 A11 ×16...
- Page 24 Put the (H+X+V) assembly on the bottom frame of the pergola (step 5), and align the corners of the four columns of the bottom frame (A) with the top corner slot of the STEP 8 Diagonal ridge profiles (H).
- Page 25 IInstall the Roof frame inclined beam (I) on themiddle hole position of the Roof frame sheetmetal (V) as shown in the example, set thebolt (A2) on the spacer (A10), STEP 9 combine the locking. Snap the slot of (I) on the bottom frame, use selftapping screws (A7) to secure the Roof frameinclined beam (I) to the frame below.
- Page 26 Reinforce with metal plate (Y), place (Y) at the right angle of the frame, and fix both sides with two bolts (A1). Then align the metal plate (z) with the metal plate (y) and lock it with the screw (A4). For the STEP 10 upper hole position, it is necessary to fix the Column hook(A21) between the screw (A4) and the metal plate (z), lock it with the screw (A4) (don't tighten the screw this time), and lock (z)
- Page 27 As shown,(G) on the right side of the upper part of frame(E), and install (F) on the left side. STEP 11 Use 4 screws (A5) to lock. Operate equally on all four sides. NOTICE: Please be careful to align the screwholes, with the low side of the cut bevel facingoutward.
- Page 28 Snap each of the four Roof frame crossbeams (J)in the hole slot of (I).Then put the bolt (A4) over the spacer (A9)through the hole on one side of (J), through thehole of (H) and the hole ofthe adjacent one onone side of (J) and tighten the other side over thespacer (A9) usingthe STEP 12 nut (A11).
- Page 29 NOTICE: Need to install (A19) first, then install (A20)). Before installing the Hanging hook rail（A19), withdraw the 4 screws (3 in the corner, STEP 13 1 in the middle) of the installed frame (Y、E and W), then align the Hanging hook rail left(A19) with the holes, and then lock the withdrawn screws.
- Page 30 After installing the hook guide rails (A19 and A20), insert the hook (A18) into the two groove guide rails on the. There are 10 hooks on one side. STEP 14 Repeat steps 13 and 14 for the remaining 3 sides. A18 ×80...
- Page 31 After installing the SPA gazebo, you need to install A26-27 to the left side of the Hanging Extra hook rail left (A19), first slide the larger diameter side of A27 down into the slot of A19 as A18, then screw A26 into A27 from below and adjust the position to tighten. One side Steps needs to be installed twice, the installation method is A19 left side installation and A20 right side installation.
- Page 32 Note: Do not over-tighten the bolts or the tile may be damaged. When installing the top, the self-tapping screw (A5) needs to be used with a washer manually, while the drilling screws (A6) comes with a washer and can be used directly. STEP 15 Stack the tiles in the order of the image (first O and P, then R, finally Q).
- Page 33 Note: Do not over-tighten the bolts or the tile may be damaged. M on top of N, aligned with the hole position. Install the bottom three screws first, and the STEP 16 upper middle bolt can be installed only after installation (T). Repeat on the other three sides. ×...
- Page 34 Place the roof tiles (S2-S2-S1) in the order shown in the picture, align the holes, and fix (S2-S2-S1) to the roof spine (H) using drill screws (A6). Finally, cover (T) at the top and align the screw holes of the tile as shown, and lock them STEP 17 using four drill tail screws (A6).
- Page 35 Caulk Gun instructions for use: First push the Caulk Gun rear baffle forward, and then pull out the pull rod backward. Put Caulk in it, unscrew the tip, slowly cut a small mouth with a knife (don't cut the STEP 18 thread), and screw on the tip to use.
- Page 36 When installing mosquito nets, please pay attention to the mosquito nets hanging inside. Hook (A18), note that there are 5 hooks on the left and 5 hooks on the right, with 10 hooks STEP 19 in a row. During installation, there are 11 loops on a mosquito net, 5 loops are hung on the hook on the left, and so are the loops on the right.
- Page 37 When installing Sidewall, please note that Sidewall hangs on the outer Hanging hook (A18), STEP 20 note that it is 5 Hanging hooks on the left side of the Hanging hook and 5 Hanging hooks on the right side, 10 in a row.The installation steps are similar to those in step19, and a collar in the middle of the side wall is sleeved on Column hook(A21).
- Page 38 Products with two kinds of floor nails, you can choose the right floor nails according to the STEP 21 actual situation of your home. Long ground nails are usually suitable for lawn or land. Expansion screws are more suitable for concrete ground. M6x80 8X180 Φ...
- Page 40 www.alaulm.com...
