ALAULM 1220Gazebo24 Assembly Instructions Manual

Hardtop gazebo with netting
Hide thumbs
Table of Contents

Advertisement

Quick Links

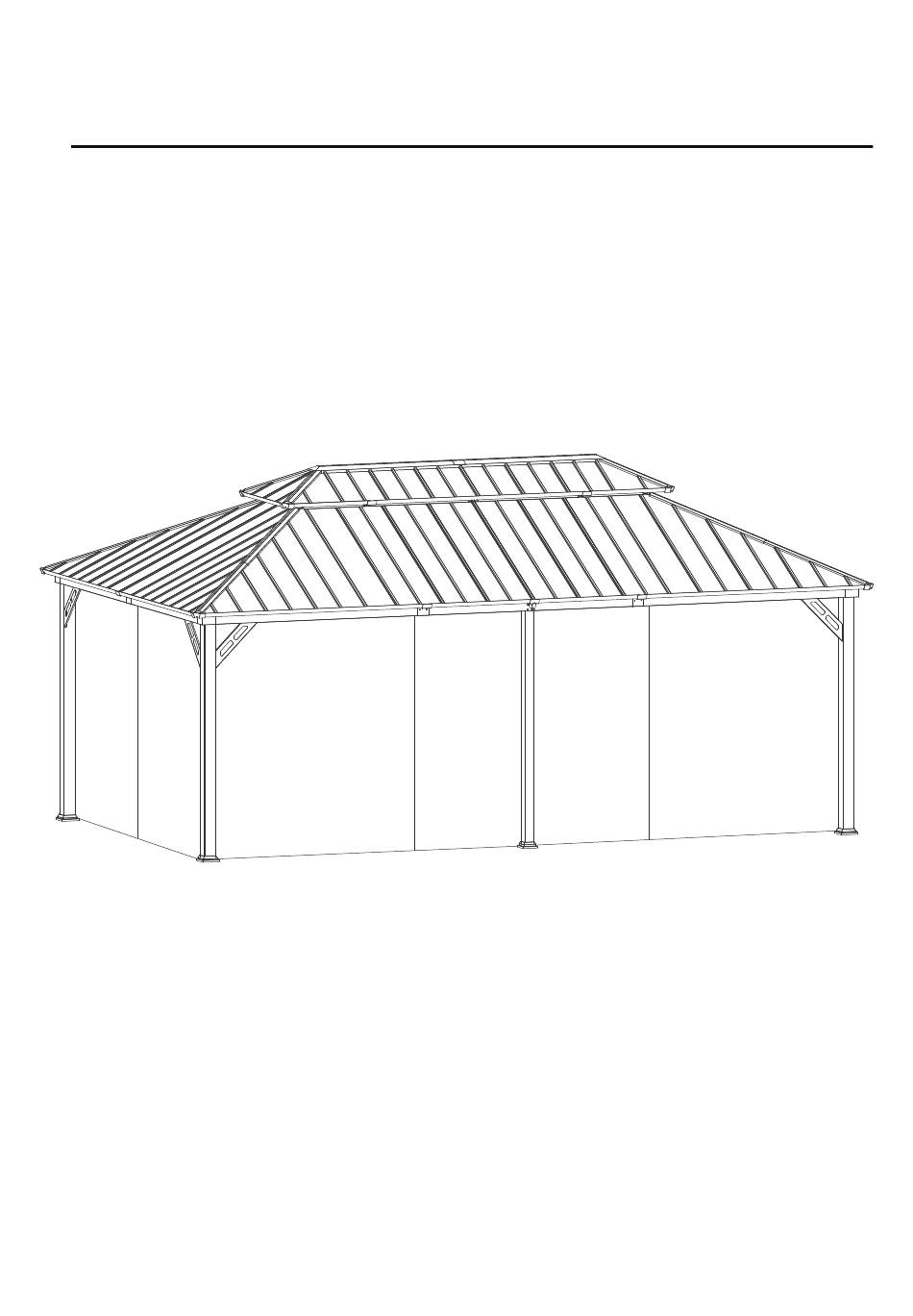

HARDTOP GAZEBO WITH NETTING
If you have any questions about the outdoor gazebo, please feel free to contact us.
Customer Service Email: Service@alaulm.com
1220Gazebo24
IMPORTANT
PLEASE READ BEFORE YOU COMMENCE ASSEMBLY
Follow the guidelines in this user guide to ensure correct
assembly and care for this product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1220Gazebo24 and is the answer not in the manual?

Questions and answers

Carol Friday
June 14, 2025

Need diagram to hang shade curtains - where do we start with panel 1 on the end or length ?

0

Related Manuals for ALAULM 1220Gazebo24

Summary of Contents for ALAULM 1220Gazebo24

  • Page 1 HARDTOP GAZEBO WITH NETTING If you have any questions about the outdoor gazebo, please feel free to contact us. Customer Service Email: Service@alaulm.com 1220Gazebo24 IMPORTANT PLEASE READ BEFORE YOU COMMENCE ASSEMBLY Follow the guidelines in this user guide to ensure correct...

  • Page 3: Specifications

    SPECIFICATIONS...

  • Page 4: Table Of Contents

    Catalog Specifications......................Notice And Warning ................... Exploded Views ......................First Part ......................Second Part ......................... Third Part ......................... Fourth Part ......................Fifth Part ........................Parts List........................11 Hardware List......................15 How to Assemble Hartop Gazbo ................16...

  • Page 5: Notice And Warning

    NOTICE Note: The gazebo needs to be installed in cooperation with five people. The following tools are not included and needed for assembly: Pistol Drill Tape Measure Hammer Screw Driver 2 m Adjustable Ladder 5 people Warning 1. A 5 personal assembly is required for this gazebo. 2.
  • Page 6 F.The product has functional problems G.Other aspects that you are not satisfied with Please feel free to contact us for help. Our after-sales team service Service@alaulm.com ) will reply within 24 hours and will do our best to resolve the problem for you.

  • Page 7: Exploded Views

    EXPLODED VIEWS First Part Second Part Third Part Fourth Part Fifth Part...

  • Page 8: First Part

    FIRST PART...

  • Page 9: Second Part

    SECOND PART...

  • Page 10: Third Part

    THIRD PART...

  • Page 11: Fourth Part

    FOURTH PART...

  • Page 12: Fifth Part

    FIFTH PART...

  • Page 13: Parts List

    Parts List (Box A) Large center Large center Big Top Long Side Big Top Long Side Column beam 1 beam 2 Stopper Tube 1 Stopper Tube 2 4 PCS 1 PC 1 PC 2 PCS 2 PCS Cover plate on Large top Small top Short side...
  • Page 14 Parts List (Box C) Small Top Small Top Large top Big Top Frame Big Top Frame frame short tube Long Tube 1 Long Tube 2 Connector Connectors Plugin 2 PCS 2 PCS 2 PCS 2 PCS 1 PC Upper part Lower part Roof plate Roof Plate...
  • Page 15 Parts List (Box D) Small beams on Small beams on Small top Small top Small top intermediate the upper edge of the lower edge of center beam center beam short side girder the big top the big top 4 PCS 2 PCS 2 PCS 4 PCS...
  • Page 16 Parts List (Box E) Small cover piece Small cover piece Small top short Small top short Small top long side to the left of the to the right of the side left flap side right flap center flap piece big top big top 4 PCS 4 PCS...

  • Page 17: Hardware List

    1. Please ensure that all accessories are complete before starting the installation. 2. Due to the variety of accessories, many accessories may be glued together, please check carefully 3. If any accessories are missing or damaged, please contact the seller immediately. E-Mail: Service@alaulm.com...

  • Page 18: How To Assemble Hartop Gazbo

    Step 1 :Attach the column(A) to the floorboards(C) with STEP 1 screws(FF). Then slip the spike cover(B) into the column(A). FF 16x M6x20...
  • Page 19 Step 2 :Insert the beam inserts(Y8) into short side beam 1 STEP 2 (E3) and short side beam 2(E4) with the holes aligned and fasten with screws(FF). NOTE :Look at the picture to determine the location of the screw holes. FF 16x M6x20...
  • Page 20 Step 3 :Insert the beam insert (Y8) into the long side center STEP 3 beam (E10) and the two long side crossbeams (E8 and E9), aligning the holes, noting the orientation, and tighten with screws (FF). NOTE :Look at the picture to determine the location of the screw holes.
  • Page 21 Step 4 :Install the short side mosquito net tube(T2) on the STEP 4 short side beam(E3 and E4) with screws(FF), slide the mosquito net ring(HH) into the slots of the mosquito net tube(T2) from the side, each mosquito net tube(T2) has 14 mosquito net rings(HH).
  • Page 22 Step 5 Install the long side mosquito net tube(T5) on the long side STEP 5 crossbeam(E8 and E9) with screws(FF), Install the long side center mosquito net tube(T6) on the long side center beam(E10) with screws (FF),slide the mosquito net ring(HH) into the slots of the mosquito net tube(T5) from the side, each mosquito net tube(T5) has 24 mosquito net rings(HH).Secure the beam center stopper (Y6) to the joints of the long side crossbeams (E8 and E9) and the long side center beam...
  • Page 23 Step 6 :Use screws(EE) to connect and fix the connected STEP 6 short side beam(E3 and E4) and column(A), and then use screws(GG) to connect the diagonal brace(H1 and H2) with the short side beam(E3 and E4) and column(A).Use screws (FF) to connect the columns(A) and the connector under inclined beam(Y4) .
  • Page 24 Step 7 :Attach the center column(A1) to the center STEP 7 floorboards(C1) with screws(FF). Then slip the center spike cover(B1) into the center column(A1). Secure the already attached long side center beams(E10) to the center columns(A1) with screws (EE). NOTE :Review the pictures to determine the location of the screw holes and the orientation of the parts.
  • Page 25 Step 8 :Use screws(EE) to connect and fix the connected STEP 8 long side crossbeam(E8 and E9) and column(A), and then use screws(GG) to connect the diagonal brace(H1 and H2) with the side beam(E3,E4,E8 and E9) and column(A). NOTE :Review the pictures to determine the location of the screw holes and the orientation of the parts.
  • Page 26 Step 9 :Fasten the beam corner stopper(Y5) to the corners STEP 9 of the side beam(E3,E4,E8 and E9) with screws(AA). NOTE :Review the pictures to determine the location of the screw holes and the orientation of the parts. Y5 4x M4x16...
  • Page 27 Step 10 :The two large center beams (J2 and J3) are fixed STEP 10 with screws (FF) and connected in the center by a large center beam insert 1(J4).The large center beam lower connectors(Y9) are then fastened to the underside of the two large center beams(J2 and J3) with screws(FF).
  • Page 28 Step 11 :Fasten the two large center beams (J2 and J3) to STEP 11 the long side center beam(E10) with screws(FF). NOTE :Review the pictures to determine the location of the screw holes and the orientation of the parts. FF 4x M6x20...
  • Page 29 Step 12 :Connect the two large top frame long tube(D5 and STEP 12 D6) together with screws(FF).Connect the large top frame short tube(D1) and the big top frame long tube(D5 and D6) with the connector for the upper part of the big top diagonal beam pieces(D) and then lock them with screws(FF).
  • Page 30 Step 13 :Connect the top frame(D1,D5 and D6) to the base STEP 13 frame with center crossbar(J1) and the two large center beams (J2 and J3), place the center crossbar(J1) on top of the center beam lower connector(Y2) and fix it with the screws(GG).
  • Page 31 Step 14 :Insert the lower part of the big top diagonal beam STEP 14 (G2) into the upper part of the big top diagonal beam(G1) and secure with screws(GG). NOTE :Review the pictures to determine the location of the screw holes and the orientation of the parts. G1 4x G2 4x M6x15...
  • Page 32 Step 15 :Adjust the diagonal beam in the right direction, STEP 15 connect the top frame to the bottom section and secure with screws(CC and JJ). NOTE :Review the pictures to determine the location of the screw holes and the orientation of the parts. CC 8x M6x35 M6x55...
  • Page 33 Step 16 :Attach the two small top connectors(D8) together STEP 16 with the small top connectors plugin(D9) and then tighten with the screws(GG). NOTE :Review the pictures to determine the location of the screw holes and the orientation of the parts. D8 2x D9 1x M6x15...
  • Page 34 Step 17 :Screw the small top sloping beam(K) and the STEP 17 small top connector(D8) to the top frame, and then install it with screws(GG). NOTE :Review the pictures to determine the location of the screw holes and the orientation of the parts. M6x15...
  • Page 35 Step 18 :Screw the small top center beam(K1),the small top STEP 18 intermediate center beam(K2) and the small top connector (D8) to the top frame, and then install it with screws(GG). NOTE :Review the pictures to determine the location of the screw holes and the orientation of the parts.
  • Page 36 Step 19 :Attach the large top frame side mosquito net STEP 19 cover plate(X1,X5,X6,X7 and X8) in place between the big top and the small top with screws(FF). NOTE :Review the pictures to determine the location of the screw holes and the orientation of the parts. M6x15...
  • Page 37 Step 20 :Place the small top side girder(L1,L9 and L10) in STEP 20 the center of the small top diagonal beams,and then attach the small top side girder(L1,L9 and L10) to the small top with screws(FF). NOTE :Review the pictures to determine the location of the screw holes and the orientation of the parts.
  • Page 38 Step 21 :Place the small top side down stop tube(M1,M11, STEP 21 M12 and M13) in the center of the small top diagonal beams,and then attach the small top side down stop tube (M1,M11,M12 and M13) to the small top with screws(FF). Fix the small top intermediate center beam(K2) to the small beam in center of the long side of the small top(M13) with the screws(FF).
  • Page 39 Step 22 :Attach the small top cover piece(P1,P2 and P7) to STEP 22 the small top frame with the screws(FF) in the position shown in the illustration. NOTE :Review the pictures to determine the location of the screw holes and the orientation of the parts. FF 8x M6x20...
  • Page 40 Step 23 :Attach the layer(S) to the small top cover piece(P1, STEP 23 P2, and P7) with the screws(FF) in the position shown in the illustration. NOTE :Review the pictures to determine the location of the screw holes and the orientation of the parts. FF 40x M6x20...
  • Page 41 Step 24 :Attach the roof plate(R9),the roof plate with baffle STEP 24 (R10) and hook up(P) to the small top connector(D8) with screws(KK), attach the small top diagonal beam cover(R8) to the four ridges of the small top with screws(QQ), then attach the inclined beam stopper(Y3) to the four edge corners of the small top with screws(FF).
  • Page 42 Step 25 :Secure the small beams on the edge of the big top STEP 25 (L5,L6,L11 and L12) to the large top frame with screws (FF). NOTE :Review the pictures to determine the location of the screw holes and the orientation of the parts. FF 32x M6x20...
  • Page 43 Step 26 :Place the small beam in the center of the long side STEP 26 of the small top(L13) on the large center beam(J1,J2 and J3) of the big top and secure it with screws(FF) on both sides.Secure the small beam(L13) to the large center beam (J2 and J3) with screws(GG).
  • Page 44 Step 27 :Fasten the large center beam insert 2(J5) to the STEP 27 large center beam(J2 and J3) with screws(FF). Secure the big top downtube(M7,M8,M14,M15,M16 and M17) to the large top frame with screws (FF). NOTE :Review the pictures to determine the location of the screw holes and the orientation of the parts.
  • Page 45 Step 28 :Secure the left and right side large top cover tabs STEP 28 (Q1,Q2,Q3,Q4,Q5 and Q6)to the big top frame with screws (FF) in the locations shown in the mounting illustrations. NOTE :Review the pictures to determine the location of the screw holes and the orientation of the parts.
  • Page 46 Step 29 :Secure the front and rear side large top cover tabs STEP 29 (Q1,Q2,Q3,Q4,Q5,Q6,Q7 and Q10)to the big top frame with screws(FF) in the locations shown in the mounting illustrations. NOTE :Review the pictures to determine the location of the screw holes and the orientation of the parts.
  • Page 47 Step 30 :Attach the layer(S) to the large top cover piece STEP 30 with the screws(FF) in the position shown in the illustration, then attach the inclined beam stopper(Y3) to the four edge corners of the large top with screws(FF). NOTE :Review the pictures to determine the location of the screw holes and the orientation of the parts.
  • Page 48 Step 31 :Secure the bottom half of the large top diagonal STEP 31 beam cover plate(R5) to the diagonal beam with screws (QQ), then insert the top half of the large top diagonal beam cover plate(R4) over the bottom half of the large top diagonal beam cover plate(R5) by aligning it with the holes in the small uprights,and then secured with screws(QQ).
  • Page 49 Step 32 :Hang the mosquito net(U3) on the mosquito net STEP 32 ring(HH) on the inside of the mosquito net tube(T2,T5 and T6).Attach the four corners of the sticky tape to the post. NOTE :Mosquito net with 12 hanging loops on the long side and 7 loops on the short side.
  • Page 50 Step 33 :Hang the surrounding cloth(V3) on the mosquito STEP 33 net ring(HH) on the outside of the mosquito net tube(T2,T5 and T6).Attach the four corners of the sticky tape to the post. NOTE :Mosquito net with 12 hanging loops on the long side and 7 loops on the short side.
  • Page 51 Step 34 :Secure the post to the ground with ground nails STEP 34 (PP) and expansion screws(UU). NOTE :Review the pictures to determine the location of the screw holes and the orientation of the parts. M6X80 D8X180...
  • Page 52 www.alaulm.com...
