Aiwa AT-X80P - Stereo Earphones Manual

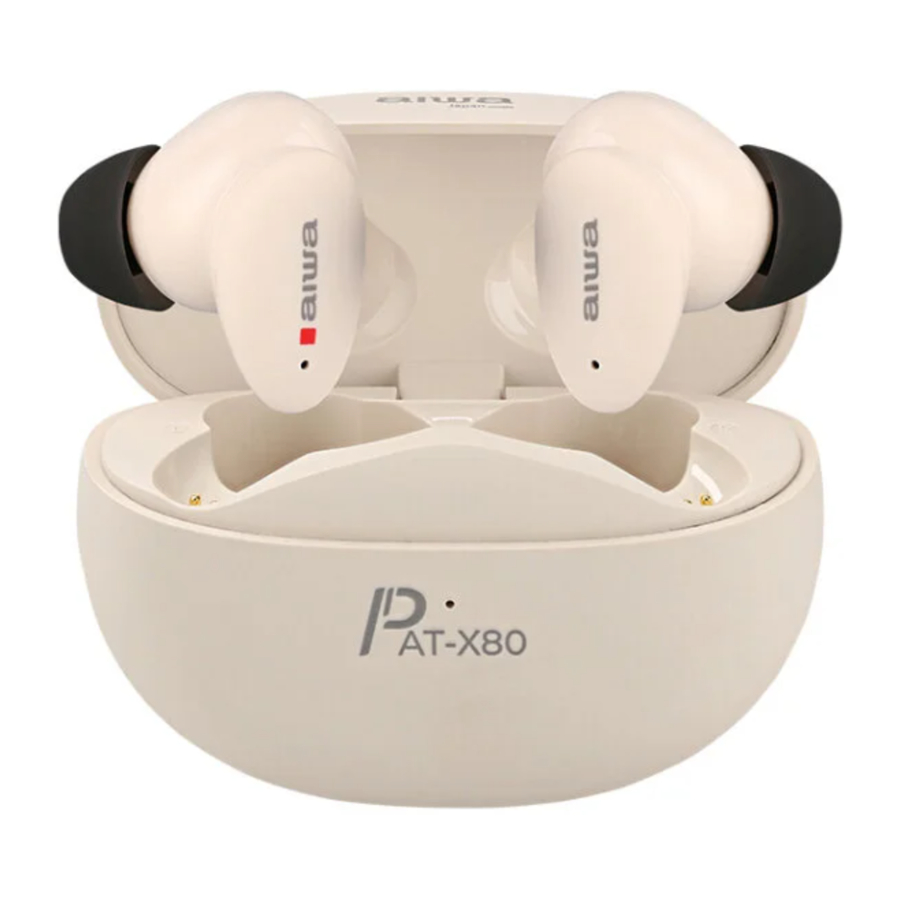

Product Schematic Picture

Product Specifications

Model: AT-X80P
BT Version: V5.1
IP Rating: IPX5
Rated voltage/current: 5V 1A
Rated Power: 3mW
Frequency Response: 20Hz-20KHz
Battery (Earbuds): 3.7V/30mAh
Battery (charging case): 3.7\//300mAh
Supported Profiles: A2DP, AVCTP, AVDTP, AVRCP, HFP, SPP, SMP, ATT, CAP, CATT, RFCOMM, SDP, L2CAP PROFILE
Audio Decoding: AAC, SBC Audio decodes
Impedance: 32Ω ±15%
Sensitivity: 104dB ±3dB
Transmission Distance (Estimated): 10 Meters (No Obstacles)
Working Time: 5 Hours (Approx)
Standby Time (Earbuds + Case): 280 Days (Approx)
Charging Time (Earbuds): 1.5 Hours (Approx.)
Charging Time (charging case with Earbuds): 2 Hours (Approx.)
Earbuds Weight: 3g each
Charging Case Weight: 32g

*Charging case holds approximately 2 full earbuds charges.

Schematic diagram of product operation

Product Instructions for Use

Power ON

Open the charging box cover and take the earphones out. The earphones will automatically turn on. Once turned on, the blue light on the earphones will remain illuminated for 2 seconds before entering pairing mode. The red and blue lights will then flash alternately during pairing. Upon successful pairing, the red and blue lights on the main earpiece will flash alternately, while the auxiliary earpiece will have no light effect.
* Before using it for the first time, make sure the headset is fully charged.*

Power OFF

Place the (left/right) earphone into the charging box separately, with the green light flashing once to check that the charging is normal. After closing the cover, the earphone will automatically turn off and begin to charge.
*AT-X80P will power OFF automatically after 3 minutes of disconnection.

Music Control

Call Control

Connecting the Product

1. Turn on Bluetooth (BT) on your mobile device.

2. Remove the earphones from the charging case and connect to the "AIWA AT-X80P" from your Bluetooth device.

3. The indicator light on the earbuds will turn off upon a successful connection.

Troubleshooting

L side earbud cannot be linked with R side earbud

Solution: Place the earbuds back into the charging case and close the case.
Re-open the lid after a few seconds. The earbuds should now be linked to each other and are ready to be connected to your mobile device.

If the above solution does not work, please clear the earbuds' pairing history:

1. Turn off and disconnect all Bluetooth devices from the earbuds.
2. Remove ONE (1) earbud from the charging case and click on the touch sensor FOUR (4) times. The red light will flash three times.
3. Place that earbud back into the charging case.
4. Repeat this process for the other earbud.
5. Remove both earbuds from the charging case and wait for them to link to each other before initiating pairing with your Bluetooth device

Battery & Charging

Device low battery

When the earphones have low battery, the red light flashes every 5 seconds and prompts with a 'Dong Dong' sound every 20 seconds. Please place the earphones in the charging box to recharge.

Place both earbuds back into the charging case.
*The charging case indicator light will turn solid green.
*Earbuds are fully charged when the charging case indicator light turns off.
*Approximate earbuds charging time: 1.5 hours.

Low battery of charging case

When the headphones are placed in the charging box or removed, the orange light on the charging box flashes 4 times, indicating that the charging box has low battery and needs to be charged. Please use a standard charger to charge it.

While charging: Orange light flashes.
Full charge: Solid green light.
Unplug the charging cable: The charging box indicator light turns off.
Approximate charging case charging time: 1.5 hours.
