Summary of Contents for Aiwa Prodigy Micro

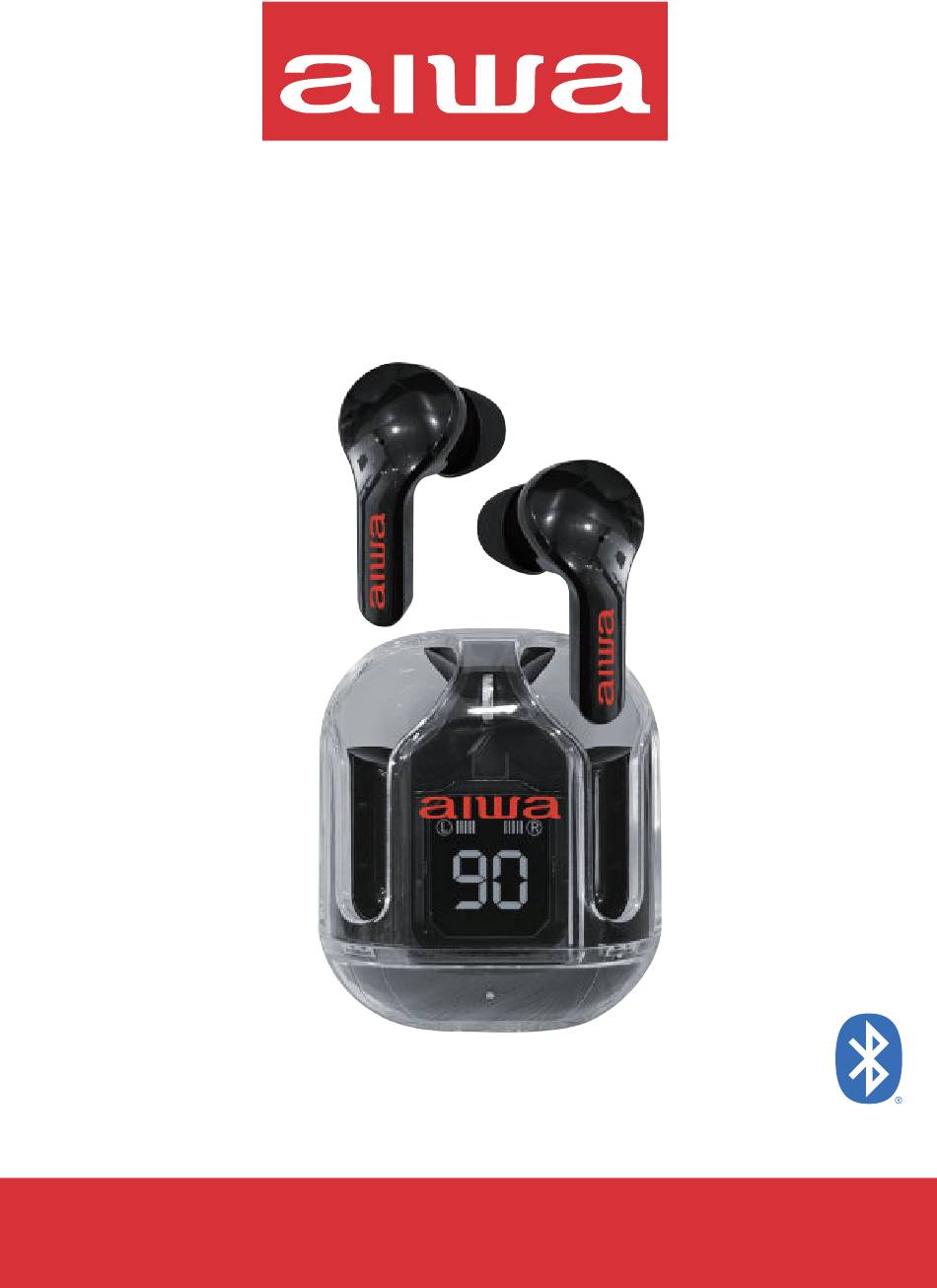

- Page 1 Prodigy Micro True Wireless Earphones Quick Start Guide Item: AI1012...
-
Page 2: What's Included
WHAT’S INCLUDED AI1012 Earphones and Charging Case Silicone Eartips USB-C Cable... -
Page 3: A Closer Look
A CLOSER LOOK Charging Port LED Display Screen Right Earphone Battery Icon Charging Case Left Earphone Battery Level Battery Icon LED Indicator LED Indicator Multi-function button Multi-function button (Touch Control) (Touch Control) -
Page 4: Charging The Earphones
CHARGING Charging the Earphones Place the earphones in the charging case in order to charge. Charging the Case Insert the included charging cable’s USB-C end into the charging port on the case. Insert the other end into a USB port on a computer or a suitable wall adapter. -
Page 5: Powering On/Off
POWERING ON/OFF When first using your earphones place them into the case. Remove them from the case and they will automatically turn ON. Place them back into the case and they will automatically turn off. Note: If the earphones are out of the charging case, press and hold the multi-function button on both earphones for 3 seconds to power on, or put them back into the case and take out again to turn ON. -
Page 6: Bluetooth Pairing
Remove your earphones from the case and they will power ON and go into pairing mode. When in pairing mode, one earphone will flash red and blue, while the other earphone will stop flashing. AIWA Prodigy Micro Go to the Bluetooth settings menu on your phone. Make sure that Bluetooth is turned on. -
Page 7: Using Your Earphones
USING YOUR earphones LEFT EARPHONE Play/Pause: Press once Previous Track: Press and hold Volume +: Double Press Voice Assistant: Triple Press Answer Call: Press once (when incoming call) End Call: Press once Reject Call: Press and hold for 2 seconds Power OFF: Press and hold for 3 seconds RIGHT EARPHONE Play/Pause: Press once... -
Page 8: Specifications
Specifications Driver Diameter: 8mm Frequency Response: 20-20kHz Impedance: 32ohm Bluetooth version: v5.3 Transmission Distance: 10m Playtime: 3-4 Hours ** Battery capacity (Earbuds): 30mAh Battery capacity (Case): 180mAh Charging input: DC 5V 1A (max) Charging type: Type-C **Applicable at 50% of maximum volume. Results will be lower when volume is higher. -
Page 9: Safety Precautions
SAFETY PRECAUTIONS When using your earphones, basic safety precautions should always be followed including: 1. READ ALL INSTRUCTIONS BEFORE USING YOUR EARPHONES AND CHARGING CASE. 2. Do not use the product near water. Do not put on wet surfaces. 3. Only clean using a clean cloth. 4. -
Page 10: Fcc Statement
FCC STATEMENT FCCID: 2AL9B-AI1012 Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 11: Warranty
To Obtain Warranty Service and Troubleshooting Information: Call (877) 397-8200 or visit our website at www.aiwa.co. To receive Warranty service along with the name and address of an authorized product service center, the original consumer purchaser must contact us for problem determination and service procedures. - Page 12 ©2024 Sakar International 195 Carter Drive Edison, NJ 08817 www.sakar.com Support: (877)-397-8200 support@sakar.com...
