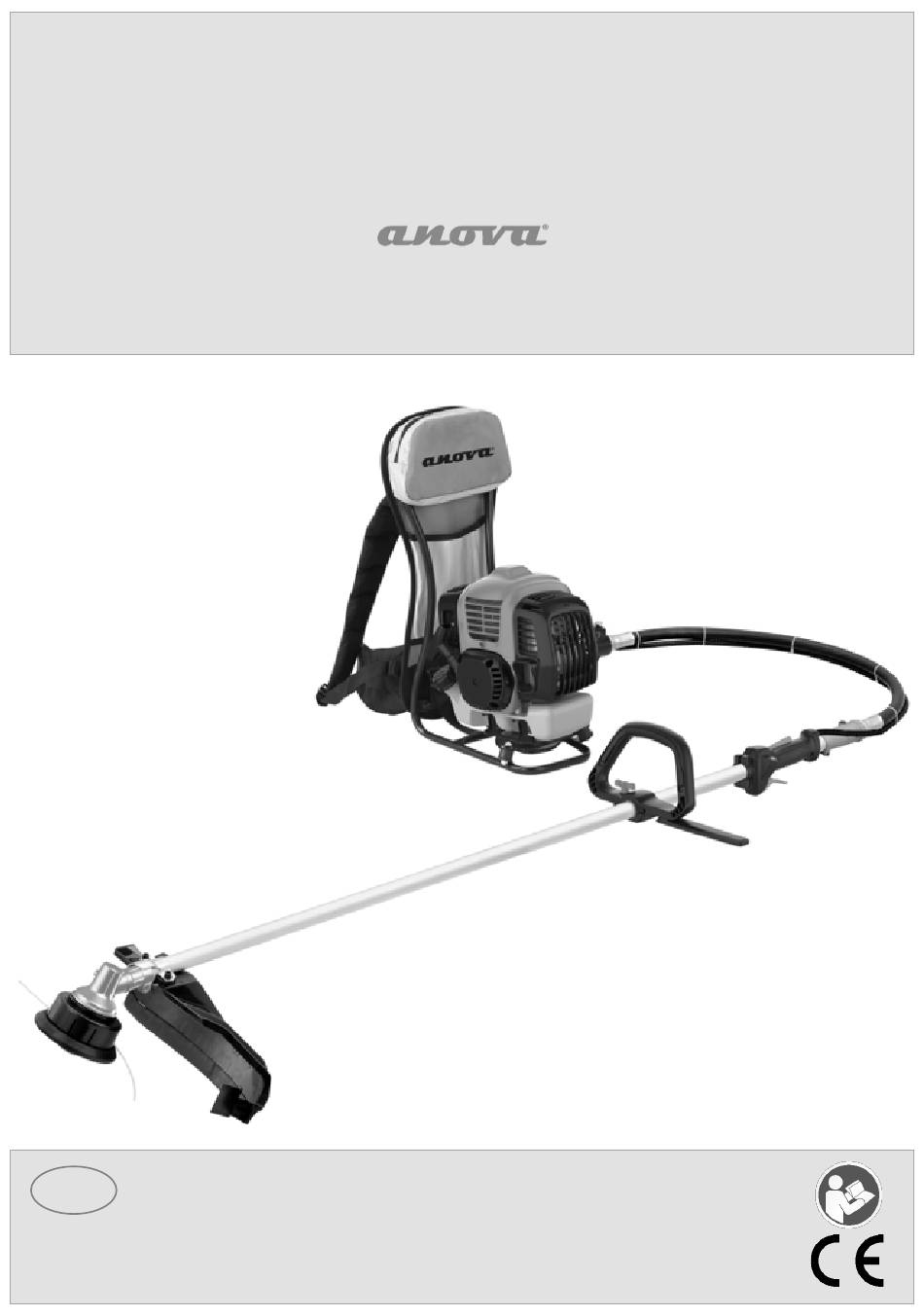

- Page 1 Backpack brush cutter D553M Instructions and user manual Millasur SLU Rúa Eduardo Pondal, nº 23 - Pol. Ind. Sigüeiro 15688 – Oroso, A Coruña - 981 696 465 - www.millasur.com...
- Page 2 Anova would like to congratulate you for having chosen one of our products and guarantees the assistance and cooperation that has always distinguished our brand over time. This machine is designed to last many years and to be of great use if used in accordance with the instructions contained in the user manual.
- Page 3 INDEX 1. SECURITY INSTRUCTIONS 2. TECHNICAL SPECIFICATIONS 3. PRODUCT DESCRIPTION 4. UNPACKING AND ASSEMBLY 4.1. Transmission assembly 4.2. Mounting the disc guard 4.3. Disc assembly 3 points 4.4. Disassembly of the disk 4.5. Nylon head 5. INSTRUCTIONS FOR USE 5.1. Before using 5.2.
-
Page 4: Security Instructions
1. SECURITY INSTRUCTIONS 1.1. Safety symbols HeThe use of symbols in this manual is intended to draw your attention to possible hazards. The safety symbols and accompanying explanations must be perfectly understood. Warnings by themselves do not eliminate risks and cannot replace correct actions to prevent accidents. Read the instruction manual and follow all warnings and safety instructions before any use, refer to the corresponding paragraph in this manual. -
Page 5: Safety Warnings
Because Anova regularly improves its products, you may find slight differences between your machine and the descriptions contained in this manual. Anova may make changes to the machine without prior notice and without obligation to update the manual, although essential safety and operating features will remain unchanged. - Page 6 1.2.2. Preparation a) Gasoline is highly flammable. Store fuel in containers specifically designed for this purpose. Only refuel outdoors and do not smoke while refueling. Add fuel before starting the engine. Never remove the fuel tank cap or add gasoline while the engine is running or when the engine is hot.
- Page 7 n) Do not use the machine when you are tired, sick or under the influence of substances or medications that may affect its capacity. o) Comply with local regulations when using the brush cutter. p) Wear safety glasses and hearing protection. Other safety equipment for hands, legs and feet is recommended.
-
Page 8: Expected Use
Turn off the engine, wait for the cutting device to stop and disconnect the spark plug cap. Place the cutting device protection. Use protective gloves when handling the blades. Keep the blade protection device activated. Hold the machine by the handles only and position the cutting device in the opposite direction to that used during operation. -
Page 9: Technical Specifications
Check that the cutting attachment has stopped rotating with the engine at idle before starting to use the machine. 2. TECHNICAL SPECIFICATIONS Characteristics Start manual start Power 1.9kW – 2.6 HP Weight 10.3kg (empty tanks and without cutting accessory) Fuel tank capacity 950 cm3 –... -
Page 10: Product Description
3. PRODUCT DESCRIPTION 1. Transmission tube 14. Transmission elbow 2. Throttle trigger 15. Protector accessory 3. Engine switch 16. Cutting accessory guard 4. Throttle trigger lock 17. Pipe wrench 5. Suspension point 18. Wrench 6. Cables 19. S5 Allen Keys 7. -
Page 11: Unpacking And Assembly
4. UNPACKING AND ASSEMBLY Warning Make sure the brush cutter is turned off properly and the engine has stopped completely before assembly and adjustment. 4.1. Transmission assembly When assembling this machine, please follow the instructions for assembly steps. 1. Assemble the sheath that connects the motor and the bar. Attach the pod to the engine transmission mount by pulling up on the transmission pin and insert the pod into it. - Page 12 3. Handlebar/Handle Mount Loosen the knob to mount the handle to the bar and then tighten it. 4.2. Mounting the disc guard 1. Place the protection on the accessory. (fig. 3-1) 2. Mount and tighten the screws. (fig. 3-2) Warning 1.
- Page 13 4.3. Disc assembly 3 points Remove the outer flange after loosening the nut, then attach the disc, outer flange, guard and nut according to priority as shown in the picture below. Please note that the rotation direction of the disk should be the same as the image below.
- Page 14 4.5.1. Remove the elbow nut Align the two holes of the centering washer and the guard, use a screwdriver to hold the centering washer as shown below and turn the socket wrench clockwise, the nut will be released. 4.5.2. Nylon head assembly Remove the other guard after loosening the nut.
-
Page 15: Before Using
5. INSTRUCTIONS FOR USE 5.1. Before using Always read the instruction manual carefully and check the machine before using it. Warning The brush cutter is equipped with a two-stroke engine, so there is no need to refill the oil separately. Fill properly mixed oil with fuel. Check the cutting accessory, never use dull, cracked or damaged blades. -
Page 16: Check The Air Filter
5.3. Fuel mixture container 2 stroke engine oil *(Optional) a) Place the fuel mixture container on a flat, firm surface. b) First fill the gasoline up to the scale marked “500” gas. c) Then fill in the 2-stroke engine oil until the scale reads “40:1” oil. d) Gently shake the container and then fill the fuel tank. - Page 17 2) Turn the engine switch to the "I" position. (Fig. 13) Press the throttle trigger, throttle trigger lock and lock pin together to lock the trigger. Attention: the machine has the Auto re-start power switch, which will always be in position "I". Press it to "O"...
-
Page 18: Adjust The Harness
1) When the rotation speed of the motor changes. 2) When sparks occur. 3) When the disk is damaged. 4) In case of ignition failure. 5) In case of high vibration. 6) When flames or smoke appear. 7) With rain or storm. Warning Check that the cutting attachment always stops when the engine is idling. -
Page 19: Cutting Accessories
5.7. Court During cutting, do not keep the operating revolutions just above the clutch engagement revolutions. Any prolonged use at low rpm is likely to cause premature clutch wear. On the other hand, the user should not keep the engine revolutions at the maximum revolutions after cutting. - Page 20 In case of doubt or lack of knowledge of the characteristics of each accessory, contact your official Anova distributor. 5.9. Rollback and related warnings Kickback is a sudden reaction to a pinched or snagged rotating disc. Pinching or snagging causes the rotating accessory to come to a rapid stop, which in turn causes the uncontrolled tool to be forced in the opposite direction of the accessory's rotation at the stuck point.
-
Page 21: Maintenance And Cleaning
The cutting attachment can cause an accident if it continues to rotate after the engine has stopped or after the engine switch has been released. When the machine has stopped, carefully check that the cutting attachment has stopped rotating before leaving the machine. 6. -
Page 22: Air Filter
Clean the outside of the spark plug. Remove it and check the distance between electrodes. Adjust the gap to 0.6-0.7 mm or replace the spark plug. Check that the spark plug is fitted with a spark plug cap. Clean the machine's cooling system. Clean the outside of the carburetor and the space around it. -
Page 23: Spark Plug
Warning Using gasoline or combustible solvents for cleaning may cause a fire or explosion. Therefore, only use soapy water. Never use the machine without the air filter. 6.3. Spark plug To ensure proper engine operation, the spark plug must be properly gapped and free of deposits. -
Page 24: Storage And Transportation
6.5. Empty the fuel tank 1) Unscrew the fuel tank cap. 2) Pour the fuel completely into an appropriate container. 3) Press the primer cylinder several times to pump residual fuel into the fuel tank. 4) Pour fuel again. 5) Place the machine on a level, stable surface. 6) Reinstall the fuel tank cap. -
Page 25: Troubleshooting
Pack the product well or use the original packaging to avoid damage during transportation. Wear protective gloves when handling cutting discs or accessories. Keep the disk protection device activated, except when intervening directly on the disk. Store the machine in a dry, well-ventilated place with the fuel tank empty. Do not store fuel near the machine. -
Page 26: Warranty Period
Misuse, neglect, careless operation or lack of maintenance. Defects caused by incorrect use, damage caused due to manipulations carried out by personnel not authorized by Anova or use of non-original spare parts. Defects of normal wear parts, such as bearings, brushes, cables, plugs or accessories such as drills, bits, saw blades, etc. - Page 27 The guarantee must be correctly completed with all the requested information, and accompanied by the purchase invoice. Anova reserves the right to reject any claim where the purchase cannot be verified or where it is clear that the product was not maintained properly (maintenance, clean ventilation slots, lubrication, carbon brushes regularly maintained, cleaning, storage, etc.) .
-
Page 28: Ec Declaration Of Conformity
In the event that the machine is modified and this modification is not approved by the manufacturer and communicated to the distributor, this declaration will lose its value and validity. Machine name: BACKPACK BRUSH CUTTER D553M Model: Recognized and approved standard to which it complies: Directive 2006/42/EC...
