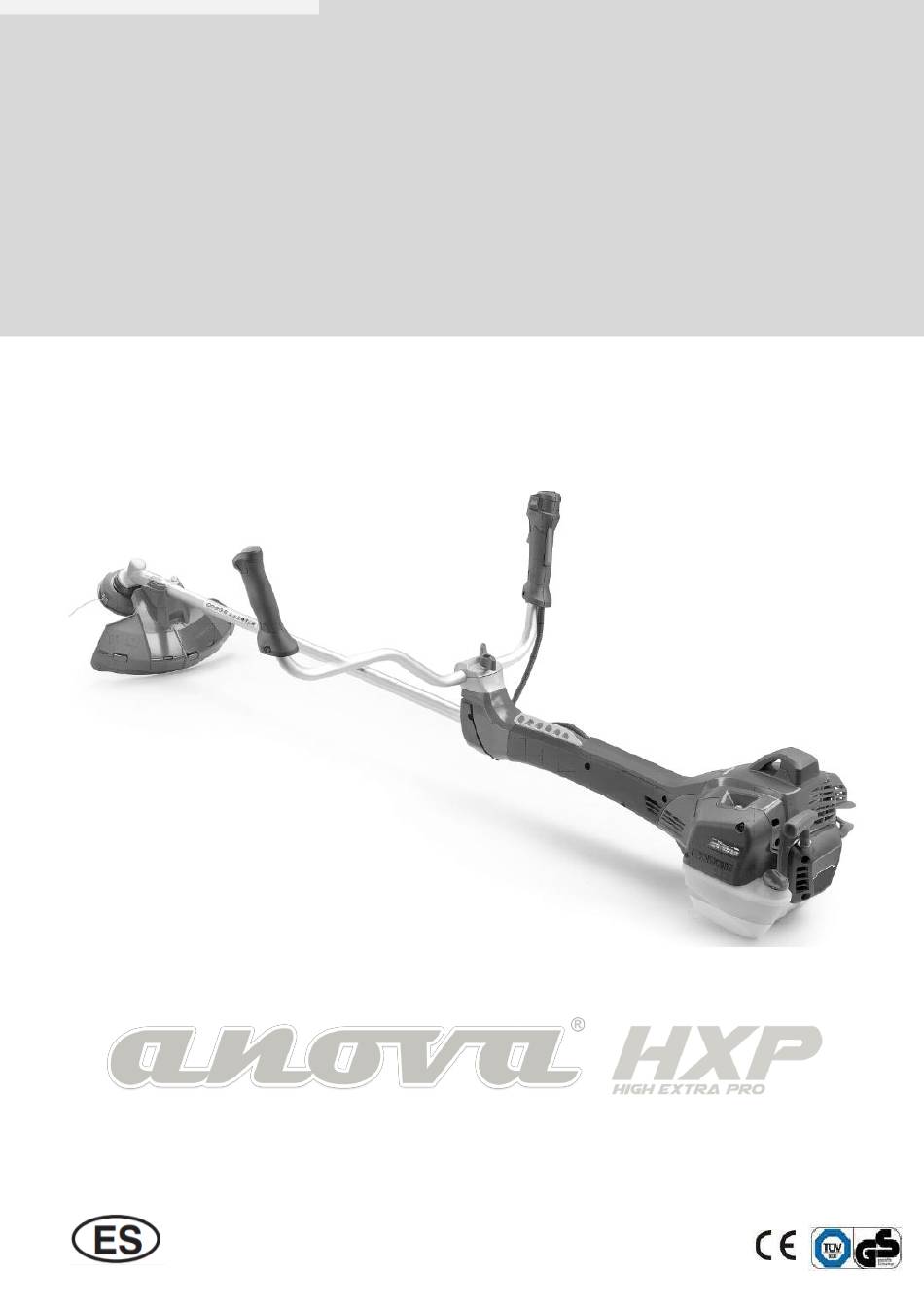

- Page 1 User instructions D546HXP Millasur, SL. Rúa Eduardo Pondal, nº 23 - Pol. Ind. Sigüeiro 15688 - Oroso - A Coruña 981 696465 www.millasur.com...
- Page 2 ANOVA would like to congratulate you for having chosen one of our products and guarantees the assistance and cooperation that has always distinguished brand over time. This machine is designed to last many years and to be of great use if used in accordance with the instructions contained in the user manual.
-
Page 3: Table Of Contents
CONTENT ABOUT THE MANUAL Certain points in this manual contain important and significant information with different levels of relevance depending on their indicator of NOTE either IMPORTANT. These points offer more information about what is indicated in the paragraph in which they are located, in order to avoid and prevent damage to the machine or the user. -
Page 4: Information And Symbols
1.- KNOW THE MACHINE 1.1. Information and symbols ATTENTION A brush cutter can be very dangerous if used incorrectly or carelessly, and can cause serious damage and injury to the user or others nearby. It is very important that you read and understand these instructions correctly. -
Page 5: Identification Of The Parts
1.2. Identification of the parties. 1. Cutter head 13. Engine 2. Upper head protection 14. Spark plug 3. Transmission elbow 15. Starter Handle 4. Cut protection 16. Fuel tank cap 5. Transmission bar 17. Fuel primer 6. Handlebar clamp cover 18. -
Page 6: Personal Protection Equipment
g. All guards, covers and handlebars must be correctly positioned before starting to use the machine. Make sure the spark plug cover and ignition wire are undamaged to avoid damage from electrical shock. h. The machine operator must ensure that there are no people or animals at least 15 meters away from the workplace. -
Page 7: Machine Protection Equipment
Gloves: They should be used as required and always for handling cutting elements. Footwear: equip sturdy boots with protective toe caps and non-slip soles. Clothes: Wear clothing made of appropriate resistant fabrics and avoid loose clothing that may get tangled in bushes or impede free movement with the machine. Always wear resistant and special pants for use with a brush cutter. - Page 8 2.3.3. Cutting guard This protector serves the purpose of preventing certain debris from being thrown backwards towards the operator's position. It also protects the operator from possible contact with the cutting instrument. Check that this protector is not damaged or broken. Replace it if it has received a strong impact or is cracked or broken.
-
Page 9: Cutting Equipment
2.3.7. Tightening nut A tightening nut on the head is used to adjust certain cutting elements. This is tightened counterclockwise and against the direction of rotation of the head. To loosen it, you must do so in the direction of rotation of the cutting element (ATTENTION: the nut has a left-hand thread). - Page 10 floating, as they can cause damage to the machine and serious injuries to the user. Keep the cutting teeth of the blades properly sharpened. Follow the recommendations and use appropriate files. A poorly sharpened blade/disc increases the risk of accidents. Check the cutting element regularly for damage or breakage.
-
Page 11: Operating Instructions
3.- Operating instructions 3.1. Machine preparation 3.1.1 Handlebar assembly Place the handlebar on the handlebar support base of the brush cutter bar. Then use the base cover and tightening screw to secure it properly. 3.1.2. Attaching discs/blades and nylon heads ATTENTION: When placing a cutting element in the transmission elbow, it is essential that the raised section of the centering washer fits perfectly in the central hole of the cutting element. - Page 12 Place the disc/blade (C), clamping washer (D) and lower protection cup (E) on the output shaft transmission elbow. Install the nut (F). The nut must be tightened to a pressure of 35-50Nm (3.5-5 kpm). Use the key provided with the machine. Keep the wrench as close to the cut guard as possible.
-
Page 13: Fuel Management
3.2. Fuel management 3.2.1. Fuel safety Never start the machine: - If fuel has been spilled on it. Wipe up spills and allow remaining fuel to evaporate. - If you have been wet with fuel or your clothes contain flammable products. Change clothing and wash away any remaining fuel. - Page 14 3.2.4. Gasoline Always use good quality gasoline with at least 90 octane (RON). If the machine has a catalytic converter, always use a rich mixture of unleaded gasoline and 2T oil. Leaded gasoline will destroy the catalyst. Use low-emission gasoline if available from your dealer. The lowest recommended octane rating is 90 (RON).
-
Page 15: Use Of The Machine
3.2.7. Supply fuel Take the following precautions in order to reduce the risk of fire: a. Do not smoke or place high temperature objects nearby. b. Always turn off the machine before refilling the fuel tank. c. Stop the engine and let it cool for a few minutes after a working time to refill. - Page 16 Do not allow unauthorized persons in the work area, as there is a very significant risk of serious injury. The safety distance is 15 meters. 3.3.2.1. Cold start: This type of start is required when the machine has more than 5 minutes off since the last job or after long periods of storage.
-
Page 17: General Work Tips
3.3.2.3. Shutdown Turn off the machine by moving the control switch to the “O” position. 3.4. General work tips IMPORTANT: This section describes basic work and safety techniques on brush cutters. If you encounter a situation where you are unsure how to deal with it while working, consult an expert. - Page 18 Never lean on the cutting guard. Keep people outside of work at a distance while you work. Children, animals, observers or collaborators must be at least 15 meters away. Turn off the machine if anyone approaches and enters your work area. Never turn the machine backwards without first ensuring that no one is behind you within the safety area.
-
Page 19: Maintenance
3.4.4. Grass cutting with nylon head 3.4.4.1. Grass Trimming: Place the cutting head right on the ground and with a angle. The work must be done with the final tip of the nylon. Let the nylon work at its own pace. Do not put more line than slight necessary into the cutting area. - Page 20 ATTENTION: If the carburetor adjustment cannot be carried out, consult the appropriate technical service of your dealer. Do not use the machine until it is properly adjusted and repaired. If it is necessary to adjust the L and/or H screw, consult your service center for advice. 3.5.2.
-
Page 21: Maintenance Intervals
which will reduce the performance and correct operation of the spark plug. If the machine shows poor power, difficulty starting, or runs intermittently at idle: always check the spark plug before making any other adjustments. If the spark plug is dirty, clean it and check that the electrode has a gap of 0.6-0.7mm. The spark plug must be replaced after one month of use or sooner if necessary. -
Page 22: Diagnosis And Troubleshooting
3.7. Diagnosis and troubleshooting What to do when... Correction Correction Source of the problem Source of the problem 1. Engine won't start or won't stay on 3. Engine runs intermittently and loses power Incorrect ignition Check the spark plug Follow the Dirty spark plug or instructions (ch. -
Page 23: Technical Characteristics
4.- Technical characteristics Unit Technical data D546HXP 46.5 Displacement 1.95 Maximum power Weight (without fuel, harness, cutting 8.65 equipment and protector) Maximum rotation speed 10,000 in grass / 10,500 in scrub min-1 Shaft output speed 7750 in grass / 8150 in scrub min-1 min-1 3000 +/-400... - Page 24 5.- Certificates DISTRIBUTION COMPANY MILLASUR, SL RUA EDUARDO PONDAL, Nº 23 PISIGÜEIRO 15688 OROSO - A CORUÑA SPAIN EC DECLARATION OF CONFORMITY In compliance with the different CE directives, it is hereby confirmed that, due to its design and construction, and according to the CE mark printed by the manufacturer on it, the machine identified in this document complies with the relevant and fundamental health and safety requirements.
