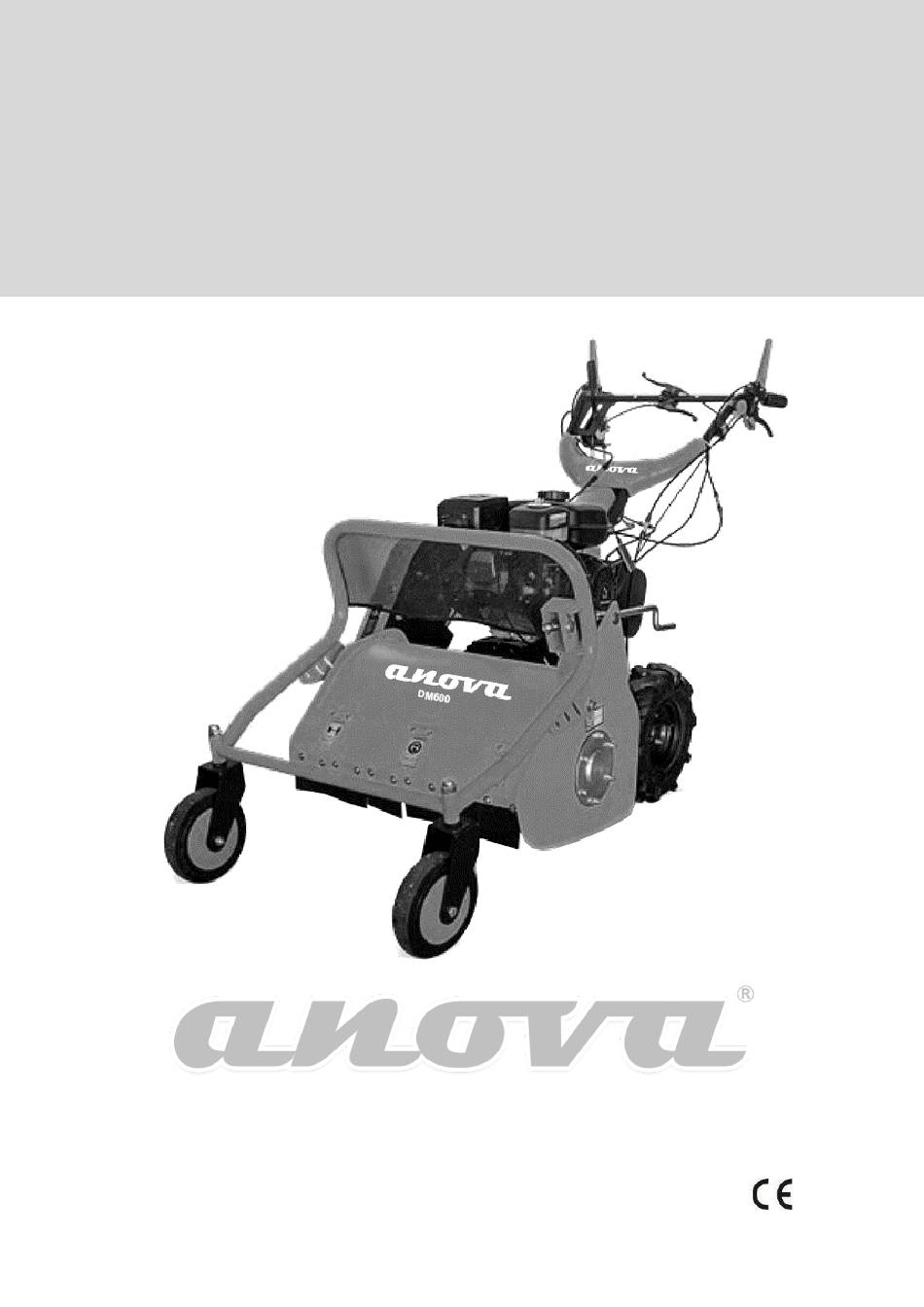

- Page 1 Instructions - User Manual HAMMER BRUSH CUTTER DM600 Millasur, SL. Rúa Eduardo Pondal, nº 23 - Pol. Ind. Sigüeiro 15688 - Oroso - A Coruña - 981 696 465 www.millasur.com...
-
Page 2: Information About This Manual
For more information or questions you can contact us through our web supports such as www.anova.es or www.millasur.com INFORMATION ABOUT THIS MANUAL Please pay attention to the information provided in this manual and on the appliance for your safety and that of others. -
Page 3: Important Safety Rules
Important safety rules 1) Before using the machine, please read the instructions carefully and follow the instructions in the instruction manual for starting, adjustment and maintenance. 2) Before using the machine, pay attention to the following items: Check the crankcase and transmission case for oil leaks; engine oil and the quality of engine oil in the crankcase and transmission case. - Page 4 start, heavy loads are not allowed immediately, especially for new machines or overhauled machines. 8) Driving on cement, slate or stone piles with rotating blades is not allowed. In rotary tillage operation, attention should be paid to avoid collision with hard objects such as stones, to avoid damaging the rotary blade.
- Page 5 Security warning content Training a) Please read the operating and maintenance instructions carefully to be fully familiar with all operating mechanisms and methods for operating the machine. Master how to quickly stop and separate the operating mechanism. b) Children can never use the machine. Adults who don't read the instructions don't either.
- Page 6 Engine exhaust gas is harmful and must not be operated indoors. Do not operate machine without factory covers and guards. k) Keep away from children and pets. Do not overload the machine by going too deep into the ground you are working on (the machine cuts the brush shallowly).
- Page 7 security symbols...
- Page 8 Index 1. Technical data of the machine 2. Installation method 3. Instructions for use 4. Precautions for use 5. Maintenance 6. Adjustment methods 7. Troubleshooting 8. Scope 9. Environment 10. Exploded view 11. Certificate of Conformity (CE)
-
Page 9: Technical Data Of The Machine
1. Technical data of the machine Data sheet This product is suitable for cutting weeds in mountainous areas, drylands, wastelands, greenhouses and orchards. DM600 Motor Gasoline Transmission system strap system clutch system tension wheel Start System Manual working width 600mm Rotary blade radius ≥... - Page 10 2. Installation method Assembly after unpacking Install the handlebar: install the handlebar on the handlebar seat and lock the bolt. Adjust the clutch handle according to the proper position. Cable Installation and Adjustment Clutch Cable Adjustment 1) Screw the adjusting bolt on both sides of the clutch cable ends into the clutch handle and clutch rocker arm bolt hole.
- Page 11 6) Prepare before starting according to the motor user manual. 3. Instructions for use engine start Note: The gear lever must be in the neutral position. 1) Start the engine as specified in the engine owner's manual. 2) The engine should run for 2-3 minutes at idle speed (1500-2000 rpm) without load. 3) Check if the motor is running normally.
-
Page 12: Precautions For Use
rotate counterclockwise, it shrinks. 4. Precautions for use 1) It should be noted that, from the working conditions and the sound of each part when working, please check whether the connection of each part is normal, do not allow any loosening. If there are unusual circumstances, it must be stopped and excluded immediately. - Page 13 adjustment, and the engine power is degraded. In addition, increased fuel consumption, various parts of the misalignment and increased failure, seriously affecting the use of the machine. To reduce the above, strict and regular maintenance work is necessary to prevent these problems from occurring.
-
Page 14: Adjustment Methods
5) Store the machine in a well-ventilated, dry and safe place. 6) Properly store tools, product certification, and user's manual. Table of technical maintenance of the machine Every years after Maintenance Newspaper month/20h month/150h year/1000h 2000h Check and tighten nuts and bolts check oil Cleaning and oil... -
Page 15: Troubleshooting
and deceleration performance. The throttle cable and cable connector must be firmly connected by screws. The handlebar adjustment method According to your height and other special requirements, you can adjust the up-down, left-right positions of the handlebar as follows Left-right, up-down handlebar adjustment: o Pull down the adjustment lever from top to bottom in the picture below to adjust the height of the handlebar. - Page 16 a) Check if the strap is longer: use your hand to apply slight vertical pressure to the center of the strap, strap clearance 20mm If yes, you need to adjust the clutch ≥ cable tension. b) If there is a gap between the brake pad and the drive wheel (clutch on and off), if the gap is large, it needs to be adjusted.
-
Page 17: Exploded View
10. Exploded view DM600... -
Page 21: Declaration Of Conformity (Ce)
In the event that the machine is modified and this modification is not approved by the manufacturer and communicated to the distributor, this declaration will lose its value and validity. HAMMERS Machine name: BRUSHCUTTER Model: DM600 Recognized and approved standard to which it conforms: EC Directive: 2014/30/EU Tested according to: INISO14982:2009...
