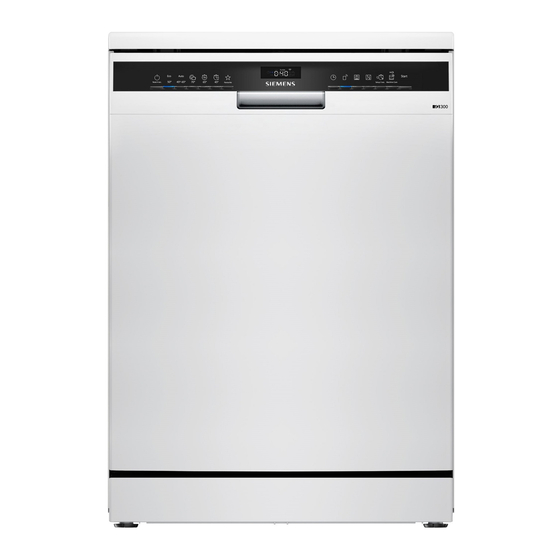

- Page 1 SN23EW03ME Dishwasher EN Information for Use Register your appliance on My Siemens and discover exclusive services and offers. Siemens Home Appliances...
-
Page 2: Table Of Contents
Further information and explanations are available online: Table of contents 1 Safety ........... 4 8 Features........ 22 1.1 General information.... 4 8.1 Top basket....... 23 1.2 Intended use...... 4 8.2 Etagere ........ 23 1.3 Restriction on user group.. 4 8.3 Bottom basket ...... 24 1.4 Safe installation ...... - Page 3 20 Customer Service.... 51 13.2 Arrange tableware .... 32 20.1 Product number (E-Nr.), 13.3 Removing tableware.... 34 production number (FD) 14 Basic operation ....... 34 and consecutive numbering (Z-Nr.) ........ 52 14.1 Switching on the appliance ... 34 20.2 AQUA-STOP guarantee .. 52 14.2 Setting a programme ....
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe ¡ for future reference or for the next owner. Do not connect the appliance if it has been damaged in transit. ¡... - Page 5 Safety en WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. Connect and operate the appliance only in accordance with the ▶ specifications on the rating plate. Always use the supplied power cable for the new appliance. ▶ Connect the appliance to a power supply with alternating cur- ▶...
-
Page 6: Safe Use
en Safety Contact between the appliance and installation lines may lead to a defect in these lines, e.g. gas pipes and power lines. Gas from a corroded gas pipe can ignite. A damaged power line can cause a short circuit. Check that there is a distance of at least 5 cm between the ap- ▶... -
Page 7: Damaged Appliance
Safety en Do not sit or stand on the appliance door when open. ▶ Knives and utensils with sharp points can cause injuries. Arrange knives and utensils with sharp points in the cutlery bas- ▶ ket with the points downwards, on the knife shelf or in the cut- lery drawer. -
Page 8: Risk To Children
en Safety If the appliance or the power cord is damaged, immediately un- ▶ plug the power cord or switch off the fuse in the fuse box and turn off the water tap. Call customer services. → Page 51 ▶ Improper repairs are dangerous. Repairs to the appliance should only be carried out by trained ▶... - Page 9 Safety en WARNING ‒ Risk of crushing! With higher-level appliances, children can become crushed between the appliance door and cabinet doors underneath. Keep an eye on children when opening and closing the appli- ▶ ance door. WARNING ‒ Risk of chemical burns! Rinse aid and detergent may cause chemical burns to the mouth, throat and eyes.
-
Page 10: Preventing Material Damage
en Preventing material damage Modified or damaged water hoses Preventing material damage 2 Preventing material may result in material damage and damage to the appliance. damage Never kink, crush, modify or cut ▶ through water hoses. Preventing material damage 2.1 Safe installation Only use the water hoses supplied ▶... -
Page 11: Environmental Protection And Saving Energy
Environmental protection and saving energy en So as not to scratch the finish on 3.3 autoOpen Dry ▶ the appliance, do not use sponges The appliance door opens automatic- with a rough surface or abrasive ally during the drying phase. This en- cleaning agents. -
Page 12: Installing And Connecting The Appliance
en Installation and connection marks on the appliance. These 4.3 Drainage connection marks will disappear after the first Connect your appliance to drainage wash cycle. connection so dirty water is dis- The delivery consists of the following: charged via the wash cycle. Dishwasher ¡... -
Page 13: Electrical Connection
Installation and connection en 4.5 Electrical connection Connecting the appliance to the electricity supply Notes Follow the Safety instructions ¡ → Page 4. Please note that the water safety ¡ system is only functional if there is a power supply. Insert the non-heating appliance plug of the power cable into the appliance. -
Page 14: Familiarising Yourself With Your Appliance
en Familiarising yourself with your appliance Familiarising yourself with your appliance 5 Familiarising yourself with your appliance Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. Rating plate Rating plate with E number and FD num- ber → Page 52. - Page 15 Familiarising yourself with your appliance en Detergent dispenser Add detergent to the detergent dispenser. → "Detergent", Page 29 Bottom basket Bottom basket → Page 24 Dispenser for special salt Add special salt to the dispenser for spe- cial salt. → "Water softening system", Page 25 Lower spray arm The lower spray arm washes the table- ware in the bottom basket.
-
Page 16: Controls
en Familiarising yourself with your appliance 5.2 Controls You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. With some buttons you can perform different functions. 3 4 5 6 ON/OFF button and reset Switching on the appliance button... -
Page 17: Programmes
Familiarising yourself with your appliance en Programme buttons and addi- Programmes tional functions → "Programmes", Page 19 Additional functions → "Additional functions", Page 22 Start button Starting the programme → Page 35 button If you press for approx. 3 seconds, you can open the basic set- tings. → "Changing basic settings", Page 38 Remote Start... - Page 18 en Familiarising yourself with your appliance Symbol Description If you have started a pro- gramme, the symbol lights up on the display. If you have activated the button lock, the symbol lights up on the display. → "Activating button lock", Page 35 If the water inflow or drainage malfunctions, the symbol lights up or flashes on the display.
- Page 19 Programmes en Programmes 6 Programmes You can find an overview of the pro- ted. The running time will change if Programmes grammes that can be selected here. the rinse aid system is switched off Different programmes, which can be or rinse aid needs to be added. found on the control panel of your The consumption values can be appliance, are available depending...
-
Page 20: Information For Test Institutes
en Programmes Programme Programme se- quence Tableware: Time-optimised: Delicate tableware, cutlery, tem- Cleaning 45 °C ¡ ¡ Speed 45° perature-sensitive plastics and Intermediate rinse ¡ glasses Final rinse 55 °C ¡ Level of soiling: Lightly adhering fresh food rem- ¡ nants Use only if appliance is unloaded. Machine Care 70 °C Machine Care → "Favourite ", Page 20... - Page 21 Programmes en Tip: To reset the programme to the pre-rinse programme stored at the factory, use the Home Connect app or reset your appliance to the factory settings. Depending on the appliance specifications...
-
Page 22: Features
en Additional functions Additional functions 7 Additional functions You can find an overview of the additional functions that can be selected here. Additional functions Different additional functions, which can be found on the control panel of your appliance, are available depending on the appliance configuration. You can se- lect certain additional functions depending on the programme. -
Page 23: Top Basket
Features en Raise or lower the basket evenly to 8.1 Top basket the right level. Arrange cups, glasses and small items of tableware in the top basket. Check that the basket is level on both sides. Release the levers. You can adjust the height of the top The basket clicks into position. -
Page 24: Bottom Basket
en Features 8.3 Bottom basket 8.4 Folding prongs Arrange pans and plates in the bot- Use the folding prongs to position tom basket. tableware securely, e.g. plates. Large plates up to a diameter of You can fold the prongs down to po- 31 cm can be arranged in the bottom sition pans, bowls and glasses basket as shown. -
Page 25: Cutlery Drawer
Before using for the first time en Add special salt. → Page 26 8.5 Cutlery drawer Add rinse aid. → Page 28 Arrange cutlery in the cutlery drawer. Switch on the appliance. → Page 34 Setting the water softening system. → Page 26 Set the amount of rinse aid to be dispensed. -
Page 26: Setting The Water Softening System
en Water softening system Water hardness Hardness range mmol/l Setting value °E 0 - 8 Soft 0 - 1.1 9 - 10 Soft 1.2 - 1.4 11 - 12 Medium 1.5 - 1.8 13 - 15 Medium 1.9 - 2.1 16 - 20 Medium 2.2 - 2.9 21 - 26... -
Page 27: Switching Off The Water Softening System
Water softening system en Note: Only use special salt for The water hardness is 0 - 8 °E. ¡ dishwashers. You do not need to use special Do not use salt tablets. salt. Do not use table salt. Press . Add the special salt to the dis- To open the basic settings, press penser. -
Page 28: Rinse Aid System
en Rinse aid system Add rinse aid up to the max mark. Additional power consump- 0.05 tion in kWh The consumption values specified are laboratory measurements determ- ined in accordance with the currently applicable standard using the Eco 50° programme and with the factory value of the water hardness set to 16 - 20 °E. -
Page 29: Switching The Rinse Aid System Off
Detergent en To save the settings, press starch and remove protein. Oxygen- for 3 seconds. based bleaching agents are generally used to remove coloured marks, e.g. tea or ketchup. 11.3 Switching the rinse aid system off Note: Follow the manufacturer's in- structions for each detergent. If you find the rinse aid refill indicator Tip: Suitable detergents are available irritating, e.g. -
Page 30: Unsuitable Detergents
en Detergent With powder and liquid detergent the 12.3 Information on deter- dosage can be individually adjusted gents to the level of soiling of the table- ware. Follow the instructions on detergents For better washing and drying results in everyday use. and to avoid damage to the appli- Detergents marked as "organic"... - Page 31 Tableware en Add the detergent to the dry deter- Close the lid of the detergent dis- gent dispenser. penser. 50 ml 25 ml 15 ml If you are using tablets, one is The lid clicks into position. enough. Insert the tablets in a hori- The detergent dispenser will open zontal position.
-
Page 32: Tableware
en Tableware 13.1 Damage to glass and Cause Recommenda- tion tableware Highly caustic al- If you are using Only put glasses and china in the kaline or highly highly caustic al- dishwasher if it is marked as dish- acidic cleaning kaline or highly washer-safe by the manufacturer. - Page 33 Tableware en allowing steam to escape and water To save resources, do not pre- to leak out around the door. This rinse tableware under running wa- could damage your kitchen units. ter. Observe the following when arran- ging tableware: – Put heavily soiled tableware in the bottom basket, e.g.
-
Page 34: Removing Tableware
en Basic operation 13.3 Removing tableware 14.2 Setting a programme To adjust the washing programme to WARNING the soiling level of the tableware, se- Risk of injury! lect a suitable programme. Hot tableware can cause burns to the Requirement: The appliance door is skin. When hot, tableware is sensitive closed. -
Page 35: Starting The Programme
Basic operation en 14.5 Starting the programme 14.8 Interrupting programme Press Note: When you open the appliance ▶ door once the appliance has heated The programme has ended when up, leave the door slightly ajar for a the display shows "0h:00m". few minutes and then close it. This Notes will help prevent excess pressure If you want to add more tableware... -
Page 36: Basic Settings
en Basic settings Basic settings 15 Basic settings You can configure the basic settings for your appliance to meet your needs. Basic settings 15.1 Overview of the basic settings The basic settings depend on the features of your appliance. Basic setting Display text Selection Description Water hardness H00 - H07... - Page 37 Basic settings en Basic setting Display text Selection Description autoOpen Dry o00 - o02 Activate or deactivate auto- matic opening of the appli- ance door during the drying phase. If the function has been ac- tivated, the running time may increase. The following settings are possible: With the setting "o00"...
-
Page 38: Changing Basic Settings
en Home Connect Basic setting Display text Selection Description Remote Start rc0 - rc2 Activate or deactivate → "Remote Start ", Page 39. The following settings are possible: With the setting "rc0", the ¡ function is permanently deactivated. With the setting "rc1", the ¡ function can be selected via the button. -
Page 39: Setting Up The Home Connect App
Home Connect en Home Connect services in your coun- Open the Home Connect app and try. You can find information about scan the following QR code. this at: www.home-connect.com. To be able to use Home Connect, you must first set up the connection to the WLAN home network (Wi-Fi and to the Home Connect app. -
Page 40: Data Protection
en Cleaning and servicing 16.4 Data protection Cleaning and servicing 17 Cleaning and servi- Please see the information on data cing protection. The first time your appliance is To keep your appliance working effi- Cleaning and servicing registered on a home network ciently for a long time, it is important connected to the Internet, your to clean and maintain it carefully. -
Page 41: Machine Care
Dishwasher Care and Ma- ance to malfunction. To avoid such chine Cleaner for Dishwashers online faults and reduce odours, we recom- at https://www.siemens-home.bsh- mend cleaning your appliance at reg- group.com/store or from customer ular intervals. service. -
Page 42: Filter System
en Cleaning and servicing Follow the safety instructions given ¡ Cleaning filters on the packagings of the machine Soiling in the dishwashing water may care products and machine clean- block the filters. ers. After each wash check the filters Remove any coarse soiling in the for residue. -
Page 43: Cleaning Spray Arms
Cleaning and servicing en Press the locking catches 17.6 Cleaning spray arms gether and lift the coarse filter out Limescale and soiling in the dish- . washing water may block the nozzles and bearings on the spray arms. Clean the spray arms regularly. Unscrew the upper spray arm and pull down to remove ... -
Page 44: Troubleshooting
This will avoid unneces- sary costs. Tip: You can find further information and explanations on troubleshooting on- line by scanning the QR code in the table of contents and on our website siemens-home.bsh-group.com. WARNING Risk of electric shock! Incorrect repairs are dangerous. - Page 45 Troubleshooting en Fault Cause and troubleshooting E:32-00 will light up Water tap is jammed or furred up. alternately or indicator Turn on the water tap. ▶ for water supply lights The flow rate must be at least 10 l/min when the water supply is open.
- Page 46 en Troubleshooting Fault Cause and troubleshooting E:61-03 will light up Not an appliance fault. Siphon connection is still alternately. Water is closed or the wastewater hose is kinked or blocked. not drained. Check the connection to the siphon and open if ne- cessary.
- Page 47 Troubleshooting en Fault Cause and troubleshooting All LEDs lit up or Electronics have detected a fault. flashing. Press the main switch button for approx. 4 seconds. The appliance is reset and restarted. If the problem occurs again: Switch off the appliance. ‒ Pull out the mains plug or switch off the fuse in ‒...
- Page 48 en Troubleshooting Fault Cause and troubleshooting Remnants of food on tableware. Filters are inserted incorrectly and/or not engaged. Insert the filters properly. → "Filter system", Page 42 Engage the filters. Washing programme selected too weak. Select a more intensive washing programme. ▶ → "Programmes", Page 19 Tableware has been precleaned too intensely.
- Page 49 Troubleshooting en Fault Cause and troubleshooting Removable streaks Do not place tableware or fragrance dispensers in are present on the tablet collecting tray. glasses, glassware Tableware has been precleaned too intensely. The with a metallic appear- sensors chose a weaker programme. Stubborn soiling ance and cutlery.
-
Page 50: Clean Wastewater Pump
en Transportation, storage and disposal Insert the pump cover and press 18.1 Clean wastewater pump down . Large remnants of food or foreign bodies can block the waste water pump. As soon as the rinsing water no longer drains properly, the waste water pump must be cleaned. -
Page 51: Protect Appliance From Frost
Customer Service en 19.2 Protect appliance from 19.4 Disposing of old appli- frost ance If there is a risk of frost where the ap- Valuable raw materials can be re- pliance will be standing, e.g. in a holi- used by recycling. day home, empty the appliance com- pletely. -
Page 52: Product Number (E-Nr.), Production Number (Fd) And Consecutive Numbering (Z-Nr.)
en Customer Service Customer Service for a period of at 20.2 AQUA-STOP guarantee least 10 years from the date on In addition to warranty claims against which your appliance was placed on the seller under the purchase agree- the market within the European Eco- ment and in addition to our manufac- nomic Area. -
Page 53: Technical Specifications
Technical specifications en Technical specifications 21 Technical specifications Technical specifications Weight Max.: 60 kg Voltage 220 - 240 V, 50 Hz or 60 Hz Power rating 2000 - 2400 W Fuse 10 - 16 A Water pressure min. 50 kPa (0.5 bar) ¡ max. 1000 kPa (10 bar) ¡ Inlet rate Min. 10 l/min Water temperature Cold water. -
Page 54: Statement Of Compliance For Great Britain
Conformity essential requirements and other rel- A detailed Declaration of Conformity evant provisions of Directive can be found online at siemens- 2014/53/EU. home.bsh-group.com/uk/ among the A detailed RED Declaration of Con- additional documents on the product formity can be found online at page for your appliance. - Page 55 Declaration of Conformity en The manufacturer, BSH Hausgeräte GmbH deems that it has complied with provision 5.1-1 of ETSI EN 303 ¡ 645 v2.1.1 and, where relevant, provision 5.1-2 of ETSI EN 303 645 v2.1.1; provision 5.2-1 of ETSI EN 303 ¡...
- Page 56 EN Manufactured by BSH Hausgeräte GmbH under the trademark licence of Siemens AG Valid within Great Britain: Imported to Great Britain by BSH Home Appliances Ltd. Grand Union House Old Wolverton Road Wolverton, Milton Keynes MK12 5PT United Kingdom BSH Hausgeräte GmbH Carl-Wery-Straße 34...
