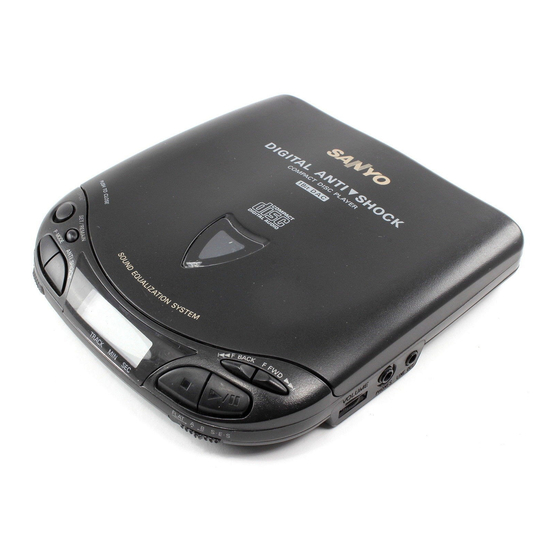

Sanyo CDP-355 Service Manual

SANYO
FILE NO.
Service Manual Portable Compact CDP-355 (xe)
Disc Player CDP-455 (uk)
ees i y PRODUCT CODE No.
Specifications
142 629 01 (CDP-355)
142 634 02 (CDP-455)
( CD Player Section ) ( General )
Frequency Responce .. 20 - 20,000 Hz Maximum Output
Wow & Flutter ....... Below measurable (Stereo headphone) ... 10 mW + 10 mW
limits Power Supply
Sampling Frequency .. 44.1 kHz AC Adaptor ......... AC : 230 V, 50 Hz
D/A Converter ....... 1-bit DW Kasha eerG id aur 3 V: Using two " R6 or HP7 " batteries
Error Correction Method CIRC 3 V : Using the rechargeable nickel-cadmium
PICKUP ke Optical 3-beam battery (NBP-50 or NBP-50A)
Semi-conductor laser 12V : Using the cigarette
(790 nm wavelength) lighter adaptor
Laser output ......... Continuous wave Dimensions ......... Approx. 128.5 (W) x 28(H)x 142(D)mm
max. 0.5 mW WGIGNE ansaeinacawes Approx. 238 g (Without batteries,
Specifications subject to change without notice. main unit only)
REFERENCE No. SM580684
