FUSION RTR - MOTOR/ESC GUIDE
Setting ESC Parameters

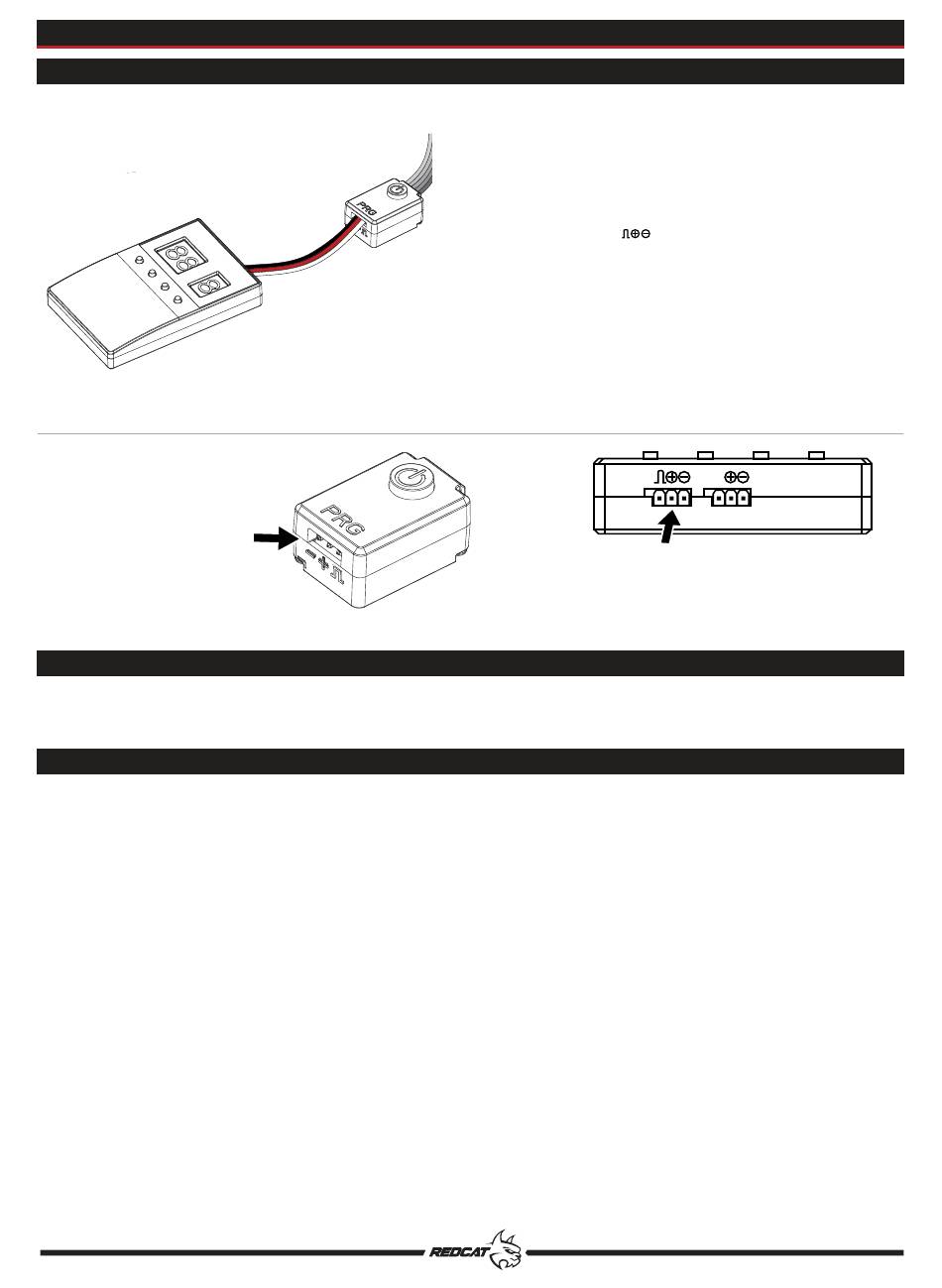

To set the ESC parameters, use the LED program box. Connect the program box as shown below.
Remove the rubber dust
plug from the "PRG" port
on the ESC switch.
Plug one end of the
program cable into the
switch, being sure the black
wire is plugged into the (-)
side of the "PRG" port.
Factory Reset
Using the LED program box to restore factory settings.
After connecting the program box and the ESC, press the "RESET" button and then press the "OK" button.
Automatic Motor Pairing
If the motor has been subjected to severe impact or has abnormal heating or power output during operation,
do the following automatic motor pairing sequence below.
1. Disconnect the ESC from CH2 of the receiver and remove the motor's pinion gear.
2. Connect the battery, press and hold the ESC's ON/OFF button. The button will flash red first, then after 8
seconds flash green indicating the ESC is ready to start the automatic motor pairing process.
3. Release the ON/OFF button and the motor will automatically start rotating. Wait for the motor to stop rotating.
The red light will flash, indicating that the automatic motor pairing process has been completed.
4. Power off the ESC and disconnect the battery.
5. Reconnect the ESC to CH2 of the receiver and reinstall the motor pinion gear to resume normal operation of
the vehicle.
Note: Be sure to remove the motor gear before this operation, otherwise it may lead to incorrect pairing.
ON/OFF Switch
Interface cable
LED program box
Using the LED program box to set ESC parameters.
With the ESC powered off, connect the 3-pin setting
interface cable into the ESC's ON/OFF switch (PRG).
Connect the other end of the cable into the program box,
using the slot marked (
Power on the ESC.
After a few seconds, all ESC parameters can be displayed
on the program box.
Use the "ITEM" button to select the item you wish to
change and the "VALUE" button to select the option
number of the value you wish to set. (See chart)
Press "OK" to save the new parameters to the ESC.
Use this port, on the program box to plug
in the other end of the program cable. Be
sure the black wire is plugged into the (-)
side of the port.
TM
9
).
