MCharger Easy C 11 kW & 22 kW

Installation and operating manual

Table of Contents

Need help?

Do you have a question about the MCharger Easy C and is the answer not in the manual?

Questions and answers

Summary of Contents for MRS MCharger Easy C

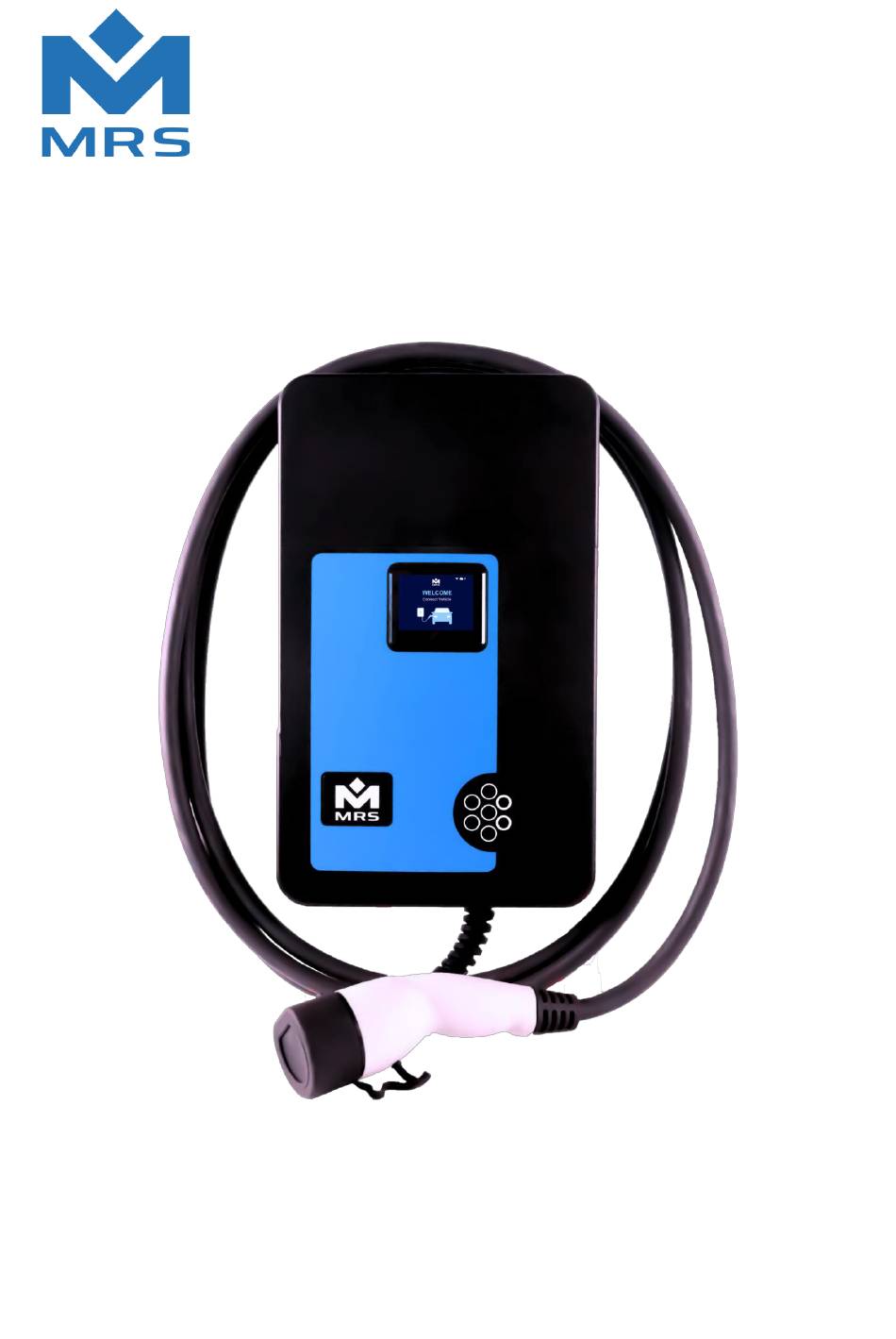

Page 1 MCharger Easy C 11 kW & 22 kW Installation and operating manual...
Page 2 About this manual The installation and operating manual is intended for the electrician who carries out the installation as well as for the persons who are to operate the product. Read the manual in full before starting to use the product. Save the manual after reading for future reference.
Page 3: Table Of Contents
Table of contents Introduction ............................4 Safety..............................4 General safety instructions ......................4 Qualification of personnel for installation and maintenance ............4 User's qualification ........................... 5 Intended use ............................5 Service..............................6 Nameplate .............................. 6 Scope of delivery ..........................7 Installation ..............................
Page 4: Introduction
Introduction Thank you for choosing our product! We have developed the MCharger together with the company Plastimat with the utmost care and we are of course also available to you after the purchase if you have any questions or problems. This manual contains all the necessary information for the installation and operation of the wallbox.
Page 5: User's Qualification
User's qualification Only adults are allowed to use this wallbox. They must familiarize themselves with the operation beforehand by studying these instructions. DANGER! Opening the housing is only permitted when the wallbox is in a voltage-free state and no vehicle is connected to it. The top cover may only be opened by an electrician as the it protects the user from access to high electrical voltages! DANGER! If the wallbox is visibly damaged or has fallen, it must not be used.
Page 6: Service
Important usage notice If the charging cable is not coiled up and lies loosely on the floor, there is a risk of tripping. When winding, be careful not to pull the cable and wind it up too tight. Repeated pulling or winding up too tightly can lead to cable breaks.
Page 7: Scope Of Delivery
Scope of delivery The wallbox is delivered in a custom-fit box. When unpacking, please make sure that you remove all parts from the box. If something is unexpectedly missing, please contact the supplier from whom you bought the wallbox immediately. NOTE: Check all parts for damage before the assembly.
Page 8: Installation
Installation Installation site requirements Please check if the installation location: • is freely accessible and the wallbox display is easy to read even in incident light; • offers the intended installation height of 0.5-1.5 m, measured from the lower edge of the wallbox; •...
Page 9: Installation Of The Wallbox
Installation of the wallbox WARNING! Only suitably qualified specialist personnel (electrician) may install the wallbox. The following steps show where special attention should be paid to when mounting on the wall. All length measures are shown in millimetres. If the wallbox is not attached to a wall, please follow the instructions in the installation manual of the accessory.
Page 10 An additional cable of CAN interface can be inserted through the middle opening. Break out the opening with the screwdriver and hammer, then deburr the area with a knife. WARNING! Risk of injury due to sharp cutting edges when breaking out the openings. Use the small black rubber grommet for sealing.
Page 11 Cable from the top Break out the opening on the top of the housing with the pliers and deburr it with a knife. WARNING! Risk of injury due to sharp cutting edges when breaking out the openings. Use the free space to lay a drip loop. Use one of the two gray rubber grommets to seal the opening for the cable entry.
Page 12 Cable from the rear Break out the opening on the back of the housing with a screwdriver and a hammer and then deburr it with a knife. WARNING! Risk of injury due to sharp cutting edges when breaking out the openings. Use one of the two gray rubber grommets to seal the opening for the cable entry.
Page 13 Mounting the installation rail After entering the cable, use the appropriate marking (small triangle) on the installation rail for the orientation. WARNING! Only upright installation of the wallbox is permitted, so the installation rail must be aligned horizontally. For the installation from the bottom, use the left-side mark on the installation rail.
Page 15 For the installation from the rear, use the right-side mark on the installation rail. Draw the right mark. Mark the holes for the installation rail. Use a spirit level! Copyright © 2022 Page 15...
Page 16 Use the supplied cylinder head screws and dowels. Use a maximum screw diameter of 6 Drill the appropriate holes for the installation rail with a distance of 90 mm. Use an 8 mm diameter drill bit. Attach the installation rail to the wall with dowels and screws.
Page 18 Use the supplied flathead screws and dowels. Use a maximum screw diameter of 6 Remove the wallbox from the installation rail again. Drill the marked holes. Use an 8 mm diameter drill bit. Mount the dowels. Copyright © 2022 Page 18...
Page 19 Insert the connection cable into the wallbox and use the appropriate grey rubber grommet. Please note that if the rubber grommets are not used, IP protection cannot be guaranteed. Put the wallbox on the installation rail. Secure the wallbox with two screws. Copyright ©...
Page 20: Connecting The Power Cable
Use the strain relief (small/large) for the installation type "from the bottom" or "from the top" of the connection cable. Select the size based on the cable diameter. Connecting the power cable WARNING! The installation may only be carried out by a qualified electrician. WARNING! Make sure again that the connection cable is disconnected from the mains.
Page 21 NOTE: The electrician is responsible for dimensioning the cables according to the building conditions. DANGER! Voltage! The connection is only to be carried out in a voltage-free state and without a vehicle connected as well as by a qualified electrician. 5 connection terminals are provided for connecting the power cable.
Page 22: Mounting The Top Cover
The maximum cross-section per wire and terminal is as follows: Single-wire conductor 10 mm / 8 AWG Fine wire conductor 10 mm / 8 AWG Fine wire conductor with wire end sleeve with plastic collar 6 mm If the wallbox is connected with one phase, please always occupy L1 and leave L2 and L3 free.
Page 23: Operating Instructions
Operating instructions General The wallbox is equipped with a pre-assembled charging cable with a type 2 plug according to the EN 62196-2 standard. Before using the wallbox, the suitability of the vehicle for charging with it must be checked. Park the electric vehicle in such a way that you can easily reach the charging connection on the vehicle with the charging plug of the charging cable.
Page 24: Vehicle Connected
Vehicle connected As soon as a vehicle is connected to the wallbox, the display changes. Now the charging process can be started if this has not already happened automatically. If the charging process is automatically started by the vehicle, this display is only visible for a short time before it switches to the next display mode.
Page 25: End Of Charging
charging process is resumed. At the end of the charging process, only the entire charging time is displayed. If the cable is unplugged from the car, the time counter is reset. In the middle there is the power indicator. When the charging process starts, the value will increase until the current charging power is displayed.
Page 26: Maintenance, Troubleshooting And Decommissioning
Maintenance, troubleshooting and decommissioning Maintenance The wallbox is maintenance-free. Cleaning Clean the wallbox with a slightly damp cloth. Please do not use abrasive cleaning agents that can damage the surface and the display. NOTE! Do not use a pressure washer or steam jet for cleaning the wallbox. Check at regular intervals the function of the residual current circuit breaker, provided on the building side.
Page 27 0010 Temperature error The temperature is outside of the wallbox manufacturer's specification. Check the requirements from the chapter "Installation site requirements" and the temperature range on the nameplate. Let the wallbox cool down and start the charging again. If the error persists, refer to the operating instructions of your vehicle and contact your supplier of the wallbox or the vehicle brand dealership.
Page 28: Decommissioning
Decommissioning Decommissioning of the wallbox is necessary if one of the below happens: • serious malfunctions; • visible damage; • dismantling. DANGER! The decommissioning may only be carried out by a qualified electrician. For this purpose, the wallbox must be disconnected from the mains, the corresponding supply line in the building fuse box must be switched off via the circuit breaker and the residual current circuit breaker and secured against being switched on again.
Page 29: Ce Marking And Declaration Of Conformity
CE marking and declaration of conformity MRS Electronic GmbH & Co. KG Hersteller Klaus-Gutsch-Straße 7 Manufacturer D-78628 Rottweil Germany Die alleinige Verantwortung für die Ausstellung dieser Konformitätserklärung trägt der Hersteller. This declaration of conformity is issued under the sole responsibility of the manufacturer.
Page 30: Technical Data (11 Kw / 22 Kw)
Technical data (11 kW / 22 kW) Functions ✓ Charging functionality up to 11 / 22 kW (1-3 ph) ✓ Easy installation ✓ Tethered cable with type 2 connector, 5 m ✓ Status display showing duration, kW and kWh ✓ Acoustic warning buzzer ✓...
Page 32: Copyright
Contacts / SERVICE Do you need any help? Please contact our support team: Mon - Fr: 09:00 - 15:00 (CET) Phone: +49 741 2807 1020 Email: emobility@mrs-electronic.com Website: www.mrs-electronic.com 503551 – V.0.2 Copyright © 2022...
