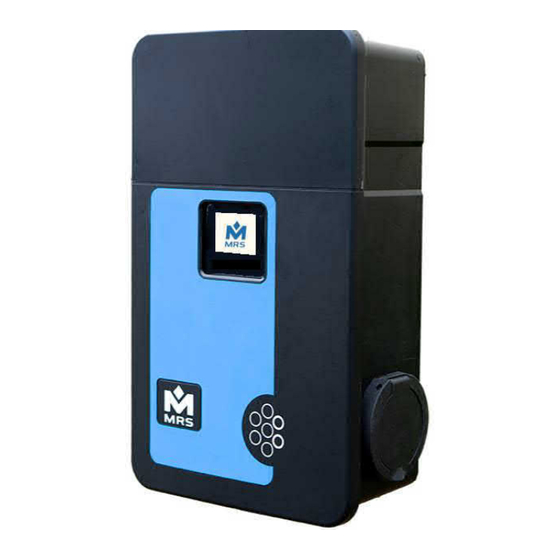

MCharger Easy S 11 kW & 22 kW

Installation and operating manual

Table of Contents

Need help?

Do you have a question about the MCharger Easy S and is the answer not in the manual?

Questions and answers

Summary of Contents for MRS MCharger Easy S

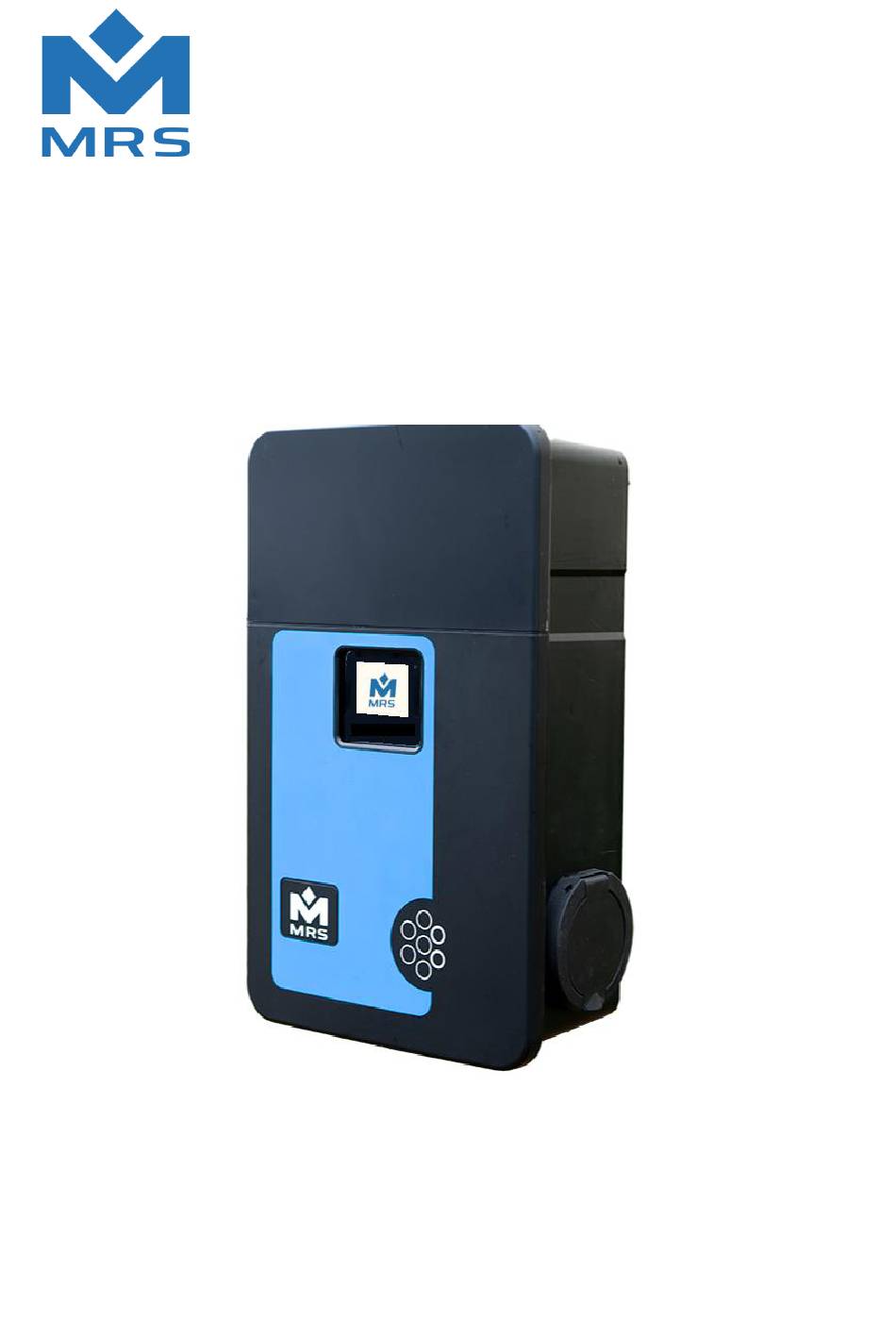

Page 1 MCharger Easy S 11 kW & 22 kW Installation and operating manual...
Page 2 About this manual The installation and operating manual is intended for the electrician who carries out the installation as well as for the persons who are to operate the product. Read the manual in full before starting to use the product. Save the manual after reading for future reference.
Page 3: Table Of Contents
Table of contents Introduction ........................... 4 Safety ............................ 4 General safety instructions ....................4 Qualification of personnel for installation and maintenance ..........4 User's qualification ......................5 Intended use ........................5 Service ..........................6 Nameplate ..........................6 Scope of delivery ........................7 Installation ..........................
Page 4: Introduction
Introduction Thank you for choosing our product! We have developed the MCharger together with the company Plastimat with the utmost care and we are of course also available to you after the purchase if you have any questions or problems. This manual contains all the necessary information for the installation and operation of the wallbox.
Page 5: User's Qualification
User's qualification Only adults are allowed to use this wallbox. They must familiarize themselves with the operation beforehand by studying these instructions. DANGER! The covers may only be opened by an electrician as the covers protect the user from access to high electrical voltages! DANGER! If the wallbox is visibly damaged, it must not be used.
Page 6: Service
Service For technical service, please first contact the electrician who carried out the installation of the wallbox. Nameplate The nameplate on the bottom of the MCharger wallbox shows all relevant data. Here you will find e.g., type designation, serial number, date of manufacture (month/year), as well as the operating parameters of the charging station.
Page 7: Scope Of Delivery
Scope of delivery The wallbox is delivered in a custom-fit box. When unpacking, please make sure that you remove all parts from the box. If something is unexpectedly missing, please contact the supplier from whom you bought the wallbox immediately. NOTE: Check all parts for damage before the assembly.
Page 8: Installation
Installation Installation site requirements Please check if the installation location: • is freely accessible and the wallbox display is easy to read even in incident light; • provides a flat mounting surface; • provides a sufficient load capacity; • provides a sufficiently dimensioned mounting surface; •...
Page 9: Installation Of The Wallbox
Installation of the wallbox WARNING! Only appropriately qualified specialists (electricians) may install the wallbox. The following steps show where special attention should be paid to when mounting on the wall. All length measures are shown in millimetres. If the wallbox is not attached to a wall, please follow the instructions in the installation manual of the accessory.
Page 10 An additional cable of CAN interface can be inserted through the middle opening. Break out the opening with the screwdriver and hammer, then deburr the area with a knife. Use the small black rubber grommet for sealing. Cable from the bottom The required opening is provided in the housing.
Page 12 Cable from the rear Break out the opening on the back of the housing with a screwdriver and a hammer and then deburr it with a knife. After entering the cable, use the appropriate marking (small triangle) on the installation rail for the orientation.
Page 15 For the installation from the rear, use the right side mark on the installation rail. Draw the right mark. Mark the holes for the installation rail. Use a spirit level! Copyright © 2022 Page 15...
Page 16 Use the supplied cylinder head screws and dowels. Use a maximum screw diameter of 6 mm. Drill the appropriate holes for the installation rail with a distance of 90 mm. Use an 8 mm diameter drill bit. Attach the installation rail to the wall with dowels and screws.
Page 18 Use the supplied flathead screws and dowels. Use a maximum screw diameter of 6 mm. Remove the wallbox from the installation rail again. Drill the marked holes. Use an 8 mm diameter drill bit. Mount the dowels. Copyright © 2022 Page 18...
Page 19 Insert the connection cable into the wallbox and use the appropriate grey rubber grommet. Put the wallbox on the installation rail. Secure the wallbox with two screws. Copyright © 2022 Page 19...
Page 20: Connecting The Power Cable
Use the strain relief (small/large) for the installation type "from the bottom" or "from the top" of the connection cable. Select the size based on the cable diameter. Connecting the power cable WARNING! The installation may only be carried out by a qualified electrician. WARNING! Make sure again that the connection cable is disconnected from the mains.
Page 21 DANGER! Voltage! The connection is only to be carried out in a voltage-free state and by a qualified electrician. 5 connection terminals are provided for connecting the power cable. The corresponding assignment is printed on the circuit board (PE – N – L1 – L2 – L3). In general, the following colors are set per phase: Marking Color...
Page 22: Mounting The Top Cover
The maximum cross-section per wire and terminal is as follows: Single-wire conductor 10 mm / 8 AWG Fine wire conductor 10 mm / 8 AWG Fine wire conductor with wire end sleeve with plastic collar 6 mm If the wallbox is connected with one phase, please always occupy L1 and leave L2 and L3 free.
Page 23: Operating Instructions
After the wallbox is properly assembled and installed according to the instructions, it will start into standby mode. In this mode, the MRS logo is shown on the display and the wallbox is ready for charging. Vehicle connected As soon as a vehicle is connected to the charging station, the display changes and shows a vehicle connected to a wallbox.
Page 24: Charging
Charging As soon as the charging process starts, the vehicle and the wallbox lock the respective plug in the socket. This prevents the charging process from being interrupted prematurely by unplugging the charging cable. When the charging process ends, the charging cable is automatically released from the wallbox.
Page 25: End Of Charging
on the quality of the infrastructure and grid fluctuations, there might be deviations from the expected 230 V AC at the connection point of the wallbox. This affects the readout of the charging power. It will then not exceed the expected value of the corresponding variant (11 kW / 22 kW) but show the real measured consumption.
Page 26: Error Diagnosis
WARNING! If the connection cable, the wallbox or the charging cable show visible damage, you must not continue to use them. Please shut down the wallbox and then consult a qualified electrician. Error diagnosis If an error occurs, the wallbox signals it with a beep and a corresponding message on the display.
Page 27 Disconnect the charging cable from the vehicle. Restart the charging process. If the error persists, refer to the operating instructions of your vehicle and contact the vehicle brand dealership or your wallbox supplier. Provide the corresponding error IDs from the vehicle and the wallbox. 0080 Internal error detected Disconnect the charging cable from the vehicle and...
Page 28: Decommissioning
Decommissioning Decommissioning of the wallbox is necessary if one of the below happens: • serious malfunctions; • visible damage; • dismantling. DANGER! The decommissioning may only be carried out by a qualified electrician. For this purpose, the wallbox must be disconnected from the mains, the corresponding supply line in the building fuse box must be switched off via the circuit breaker and the residual current circuit breaker and secured against being switched on again.
Page 29: Ce Marking And Declaration Of Conformity
CE marking and declaration of conformity MRS Electronic GmbH & Co. KG Hersteller Klaus-Gutsch-Straße 7 Manufacturer D-78628 Rottweil Germany Die alleinige Verantwortung für die Ausstellung dieser Konformitätserklärung trägt der Hersteller. This declaration of conformity is issued under the sole responsibility of the manufacturer.
Page 30: Technical Data (11 Kw / 22 Kw)
Technical data (11 kW / 22 kW) Functions ✓ Charging functionality up to 11 / 22 kW (1-3 ph) ✓ Easy installation ✓ Type 2 charging socket ✓ Status display showing duration, kW and kWh ✓ Acoustic warning buzzer ✓ RCD integrated (6 mA DC failure)* ✓...
Page 32: Copyright
Contacts / SERVICE Do you need any help? Please contact our support team: Mon - Fr: 09:00 - 15:00 (CET) Phone: +49 741 2807 1020 Email: emobility@mrs-electronic.com Website: www.mrs-electronic.com 503552 – V.2.0 Copyright © 2022...
