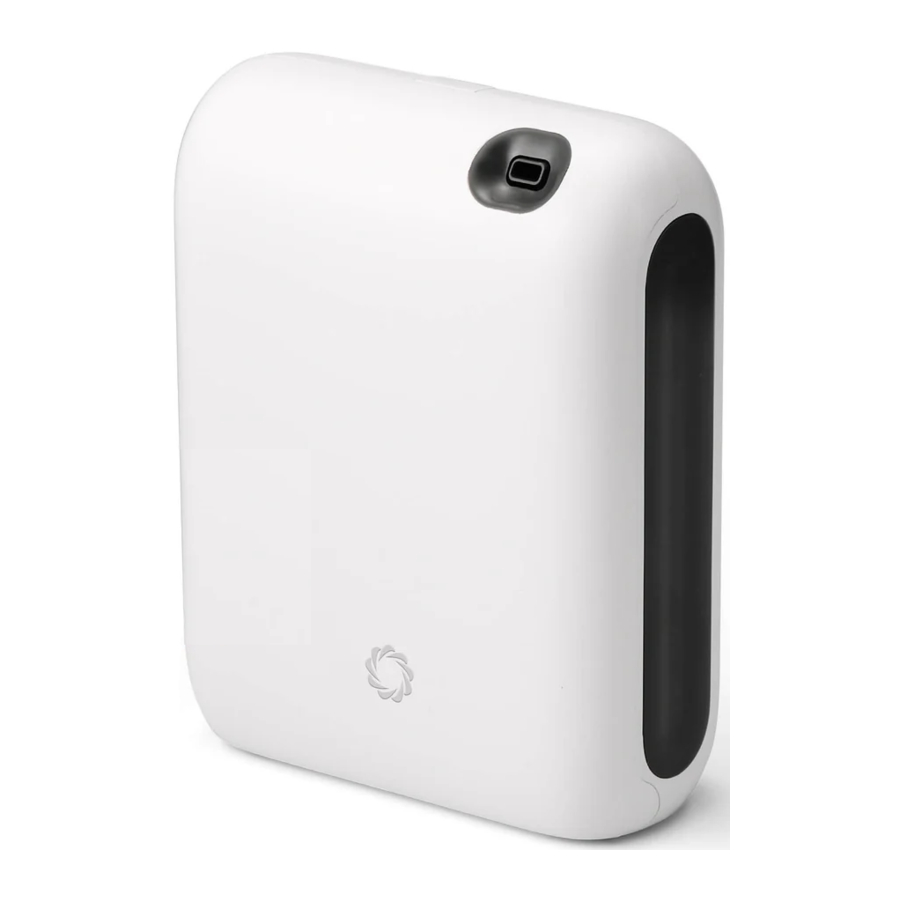

Airthereal SAM200S - SMART FRAGRANCE DIFFUSER Manual

SPECIFICATIONS

COMPONENTS

Product

1. Please keep the machine vertical. Tilting may cause oil to overflow and the long-term efficiency of the machine may be affected.

2. Do not use this product in high humidity or high-pressure environments.
3. Do not install the device in a place that cannot bear load or may fall over.
4. Do not overuse the device without pausing. The average daily use time is not to exceed 14 hours.
5. Pay attention to adding essential oil after it is used. If operated without essential oil for prolonged periods, the machine will be damaged.

OPERATION

1. Press the open button.

2. Remove the oil bottle and pour essential oil into the bottle.

3. Insert the atomizer into the machine.

4. Install three (3) D-size batteries for battery power or plug in a Type-C wire for direct power.

5. Use the control panel or the AIR.ai app to change the settings.

6. Enjoy the fragrance.


Note: Water does not need to be mixed with the essential oil.

Default mode: The diffuser will work for 10 seconds and pause for 120 seconds, then repeat.

CONTROL

APP Control

Step 1
Download the AIR.ai app from the App Store (iOS devices)

or Google Play (Android devices).

Step 2
Turn on the bluetooth function on your phone, (only connect with bluetooth).
Open AIR.ai and tap the "+" icon in the top right corner (phone should be near the machine).

It will appear an added page, click "Go to add",

Step 3
Your device is connected successfully now. You can find the SAM200S in the device list.

Mode control with the AIR.ai app

Note: the setting time can be adjusted from 5-990 seconds.

Manual Control

Attention
Please use a 5V/1A adapter

• Turn on / off: press and hold the "MODE" button for 5 seconds to turn the unit on or off.
  When turned on, the display will show an "on" icon flashing 3 times. When turned off, the display will show an "off" icon flashing 3 times.
  NOTE: The unit will auto-start on after powering on.
• Local time setting: long press and hold the "SET" button for five seconds to enter the time setting.
  Hour: press the button to adjust the hour, then press "SET" to confirm and enter the minute setting.
  Minute: press the button to adjust the minute, then press "SET" to confirm and enter the week setting.
  Week: press the button to adjust the days of the week the machine will run, then press "SET" to confirm and finish the setting.
• Work time and Scent intensity setting: press the " MODE" button to adjust these settings.
  Five working events:
  event 1:

• Work time
  Event on setting:

1. Press the "SET" button to adjust the the hour setting. Press the buttons to set the hour the unit will start running, then press "SET" to confirm and enter the minute setting.
2. Press the buttons to set the minute the unit will start running, then press "SET" to confirm and enter the day setting.
3. Press the button to select the day(s) of the week the machine will run Press the button to exit the day setting and save your settings.

   Event off setting:

   1. Press the "MODE" button to adjust the hour setting. Press the buttons to set the hour the unit will stop running, then press "SET" to confirm and enter the minute setting.
   2. Press the buttons to adjust the the unit will stop running minute. Press the button to exit the minute setting and save your settings.

• Scent intensity setting
  Scent work

  1. Press the "MODE" button to enter the scent intensity adjustment. Press the buttons to adjust how long the machine will release scent. The operating range is 5 to 30 seconds (the default is 10 seconds.)
  2. Press the "MODE" button to enter the scent intensity pause time adjustment.
     Press the buttons to adjust the length of break between scent releases.
     The operating range is 90 to 900 seconds (the default is 120 seconds.)
• Repeat above steps for event settings 2-4, as needed.
• Reset Operation:
  Press and hold the "Mode + Set" buttons for 5 seconds to reset the device to factory settings. The default factory settings are set to run from 00:00 to 23:59, the scent frequency is 10-120 seconds. The remaining four event settings are 00:00-00:00, and the scent frequency is 10-120 seconds.
• Battery power display (if using battery power)
  One cell remaining: battery power remaining 20%
  Two cells remaining: battery power remaining 40%
  Three cells remaining: battery power remaining 60%
  Four cells remaining: battery power remaining 80%
  Five cells remaining: battery power remaining 100%
  When the battery power is lower than 5%, the device will stop working.

CLEANING INSTRUCTIONS

The machine needs to be cleaned under the following circumstances:

1. You're about to change to another kind of essential oil.
2. The atomization volume goes weak.
3. Hasn't been used in a long time.

Cleaning steps:

1. Turn off the power.
2. Unscrew the lower cover and take out the oil bottle.
3. Find a larger container and fill with isopropyl alcohol. Then soak the oil bottle for 5-10 minutes.
4. Place in a well-ventilated area to air dry.

TROUBLESHOOTING

If the above methods cannot be improved, please consult the customer service hotline for assistance

SAFETY INSTRUCTIONS

IMPORTANT SAFEGUARDS: To avoid the risk of serious injury when using your

Fragrance Diffuser, basic safety precautions must be followed, including but not limited to the following.

• Do not install the device where children can reach it.
• Do not tilt the device as oil may spill.
• Do not use the device in high-temperature or wet environments.
• Keep the device away from fire and heat sources, and do not store flammable or explosive materials near the device.
• Install the device in a well-ventilated area.
• Do not use flammable, explosive, corrosive, or other hazardous solvents with the device.
• Do not block the sprayer by hand or other obstructions when the device is in use.
• Do not spill water or conductive, corrosive liquids on the device or allow such liquids to get inside of the device.
• Do not overuse the device without pausing. The average daily use time is not to exceed 14 hours.
• Choose a safe way to cut off the power in extreme weather environments.

Cancer and Reproductive Harm www.p65warnings.ca.gov

For WARRANTY information please visit:
www.airthereal.com/warranty

Always here to help you:
www.airthereal.com
