Airthereal LF200M, LF200W - AROMA DIFFUSER Manual

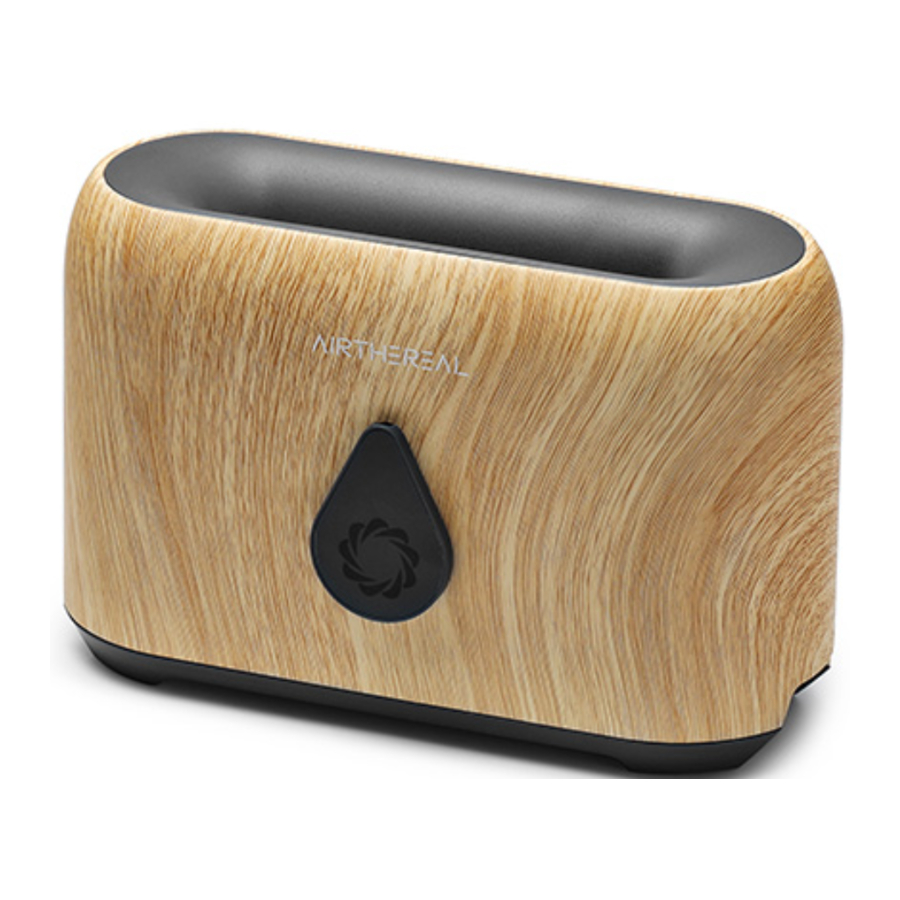

PARTS

warning Note: The accessories in the package are exclusively used for the product. The appearance and quantity may be different for different batches. Please refer to the actual delivery.

REMOTE CONTROL

Use the remote control to turn on the atomizer, and then select the desired function and effect.

Function selection

Switch	Power on/Power off
Atomization degree	High (violent flame effect) / Low (soft flame effect)
Timing	1h (red light) 3h (white light) 6h (blue light)
Light brightness	Large/medium/small/off
Lighting effect	Full light/breathing light/flashing
Night light	Light in the dark

SPECIFICATIONS

Model	LF200M / LF200W
Rated Voltage	DC 5V
Rated power	10W
Water Tank Capacity	200 ml / 6.76 oz
Atomization Amount	15 - 25 ml/hr
Est. Run Time w/ Full Tank	9 hours
Timer Setting	60 / 180 / 360 minutes
Weight	1.19 lbs
Dimensions	7.87 x 3.15 x 4.92 in

OPERATION

Remove the top cover
Add water to the max fill line. Add 2-5 drops of essential oil directly to the tank if you wish.
Place the top cover back onto the diffuser.
Insert the Type-C power cord.
Press the power button and you will hear a beep sound.
The default settings are as follows:

Atomization level: high
Timer: 3 hours
Brightness: high
Lighting effect: full bright

warning Notes:

There will be a beep each time you press a button.
When there is no water in the tank you will hear 3 beeps over 2 seconds and the diffuser will automatically power down.
When the timer is up you will hear a long beep sound before the diffuser automatically shuts down.
If the neutralizer fails for any reason, the LED will flash quickly for 2 seconds accompanied by a long beep sound before the diffuser automatically shuts down.

TROUBLESHOOTING

Symptom	Possible Causes	Approach
The power-on indicator does not light up and the diffuser cannot be started	Improper connection of the adapter	Connect the cable and press the switch
The indicator light on the switch is on, the small fan rotates, but there is no fog	The water tank is short of water or has too little water	Add purified water
The humidifier emits a peculiar smell	There is scale in the water tank, the added water has impurities, or the water has been left for too long	Remove the lid of the water tank and place it in a cool place in a cool place for more than 12 hours to ventilate, clean the water tank and refill pure water.
The power indicator light is on but the humidifier can not be started	The water in the water tank is too full	Pour out a little water and close the lid tightly
Too little fog	There is dirt on the atomizing film, or the water in the water tank is left for too long	Clean the water tank and add pure water
The diffuser is too noisy	Too little water or the diffuser is tilted	Add water to the tank, place the diffuser in a clean place on a flat surface so it is level

If the above methods cannot be improved, please consult the customer service hotline and contact a professional for repair.

SAFETY PRECAUTIONS

Please read the manual carefully before use and keep it for future reference.

Please remove the insulating sheet on the remote control before first use.
If you need to add water, safety buckle needs to be unplugged from the unit before the top cover can be opened.
The maximum water volume is 200 ml. Exceeding the max capacity line will affect the atomization effect or cause water leakage and damage to the machine.
Plug in using the supplied power cord of Type-C, 2A. If you use an alternative power cord, you must pay attention to the current specification of 2A, otherwise it will affect the atomization.
Pay attention to the selected distributor so its output current is not lower than DC 5V 2A, otherwise it will affect the atomization effect.
The diffuser has a memory function. If the power is not completely removed, the diffuser will revert to the last used settings.
After use, you must pour out the remaining water in the water tank to prevent damage to the atomizer. Do not leave water sitting in the tank for several days without use.
Note that pouring water needs to follow the instructions, otherwise it will damage the atomizer.
Please use purified or distilled water so that your atomizer will not be damaged due to impurities in the water. If you use normal tap water you may notice a white buildup of calcium or lime in the diffuser.
