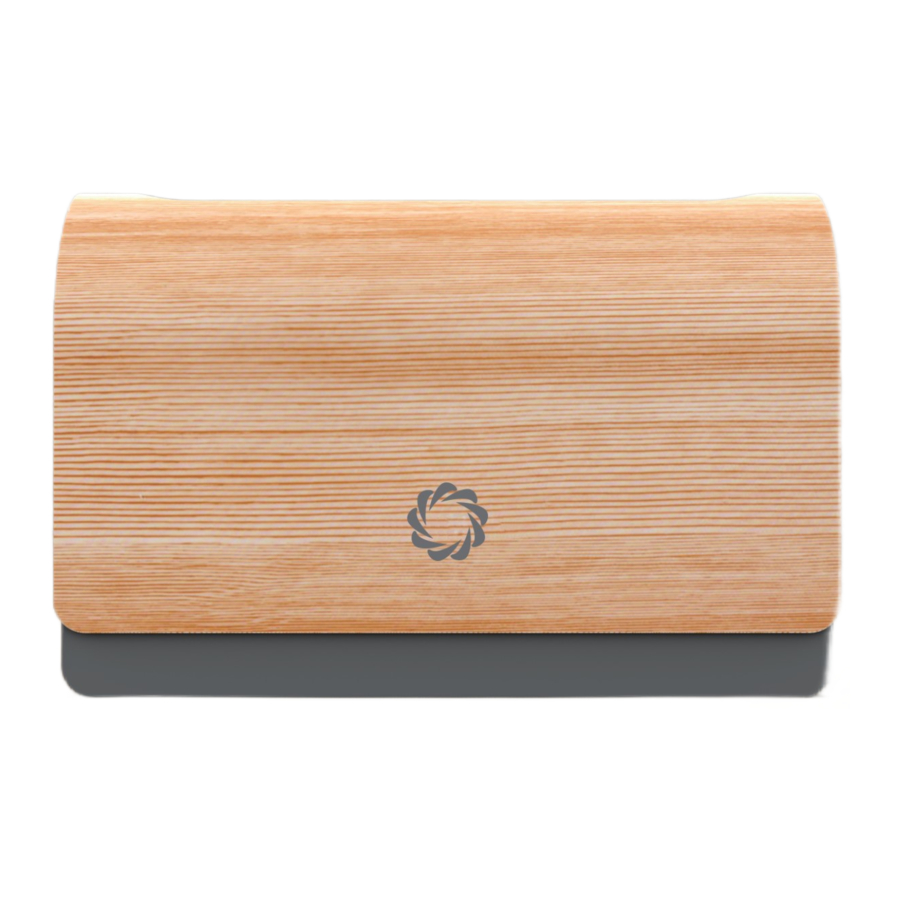

Airthereal LF500MS - AROMA DIFFUSER Manual

PARTS

warning Note: The accessories in the package are exclusively used for the product. The appearance and quantity may be different for different batches. Please contact support if you have any questions.

SPECIFICATIONS

Model	LF500MS
Rated Voltage	DC 24V
Rated Power	12W
Water Tank Capacity	500 ml / 16.9 oz
Mist Output	35 - 65 ml/hr
Timer Setting	1 - 8 hours
Weight	2.0 lbs
Dimensions	9.4 x 3.9 x 6.3 in

OPERATION

Remove the top cover.
Add water to the max fill line.
Add 2-5 drops of scented essential oil directly to the tank if needed.

warning Note:

The maximum water volume is 16.9 oz/500 ml. Exceeding the max capacity line will affect the atomization effect or cause water leakage and damage to the machine.
Please use purified or distilled water so that your atomizer will not be damaged due to impurities in the water. If you use normal tap water you may notice a white buildup of calcium or lime in the diffuser. While not harmful, these deposits may cause a white powder to form when the mist dries or inside the machine. These deposits can be cleaned with distilled white vinegar.

Place the top cover back onto the diffuser.
Insert the power adapter cord.
Press the power button and you will hear a beep sound.
The default settings are as follows:
- Atomization level: 2 (high)
- Brightness: high
- Lighting effect: full bright
Entering the Wi-Fi connection mode."
Preparation before connecting preparation:
Make sure your Wi-Fi router supports 2.4GHz (NOT 5GHz) and 802.11b/g/n bands.

warning Note: Most 5GHz routers can also be set to 2.4GHz band or dual band.

AIRIA APP

Make sure the Wi-Fi name and password are correct.
A smartphone or tablet supporting a 2.4GHz network.
Download the App named AIRIA from the App Store (iOS devices) or Google Play (Android devices).

AIRIA

Step 1
Long press the on the control panel, and the on the screen will blink quickly.
AIRIA APP - Step 1

Step 2
Connect your phone to the 2.4 GHz network your flame diffuser will use.
Open AIRIA and tap the "+" icon in the top right corner.
It will appear an added page, click "Go to add".
AIRIA APP - Step 2

Step 3
Go to the next step.
Enter the password of your Wi-Fi network when prompted (same Wi-Fi network on which your smartphone is connected) and then click confirm.
AIRIA APP - Step 3

The flame diffuser must be connected to a 2.4 GHz Wi-Fi network. If your router (internet box) broadcasts 2 Wi-Fi bands (2.4GHz and 5GHz), consult your router user manual to learn how to select the 2.4 GHz Wi-Fi band.

Step 4
Your device is now connected successfully.
You can find the diffuser in the device list.
AIRIA APP - Step 4

CONTROL

Control Panel

Function selection

Switch	Power on / Power off
Timer or start delay	Timer: 1-8 hours Start delay: 1-8 hours Insert the power cable, press the icon to set start delay To cancel the start delay timer, press the power switch
Light brightness	Low Medium High Breathing light
Lighting effect	Fire-Lemon-Yellow-Red-Green-Blue- Purple-Ice-Gradient
Mist level	Low (soft flame effect) High (violent flame effect) Sleep mode (light off with low mist level)
Low water icon	Unit automatically power off (Click power switch to cancel the low water reminder. Click again and the diffuser will restart after water fulfilling)

warning Notes:

After powering on, there will be a beep sound
There will be a beep each time you press a button.
When there is no water in the tank you will hear 2 beeps over 5 seconds and the diffuser will automatically power down. The low water icon will also illuminate
When the timer is up you will hear a long beep sound before the diffuser automatically shuts down.

Mode control with AIRIA app

CLEANING INSTRUCTIONS

Drain the water remaining in the water tank. Ensure the air outlet side is facing up during draining to avoid moisture getting inside the unit.
Do not use any benzene, paint thinner, alcohol, or other types of chemicals during cleaning. Doing so may cause damage to the machinery.
If using detergent, always use mild kitchen detergent. Chlorine, acid, and enzyme-type detergents remaining inside pose the danger of emitting noxious gasses. Distilled white vinegar is recommended for cleaning.
If you do not intend to use the product for an extended period of time, clean it and dry it thoroughly before storage.

TROUBLESHOOTING

Symptom	Possible Causes	Approach
The power-on indicator does not light up and the diffuser cannot be started	No power	Reconnect the power adapter and try again
The indicator light is on, but there is no mist produced	The water tank is short of water or has too little water, the low water icon will illuminate	Add purified water to the tank
	Too much water	Pour water lower than the max capacity line. Exceeding the max capacity line will affect the atomization effect
The humidifier emits a weird smell	There is scale in the water tank, the added water has impurities, or the water has been left in the tank for too long	Remove the lid of the water tank and place it in a cool place for more than 12 hours to ventilate. Clean the water tank with white vinegar and refill with pure water
Too little mist produced	There is dirt on the atomizing film or the water in the water tank has been left for too long	Clean the water tank and add pure water
Too little mist produced	Too much water	Pour water lower than the max capacity line. Exceeding the max capacity line will affect the atomization effect
The diffuser is too noisy	Too little water	Add water to the tank

If the above methods cannot be improved, please consult the customer service hotline for assistance

SAFETY PRECAUTIONS

When the room temperature is below 32°F / 0°C, please empty the water tank. If the water is allowed to turn to ice it can damage the components.
Please use purified or distilled water so that your atomizer will not be damaged due to impurities in the water. If you use normal tap water you may notice a white buildup of calcium or lime in the diffuser.
The maximum water volume is 16.9 oz/500 ml. Exceeding the max capacity line will affect the atomization effect or cause water leakage and damage to the machine.
Do not let water splash into the base to avoid damaging the internal parts.
After use you must pour out the remaining water in the water tank to prevent damage to the atomizer. Do not leave water sitting in the tank for several days without use.
When cleaning or adding water to the device, always remove the AC adaptor from the outlet. Do not insert or remove the AC adaptor with wet hands. Doing so may cause electric shock or injury.
Do not replace the power cord without authorization.
In case of abnormality, do not attempt to disassemble or repair the device by yourself. Doing so could cause fire, electric shock, injury, or malfunction. Please stop operation and send an email to support for help.
