DeLonghi VertuoPlus Deluxe ENV155TCA - Espresso Machine Manual

OVERVIEW

SPECIFICATIONS

ENV155

	120 Volts, 60 Hertz, 1350 Watts (USA/CA)
	~ 101 lb (~ 46 kg)
	371 fl oz* (11 l*) 338 fl oz* (17 l*) - 2nd is wrong

* Depending on the model

	If water tank on the side	If water tank at the back
	8.7 in / 220 mm* 9.1 in / 232 mm*	5.6 in / 142mm
	12.7 in / 323 mm* 13.2 in / 335 mm*	16.2 in / 412 mm* 16.7 in / 423 mm*
	12.8 in / 325 mm
	16.9 in / 429 mm

* Depending on the model

PACKAGING CONTENT

MACHINE HANDLING

WATER TANK

1. The water tank arm can be rotated and positioned at the back, to the left or to the right hand side of the machine.

2. Remove the water tank by tilting it slightly backwards, then gently pulling it up. 2 Put the water tank in position by placing it vertically onto its arm, until there is a 'click' sound.


Be careful when removing the water tank since the machine may tilt during the movement.

CAPSULE CONTAINER

1. Remove the water tank, then remove the capsule container by sliding it sideways.

2. Place the capsule container in the back of the machine by sliding it sideways into position. It is held in place by a magnet. Place the water tank back.


CUP SUPPORT

1. The cup support has 4 positions and can be temporarily removed to accommodate various cup sizes.

2. To place the cup support, slide cup support straight into the holes and gently push down until the hooks are well in place. To remove it, gently lift straight up and then pull the cup support out.


Be careful when removing the cup support since it may contain warm liquid. Make sure the cup support is properly placed before putting the cup.

POWER CABLE

1. The power cable can be adjusted under the machine. Insert the remaining cable in the guide on the left or on the right side socket, depending on the position chosen for the water tank. Ensure machine is in the upright position.


FIRST USE OR AFTER A LONG PERIOD OF NON-USE

First read the important safeguards to avoid risks of fatal electrical shock and fire.

1. Rinse and clean the water tank and lid before filling it with only fresh potable water. Place the water tank in place.

2. Ensure the capsule container and the cup support are in place. For your safety, operate the machine only with cup support and capsule container in position.

3. Plug the machine into the outlet.

4. Turn the machine "ON" by pushing the button. GREEN light will blink while the machine is heating up.

5. Steady GREEN lights will indicate the machine is ready.

6. Place a container of at least 12.5 fl oz./0.4 l under the coffee outlet.

7. Open the machine head by pressing the lever up to eject the capsule and then push the lever down to close it.

8. Push the button 3 times in 2 seconds to start cleaning and let the cleaning procedure complete automatically. ORANGE lights will blink during the operation. It will take less than 2 minutes before a flow comes out. The procedure consists of 3 cycles of pumping water in, internal cleaning and water flowing from the outlet to complete.

9. This procedure may take up to 5 minutes. The procedure can be stopped at any time by pushing the button. The button will go to steady GREEN. To restart the cleaning process, follow the instructions starting at point 8. To brew a coffee, insert a capsule, push the lever down to close the machine and push the button.


COFFEE PREPARATION

Be careful not to injure yourself on sharp points or trap your fingers when reaching inside the machine.

1. Fill the water tank with fresh potable water.

2. Turn the machine "ON" by pushing the button.

3. GREEN lights will blink while the machine is heating up.

4. Steady GREEN light indicates the machine is ready.

5. Place a cup of sufficient capacity under the coffee outlet. For Alto coffee, please remove the cup support. Risk of scalding may occur due to overflowing.

6. Open the machine head by pushing the lever up. The machine head will open automatically, with an electrical mechanism.


NOTE: This machine operates with Nespresso Vertuo capsules. Nespresso Original capsules cannot be used in this machine.

NOTE: The factory settings and recommended cup sizes are:
Alto: 14 fl oz. / 414 ml
Coffee: 7.77 fl oz. / 230 ml
Espresso: 1.35 fl oz. / 40 ml

7. Insert a capsule with the dome shape facing downward.

   NOTE: To avoid damaging the machine, use only fresh, unused capsules. Ensure previous capsule has been ejected before inserting a fresh one.
8. Push the lever down to close the machine head.

9. Push the button to start the brewing process. Green light will rotate slowly during the barcode reading and pre-wetting phase.

   NOTE: You can do this even when the machine is still heating up. The coffee will then flow automatically when the machine is ready. The machine will automatically recognize the inserted capsule and select the coffee preparation parameters and cup length defined by Nespresso coffee experts to extract the coffee blend at its best.
10. During the coffee preparation phase coffee will start to flow. GREEN light will rotate quickly during brewing. Steady GREEN light indicates that coffee brewing is ready.

11. To stop the coffee flow early, push the button. Steady GREEN light indicates that coffee brewing is ready.

12. To manually top off your coffee, push the button and push again to stop when desired volume is reached.

13. For a cold brew coffee, ensure you have ice cold water in the water tank or add water and ice into the water tank. Place the dedicated cold brew coffee capsule of your choice in the machine and push the button. Due to a slower infusion process, the beverage will take longer to prepare than hot coffee to ensure all aromas are extracted according to the process defined by our coffee experts.


    Use only fresh drinking water for coffee preparations, including when making ice cubes. Rinse the machine on a regular basis.
    NOTE: The coffee will be ambient when it is brewed and should be stirred when the extraction is finished. For an iced coffee experience, add ice into your coffee.
14. To eject the capsule, open the machine head by pushing the lever up. The machine head will open automatically with an electrical mechanism.


ENERGY SAVING CONCEPT

The machine can be turned 'OFF' at any time, by closing the machine head and then pushing the lever down for 3 seconds. Automatic"OFF" Mode: The machine will turn off automatically after 9 minutes of non-use.

NOTE: The machine head should be in closed position when the machine is turned off.

PROGRAMMING THE WATER VOLUME

1. The programming is specific to each capsule size, Espresso, Coffee or Alto. Cup sizes can be reprogrammed from 0.3 fl oz./10 ml to 17 fl oz./500 ml.

2. Open the machine head by pressing the lever up; Insert the capsule blend you want to program; Close the head by pushing the lever down.
3. Push and hold the button until desired volume is reached.

4. Water volume level is now stored for the capsule size used for the programming.

NOTE: Once a customer-specific volume is programmed by the user, every time that capsule size is inserted in the machine, the preparation will stop at the user-programmed cup size. It is possible to restore cup size volumes, refer to "Reset to factory settings" section.

SPECIAL FUNCTIONS

CLEANING

NOTE: The machine has a predefined cleaning procedure that can be launched at user discretion.

Do not use any strong or abrasive cleaning agent or solvent cleaner. Do not put in a dishwasher. Never immerse the appliance or part of it in water.
Clean the coffee outlet regularly with a damp cloth. Please use only clean tools for cleaning the machine.

1. Rinse and clean the water tank and lid before filling it with fresh potable water. Place the water tank in place.

2. Rinse the cup support. Place a container of at least 13.5 fl oz./0.4 l under the coffee outlet.

3. Open the machine head by pushing the lever up and let the used capsule be ejected, then close the machine. Empty and rinse the capsule container.

4. Push the button 3 times in 2 seconds to start the cleaning cycle. ORANGE light will blink during the cycle. It will take less than 2 minutes before a flow comes out. The cleaning procedure will run automatically for 5 minutes. The procedure consists of 3 cycles of pumping water in, internal cleaning and water flowing from the outlet to complete.

5. The procedure can be stopped at any time by pushing the button. The button will go to steady GREEN light when ready for brewing. To restart the cleaning process, follow the instructions starting at point 4. To brew a coffee, insert a capsule, push the lever down to close the machine and push the button.

RESET TO FACTORY SETTINGS

NOTE: Choose special function by pressing the lever down:
1 time for "Descaling".
2 times for "Emptying the system".
3 times for "Reset to factory settings"

1. Turn the machine "OFF" by pushing the lever down for 3 seconds.

2. To enter Factory settings mode, push the button and the lever down at the same time for 3 seconds. ORANGE steady light indicates entry into the Special Functions menu.

3. Choose function by pressing the lever down: 3 times for "Reset to factory settings"
   NOTE: Choose function within 2 minutes or else the machine will go back to Ready mode. ORANGE light will blink 3 times every 2 seconds, indicating the "Factory reset" function.

4. Push the button to confirm. ORANGE light will blink 3 times in 3 seconds to confirm reset is done and then go to steady GREEN. The machine is now ready to use.

   NOTE: It is possible at any time to exit the Special Functions menu by pushing the button and pressing the lever down at the same time for 3 seconds. GREEN steady light indicates the machine is ready.

EMPTYING THE SYSTEM

BEFORE A PERIOD OF NON-USE, FOR FROST PROTECTION OR BEFORE A REPAIR

1. Empty the water tank and put it in place.

2. Open the machine head and let the used capsule be ejected. Close the machine. Empty the capsule container.

3. Turn the machine "OFF" by pushing the lever down for 3 seconds.

4. Place a container under the coffee outlet. To enter "Emptying the system" mode push the button and the lever down at the same time for 3 seconds. ORANGE steady light indicates entry into the Special functions menu.

5. Choose function by pressing the lever down: 2 times for "Emptying the system"
   NOTE: Choose function within 2 minutes or else the machine will go back to Ready mode. ORANGE light will blink 2 times every 2 seconds, indicating the "Emptying the system" function.

6. Push the button. The ORANGE lights will blink during the entire procedure. The machine turns "OFF" automatically when machine is empty.


Caution should be exercised as the machine evacuates remaining liquids using heat. Small quantities of steam may emit from the machine.

NOTE: It is possible at any time to exit the Special Functions menu by pushing the button and pressing the lever down at the same time for 3 seconds. GREEN steady light indicates the machine is ready.

DESCALING

ASSISTANCE VIDEOS ARE AVAILABLE ON WWW.NESPRESSO.COM - VISIT THE "MACHINES" SECTION/

NOTE: Duration: Approximately 20 minutes.

Read the important safeguards on the descaling package. The descaling solution can be harmful. Avoid contact with eyes, skin and surfaces. Never use any product other than the Nespresso descaling kit available through the Nespresso Club to avoid damage to your machine. For any additional questions you may have regarding descaling, please contact your Nespresso Club.

1. Turn the machine "ON" by pushing the button.

2. Open the machine head by pushing the lever up and let the used capsule be ejected. Close the machine by pushing the lever down.

3. Turn the machine "OFF" by pushing the lever down for 3 seconds.

4. Empty the cup support and the used capsule container.

5. Fill the water tank with 1 unit of Nespresso descaling liquid and add minimum 17 fl oz. / 0.5 l of water.

6. To enter Descaling mode, push the button and the lever down at the same time for 3 seconds. ORANGE steady light indicates entry into the Special Functions menu.


7. Choose function by pressing the lever down: 1 time for "Descaling"

   NOTE: Choose function within 2 minutes or else the machine will go back to Ready mode. ORANGE light will blink 1 time every 2 seconds, indicating the "Descaling" function.
8. Place a recipient (minimum volume: 20 fl oz./0.6 l) under the coffee outlet.

9. To start descaling, push the button. The machine will stop automatically when complete. ORANGE light will blink during the entire descaling process.

10. Empty, clean and rinse the water tank and cup support thoroughly.

11. Fill the water tank with fresh potable water and put it back in place on the machine.


12. When ready, push the button to rinse the machine. Machine will stop automatically when complete. ORANGE light blinking once every 2 seconds confirms the descaling process is completed. The procedure can be stopped at any time by pushing the button.

13. To exit descaling mode, press the button and the lever down at the same time for 3 seconds.

14. GREEN steady light when ready.
15. Descaling is completed. Allow the machine to dry for 10 minutes before using it.
16. The machine is now ready for use.

NOTE: This machine is equipped with a descaling alert: GREEN and RED steady light. Machine can only be operated to make coffee a few more times once the alert appears before descaling becomes mandatory. If the machine is completely scaled, the descaling program may not function and the machine will stop and blink. Pause the program in this case for several minutes, allowing the descaling agent to penetrate the scale build-up, then push the button again to restart the descaling.

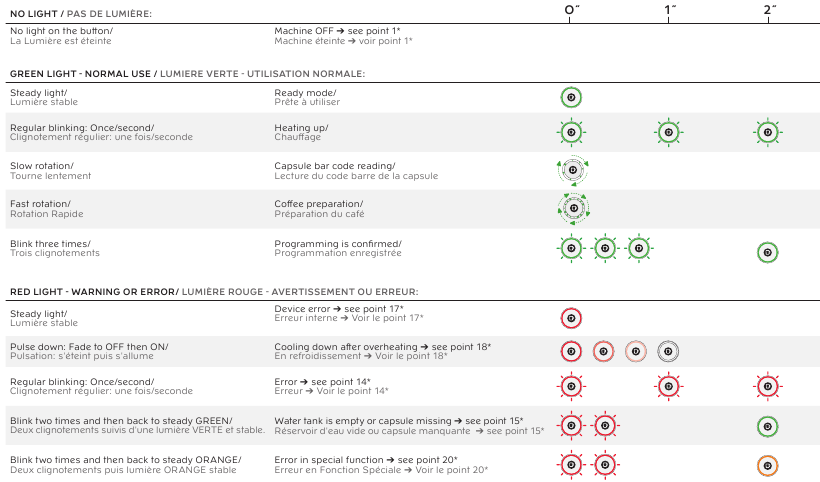

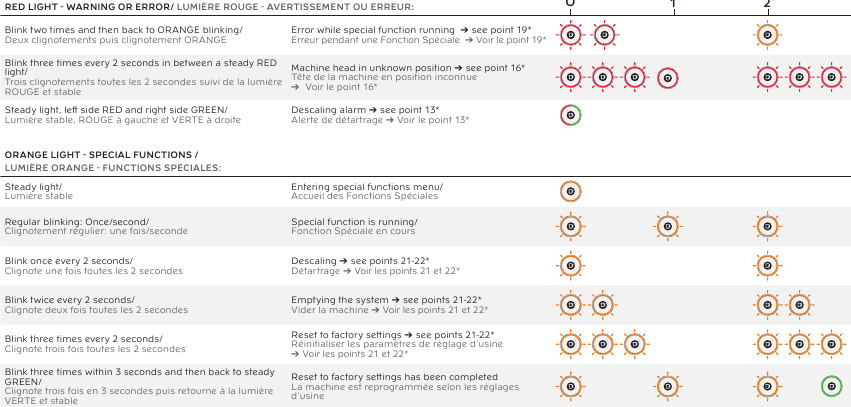

BUTTON INDICATORS/BLINKING SUMMARY

TROUBLESHOOTING

ASSISTANCE VIDEOS ARE AVAILABLE ON WWW.NESPRESSO.COM - VISIT THE "MACHINES" SECTION

GREEN LIGHT

	10	The machine does not start and has GREEN steady lights.	Check the machine head is properly closed. If you want to brew an Alto, Coffee or Espresso, check that a fresh capsule is inserted in correct position, that the machine head is properly closed and push the button to start.
	11	GREEN light blinking continuously and machine not running.	The machine is heating up and it will take maximum one minute to be ready.
	12	GREEN light turning while machine is running.	This indicates the machine is working properly.

RED LIGHT

	13	Half GREEN and Half RED steady light.	Descaling needed: Machine can be operated when alert appears only a few times after this alert before descaling becomes necessary. See paragraph on "Descaling".
	14	RED light blinking continuously and the machine head stops moving.	Remove any obstacle, empty the capsule container if necessary, and then open or close the machine head depending on position.
	15	The machine does not start and RED light blinking 2 times and goes back to Steady GREEN.	Fill the water tank and push button to start. Open the machine head to eject capsule. Check that a fresh capsule is inserted in correct position, that the machine head is closed and push the button to start.
	16	The machine does not start and RED light blinking 3 times every 2 seconds and goes back to Steady RED.	Press the lever up and wait until the machine head stops, release any obstacle if applicable, empty the capsule container if necessary, and then press the lever down to close the machine head.
	17	RED steady light and the machine is NOT running.	Turn the machine OFF, unplug the power cord, wait for 15 minutes for the machine to cool down. Plug the power cord and turn the machine ON by pressing the lever down. Machine is heating up and will go to steady GREEN when ready. If problem persists, call the Nespresso Club.
	18	RED light fading out.	Machine is cooling down and will go to steady green when ready.
	19	1RED light flashing twice and goes back to ORANGE blinking.	Special function running; open the machine head and let the capsule be ejected. Then restart the function by pressing the button. If in the "Emptying the system" mode, remove the water tank.
	20	RED light flashing twice and goes back to steady ORANGE.	Special Functions menu: Choose desired special function by pressing lever down.

ORANGE LIGHT

	21	ORANGE light blinking continuously.	Special function is running. Refer to applicable section; Descaling/ Cleaning/ Emptying the system/ Reset to factory settings.
	22	Flashing ORANGE lights.	Special function is in selection mode. Refer to applicable paragraph; Descaling/ Cleaning/ Emptying the system/ Reset to factory settings.

IMPORTANT SAFEGUARDS

These instructions are part of the appliance. Read all instructions and safety instructions before operating the appliance.

Use of controls, adjustments or performance of procedures other than those specified here in may result in hazardous radiation exposure.

	Is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
	Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
	Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
	Is used to provide important information not related to personal injury. When you see this sign, please take note of the advice for the correct and safe use of your appliance.

When using electrical appliances, basic important safeguards should always be followed, including the following:

• Read all instructions.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• The appliance is intended to prepare beverages according to these instructions.
• This appliance should only be used for intended purpose.
• This appliance is only meant for indoor use, under non-extreme temperature conditions.
• The appliance must not be used, cleaned, or maintained by children under 8 years of age unless supervised, instructed by an adult on how to use the appliance safely, and fully informed regarding the dangers involved.
• This appliance may be used by persons with reduced physical, sensory or mental capabilities, or whose experience or knowledge is not sufficient, provided they are supervised or have received instruction to use the device safely and understand the dangers.
• Any servicing other than cleaning and user maintenance should be performed by an authorized service representative.

Avoid risk of fatal electrical shock and fire to protect against fire, electric shock and injury to persons

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons.
• If the cord is damaged, do not operate the appliance. Only return the appliance to the Nespresso Club or to a Nespresso authorized representative.
• To disconnect, turn machine "OFF", then remove the plug from the outlet.
• To avoid hazardous damage, never place the appliance on or beside hot surfaces such as radiators, stoves, ovens, gas burners, open flames, or similar.
• Do not touch hot surfaces. Use handles or knobs.
• Disconnect from outlet before cleaning. Allow to cool before adding or removing parts, and before cleaning the appliance.
• Never immerse the cord, plug, appliance or any part of it in water or any other liquid.
• Electricity and water together are dangerous and can lead to fatal electric shocks.
• Do not put anything else than specified capsules into any openings, doing so may cause fire or electric shock!
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury.

Avoid possible harm when operating the appliance

• Risk of scalding by hot liquids. If the machine is forced open hot liquids and coffee grounds may splash. Always lock the system completely and never open it during operation.
• Be careful, capsule is hot. Risk of scalding. If a capsule is blocked in the capsule compartment, turn the machine off and unplug it before any operation. Call the Nespresso Club or Nespresso authorized representative for assistance.

SAVE THESE INSTRUCTIONS
Pass them on to any subsequent user. This Instruction Manual is also available as a PDF file at nespresso.com

OTHER SAFEGUARDS

NOTE: This appliance contains a class-1 laser product.

When using electrical appliances, important safeguards should always be followed, including the following:

• The important safeguards are part of the appliance. Read the important safeguards provided with the appliance carefully prior to first use. Keep them in a place where you can find and refer to them in the future.
• Protect the appliance from direct sunlight, water splash and humidity.
• This appliance is designed for domestic use only.
• Close supervision is necessary when the appliance is used by or near children.
• Children shall not play with the appliance.
• The manufacturer accepts no responsibility for and the warranty will not apply to any commercial use, inappropriate handling or use of the appliance, damage resulting from use for other purposes, faulty operation, non-professional repairs or failure to comply with the instructions.

Avoid risk of fatal electrical shock and fire to protect against fire, electric shock and injury to persons

• In case of emergency: immediately remove the plug from the power outlet. Exception: do not remove plug in case of pinching during machine head movement, when automatic reverse mechanism will operate.
• Only plug the appliance into suitable, easily accessible, grounded outlets. Make sure that the voltage of the power source is the same as that specified on the rating plate. The use of an incorrect voltage or frequency of electricity voids the warranty.
• The appliance must only be connected after installation.
• Do not pull the cord over sharp edges, clamp it or allow it to hang down.
• Keep the cord away from heat and moisture.
• If an extension lead is required, use only a grounded power cord with a conductor cross-section with matching input 16 AWG (1.3 mm²).
• Always place the appliance on a horizontal, stable, hard, even surface that does not allow for water accumulation under the machine.
• The surface must be resistant to heat and fluids, like water, coffee, descaler or similar.
• Disconnect the appliance from the power outlet when not in use for a long period of time.
• Disconnect by pulling out the plug; do not pull on the cord itself to avoid damage.
• Never touch the cord with wet hands.
• Never put the appliance or part of it in a dishwasher.
• Do not open the appliance. Hazardous voltage inside!
• Do not dismantle the appliance.

Avoid possible harm when operating the appliance

• Never leave the appliance unattended during operation.
• Do not use the appliance if it is damaged or not operating perfectly. Immediately remove the plug from the power outlet.
• Contact the Nespresso Club or Nespresso authorized representative for examination, repair or adjustment.
• A damaged appliance can cause electric shocks, burns and fire.
• Do not put fingers under coffee outlet; risk of scalding.
• Do not insert fingers into capsule compartment when machine head is closing; risk of injury.
• Do not put fingers into the capsule compartment or capsule shaft; risk of injury!
• Water could flow around a capsule when not perforated by the blades and damage the appliance.
• Be careful not to injure yourself on sharp points or trap your fingers when reaching inside the machine.
• Beware of hot liquids when reaching inside the machine.
• Never use a damaged or deformed capsule.
• Always fill the water tank with fresh potable water.
• Do not overfill water tank.
• Empty water tank if the appliance will not be used for an extended time (holidays, etc.).
• Replace water in water tank when the appliance is not operated during a weekend or a similar period of time.
• Do not use the appliance without a cup placed at the suitable cup support level and ensure the cup support is in place after any usage, to avoid spilling any liquid on surrounding surfaces.
• Do not use any strong cleaning agent or solvent cleaner.
• Use a damp cloth and mild cleaning agent to clean the surface of the appliance.
• Do not use a steam or pressure cleaner to clean the appliance. This will damage the appliance and may create a life-threatening hazard.
• Do not pour water or other liquids into the brewing unit.
• Keep appliance, capsules and accessories out of reach of children.
• This appliance is designed for Nespresso Vertuo coffee capsules available exclusively through the Nespresso Club or your Nespresso authorized representative.
• All Nespresso appliances pass stringent controls.
• Reliability tests under practical conditions are randomly performed on selected units. Some units can therefore show traces of previous use.
• Nespresso reserves the right to change instructions without prior notice.

Short cord instructions

• Use the power cord supplied with the device in an unmodified form. It is important for user safety that the appliance is only used with a suitably grounded electrical supply.
  1. A short power supply cord or detachable power supply cord is to be provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
  2. Extension cords are available and may be used if care is exercised in their use.
  3. If a long detachable power cord or extension cord is used:
     1. The marked electrical rating or the detachable power cord or extension should be at least as great as the electrical rating of the appliance.
     2. The appliance is grounded and only grounded extension cord should be used (type 3-wire cord).
     3. The longer cord should be arranged so that it will not dangle over the countertop or tabletop, where it can be pulled on by children or tripped over.
• The appliance has a grounded plug (two blades and one round pin).
• To reduce the risk of electric shock, this plug is intended to fit into a grounded outlet only one way.
• If the plug does not fit fully into the outlet, reverse the plug.
• If it still does not fit, contact a qualified electrician.
• Do not attempt to modify the plug in any way.

Descaling

• Nespresso descaling agent, when used correctly, helps to ensure the proper functioning of your machine over its lifetime and that your coffee experience is as perfect as on the first day. For instructions on how to descale, consult the section "Descaling" in this user manual.

nespresso.com

Documents / Resources

References

• Coffee & Espresso capsules and machines | Nespresso
• Coffee & Espresso capsules and machines | Nespresso

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download DeLonghi VertuoPlus Deluxe ENV155TCA - Espresso Machine Manual
