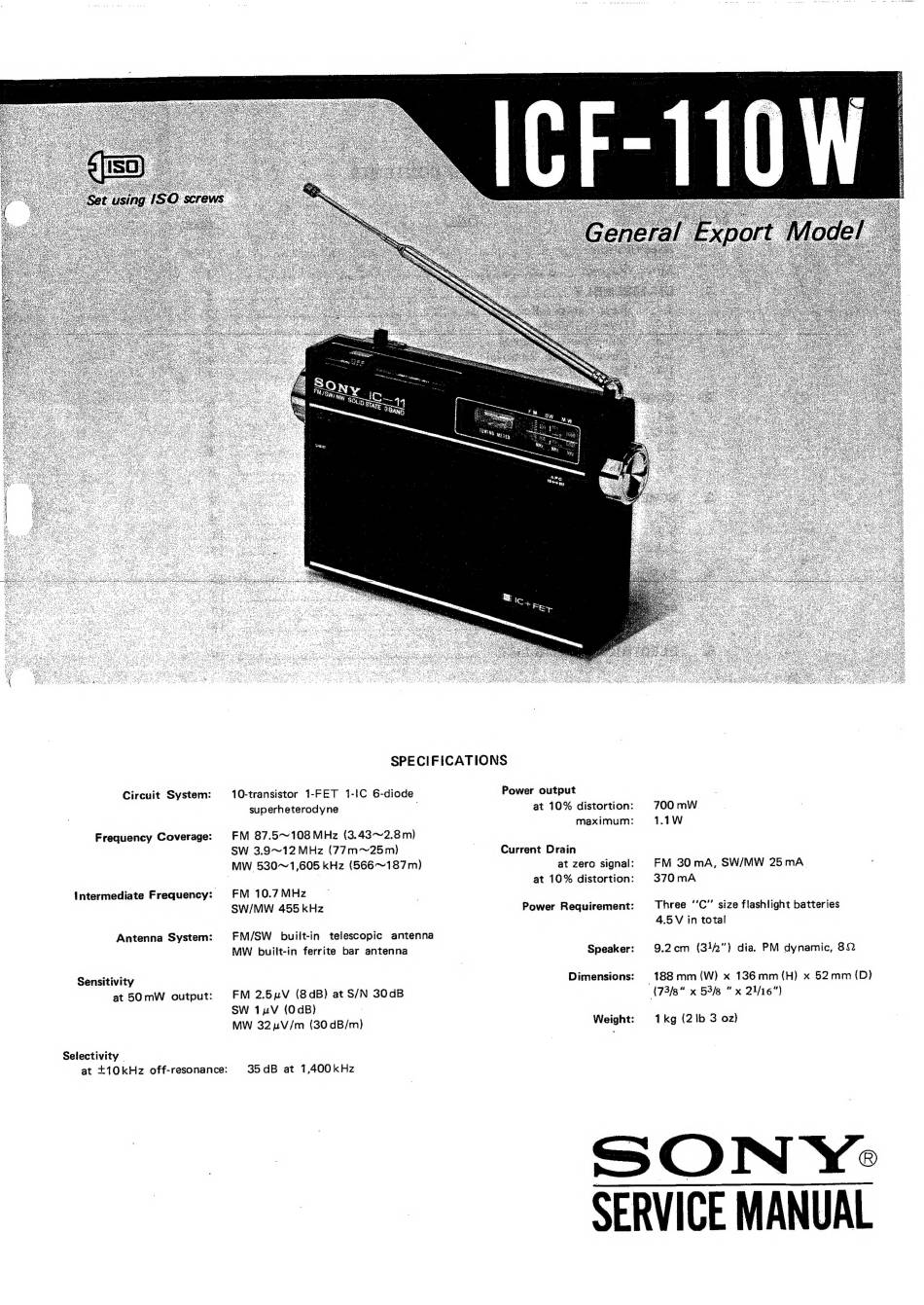

Sony ICF-110W Service Manual

Circuit System:
Frequency Coverage:
Intermediate Frequency:
Antenna System:
Sensitivity
at 50 mW output:
Selectivity |
at £10kHz off-resonance:
SPECIFICATIONS
10-transistor 1-FET 1-IC 6-diode
superheterodyne .
FM 87.5~108 MHz (3.43~2.8m)
SW 3.9~12 MHz (77m~25m)
MW 530~1,605 kHz (566~187m)
FM 10.7MHz ©
SW/MW 455 kHz
FM/SW built-in telescopic antenna
MW built-in ferrite bar antenna
FM 2.5uV (8dB) at S/N 30dB
SW inv (OdB)
MW 32uV/m (30dB/m)
35 dB at 1,400kHz
Power output
at 10% distortion: 700 mW
Current Drain
at zero signal
maximum: 1.1W
FM 30 mA, SW/MW 25 mA
at 10% distortion: 370mA
Power Requirement: Three ''C" size flashlight batteries
4.5V in total
Speaker: 9.2cm (312") dia. PM dynamic, 82
Dimensions: 188mm (W) x 136mm (H) x 52 mm (D)
(73/3" x 53/8 "x 21/16")
Weight: 1kg (2 lb 3 oz)
.
