Rack-Mounted | USB & Ethernet Control
Multi-Channel Attenuator
50Ω
1 to 6000 MHz

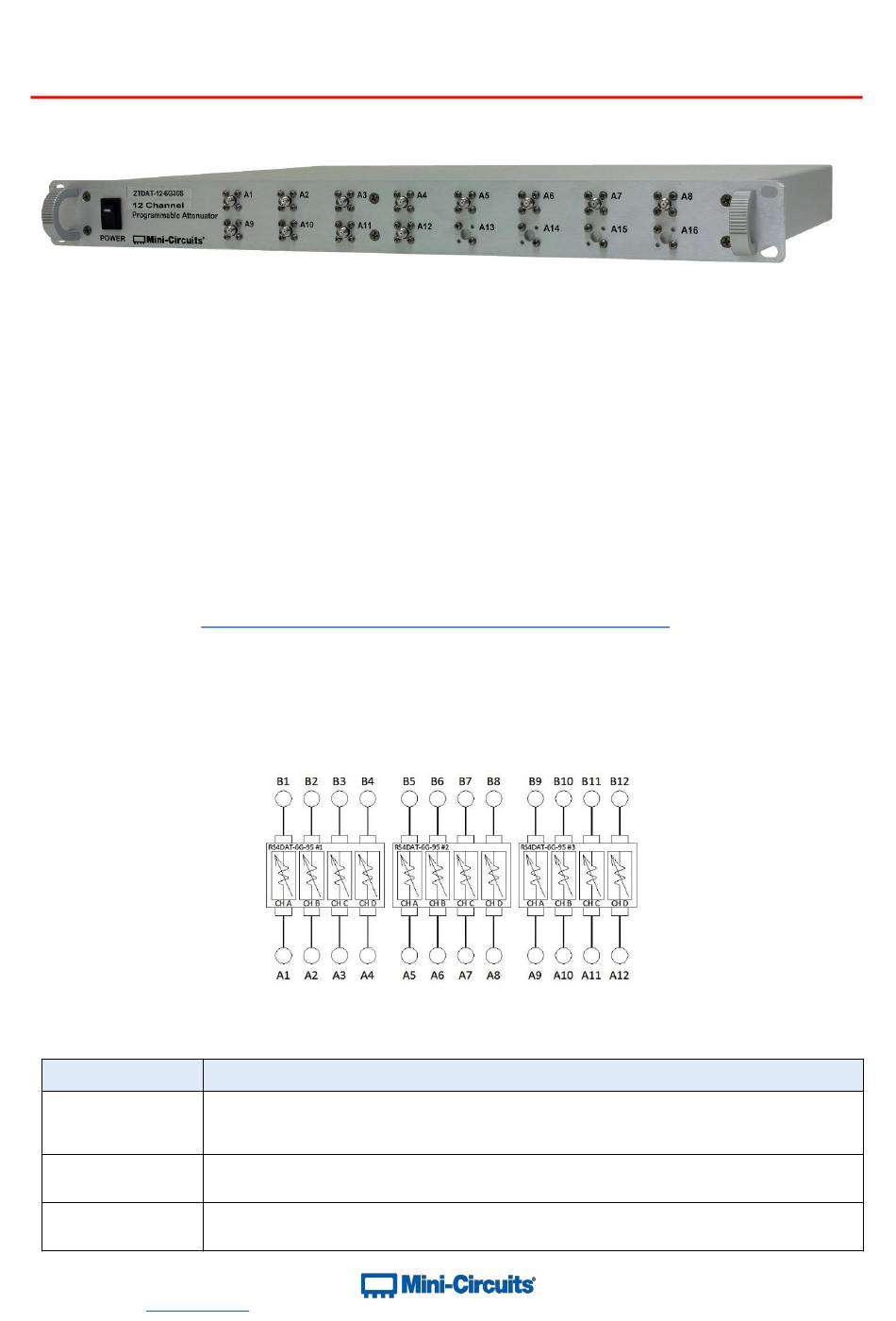

Product Overview
Mini-Circuits' ZTDAT series multi-channel programmable attenuator systems are ideal for a wide range
of signal level control applications including transmission loss simulation, signal fading and MIMO
measurements.
The 1-6000 MHz operating bandwidth incorporates most of the common
communications bands, supporting applications in LTE, 4G / 5G, IoT, Bluetooth, Zigbee, WiFi and many
more.

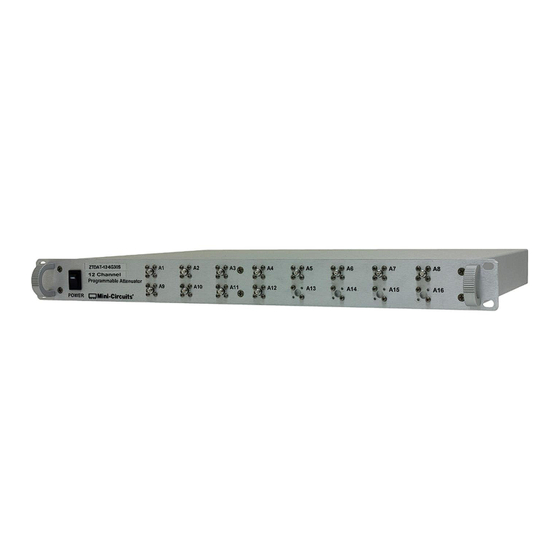

Each of the 12 independently controlled attenuator channels within ZTDAT-12-6G30S provides 0 to 30
dB attenuation with more than 100 dB isolation between channels. The system is housed in a compact,
1U height, 19-inch rack chassis, with SMA connectors on the front and rear panels.
The system can be controlled via USB or Ethernet (supporting SSH, HTTP & Telnet protocols). Full
software support is provided, including our user-friendly GUI application for Windows and a full API with
programming instructions for Windows and Linux environments (both 32-bit and 64-bit systems). The full
software and documentation package can be downloaded from our website at:
Mini-Circuits' novel daisy-chaining interface allows multiple ZTDAT attenuator systems to be cascaded
together into a Master / Slave chain.
attenuator channel (from 8 to several hundred) controlled through a single USB or Ethernet connection
and software interface.
Key Features
Feature
Integrated attenuator
system
Compact package
Ethernet / LAN
Control
2 (14-Jul-21)
www.minicircuits.com
https://www.minicircuits.com/softwaredownload/multiatt.html.
The full chain effectively becomes one system with every
Independent control of large numbers of attenuator channels with single power supply and control
interface; ideal for testing receiver sensitivity, device / base-station hand-over, interference effects
and many more.
The compact 1U height chassis minimises rack space requirements.
Remote control from any computer or device with a network connection (SSH, HTTP or Telnet
protocols).
| PO Box 35166, Brooklyn, NY 11235-0003, USA | (+1) 718-934-4500 | testsolutions@minicircuits.com
ZTDAT-12-6G30S
Advantages
Page 1 of 9
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mini-Circuits ZTDAT-12-6G30S
Summary of Contents for Mini-Circuits ZTDAT-12-6G30S
- Page 1 LTE, 4G / 5G, IoT, Bluetooth, Zigbee, WiFi and many more. Each of the 12 independently controlled attenuator channels within ZTDAT-12-6G30S provides 0 to 30 dB attenuation with more than 100 dB isolation between channels. The system is housed in a compact, 1U height, 19-inch rack chassis, with SMA connectors on the front and rear panels.
-
Page 2: Mechanical Specifications
Rack-Mounted | USB & Ethernet Control Multi-Channel Attenuator ZTDAT-12-6G30S Mechanical Specifications 19” (W) x 1U (H) x 13” (D) Dimensions Case Drawing 99-01-2519 • Aluminum (with protective coating to prevent corrosion) Case Material Panel Connector Quantity Port Labels RF Connectors... -
Page 3: Typical Performance Data
Rack-Mounted | USB & Ethernet Control Multi-Channel Attenuator ZTDAT-12-6G30S Typical Performance Data Insertion Loss & Attenuation A1 to B1_0dB A1 to B1_10dB A1 to B1_15dB A1 to B1_20dB A1 to B1_25dB A1 to B1_30dB A1 to B1_5dB 1000 2000 3000... - Page 4 Rack-Mounted | USB & Ethernet Control Multi-Channel Attenuator ZTDAT-12-6G30S Typical Performance Data Input Return Loss (Port A1) A1 to B1_0dB A1 to B1_10dB A1 to B1_15dB A1 to B1_20dB A1 to B1_25dB A1 to B1_30dB A1 to B1_5dB 1000 2000...
-
Page 5: Outline Drawing
Rack-Mounted | USB & Ethernet Control Multi-Channel Attenuator ZTDAT-12-6G30S Outline Drawing 2 (14-Jul-21) Page 5 of 9 www.minicircuits.com | PO Box 35166, Brooklyn, NY 11235-0003, USA | (+1) 718-934-4500 | testsolutions@minicircuits.com... -
Page 6: Software Specifications
Control Min Communication Time 400 µs typ • Mini-Circuits’ Universal GUI for USB & LAN control (Windows only) • ASCII / SCPI command syntax for LAN programming (all OS) Software • ActiveX / .Net DLL APIs for USB programming (Windows only) Support •... - Page 7 Rack-Mounted | USB & Ethernet Control Multi-Channel Attenuator ZTDAT-12-6G30S Graphical User Interface (GUI) for Windows - Key Features • Connect via USB or Ethernet • Run GUI in “demo mode” to evaluate software without a hardware connection • View and set all attenuator channels independently or in groups •...
- Page 8 Rack-Mounted | USB & Ethernet Control Multi-Channel Attenuator ZTDAT-12-6G30S Daisy-Chain Control of ZTDAT Systems Multiple ZTDAT attenuator racks can be combined to form much larger programmable attenuator systems by daisy-chaining the serial control interfaces. This allows large numbers of attenuator channels to be controlled through a single USB or Ethernet connection and software interface.
-
Page 9: Ordering Information
Rack-Mounted | USB & Ethernet Control Multi-Channel Attenuator ZTDAT-12-6G30S Ordering Information Please contact Mini-Circuits’ Test Solutions department for price and availability: testsolutions@minicircuits.com Included Accessories Model Name Quantity Description Cable Model Region CBL-3W-xx* AC power cord (IEC C13 connector to local plug)
