Mini-Circuits RUDAT Series User Manual

Usb, rs232, spi & ethernet programable attenuators
Hide thumbs Also See for RUDAT Series:
Table of Contents

Advertisement

Quick Links

AN-49-005 Rev.: D (August 7, 2016) M156027 (R90553) File: AN-49-005(D).doc
This document and its contents are the property of Mini-Circuits

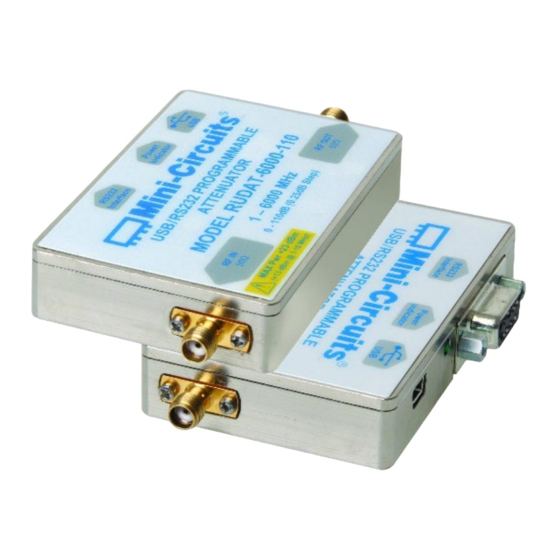

User Guide
USB, RS232, SPI & Ethernet
Programable Attenuators
RS232 & USB control,
Input Impedance: 50 Ω
Ethernet & USB control,
Input Impedance: 50 Ω

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RUDAT Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mini-Circuits RUDAT Series

Summary of Contents for Mini-Circuits RUDAT Series

  • Page 1 USB, RS232, SPI & Ethernet Programable Attenuators RS232 & USB control, Input Impedance: 50 Ω Ethernet & USB control, Input Impedance: 50 Ω AN-49-005 Rev.: D (August 7, 2016) M156027 (R90553) File: AN-49-005(D).doc This document and its contents are the property of Mini-Circuits...
